Deye Us Version Max. 10PCS Parallel Sun-30K-Sg01HP3-Us-Bm4 High Voltage 3 Phase 30kw Hybrid Solar Inverter
Deye Us Version Max. 10PCS Parallel Sun-30K-Sg01HP3-Us-Bm4 High Voltage 3 Phase 30kw Hybrid Solar Inverter
Deye Us Version Max. 10PCS Parallel Sun-30K-Sg01HP3-Us-Bm4 High Voltage 3 Phase 30kw Hybrid Solar Inverter
Deye Us Version Max. 10PCS Parallel Sun-30K-Sg01HP3-Us-Bm4 High Voltage 3 Phase 30kw Hybrid Solar Inverter
Deye Us Version Max. 10PCS Parallel Sun-30K-Sg01HP3-Us-Bm4 High Voltage 3 Phase 30kw Hybrid Solar Inverter
1 / 5
Deye Us Version Max. 10PCS Parallel Sun-30K-Sg01HP3-Us-Bm4 High Voltage 3 Phase 30kw Hybrid Solar Inverter
Deye Us Version Max. 10PCS Parallel Sun-30K-Sg01HP3-Us-Bm4 High Voltage 3 Phase 30kw Hybrid Solar Inverter
Deye Us Version Max. 10PCS Parallel Sun-30K-Sg01HP3-Us-Bm4 High Voltage 3 Phase 30kw Hybrid Solar Inverter
Deye Us Version Max. 10PCS Parallel Sun-30K-Sg01HP3-Us-Bm4 High Voltage 3 Phase 30kw Hybrid Solar Inverter
Deye Us Version Max. 10PCS Parallel Sun-30K-Sg01HP3-Us-Bm4 High Voltage 3 Phase 30kw Hybrid Solar Inverter

Deye Us Version Max. 10PCS Parallel Sun-30K-Sg01HP3-Us-Bm4 High Voltage 3 Phase 30kw Hybrid Solar Inverter

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Information

Model NO.SUN-30K-SG01HP3-US-BM4
PhaseThree Phase
Output Power30kW
Inverter Efficiency97.60%
Battery TypeLithium-Ion
Battery Voltage160~500V
Protection RatingTYPE 3R / IP65
Weight75kg

Product Description

Deye US Version Max. 10pcs Parallel SUN-30K-SG01HP3-US-BM4 High Voltage 3 Phase 30kw Hybrid Solar Inverter

Deye 30kw Hybrid Inverter

Technical Parameters

Battery Input Data
Battery Type Lithium-ion
Voltage Range (V) 160-500
Max. Charge/Discharge (A) 50+50
PV String Input Data
Max. DC Input Power (W) 26000 32500 39000
MPPT Trackers 3 3 4
AC Output Data
Rated Output Power (W) 20000 25000 30000
Output Voltage 60Hz; 3L+N+PE 120/208Vac

Packaging & Project Case

Packaging Detail

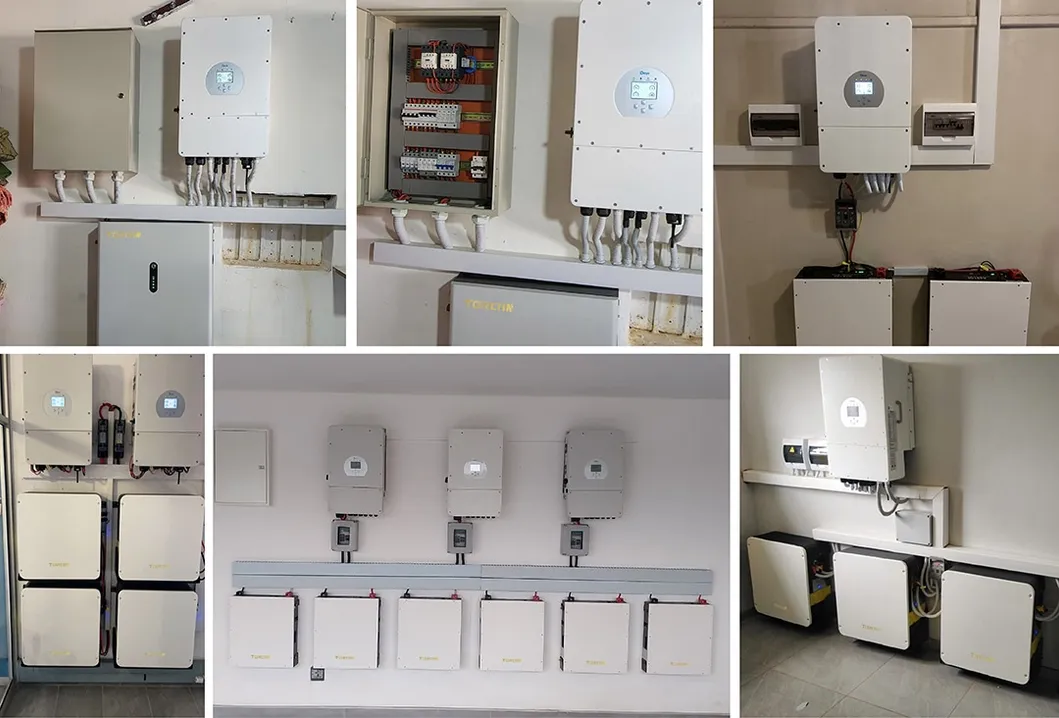

Project Case

Frequently Asked Questions

How many units can be connected in parallel?
The Deye SUN-30K series supports up to 10 units in parallel for both on-grid and off-grid operations.
What is the battery voltage requirement?
This is a high-voltage hybrid inverter compatible with lithium-ion batteries ranging from 160V to 500V.
What is the maximum efficiency of this inverter?
The inverter achieves a maximum efficiency of 97.6% and an MPPT efficiency of 99.9%.
Does it support unbalanced three-phase output?
Yes, it supports 100% unbalanced output for each phase, enhancing system flexibility.
What is the cooling method used?
The system utilizes smart cooling technology to maintain optimal operating temperatures between -40°C and 60°C.
