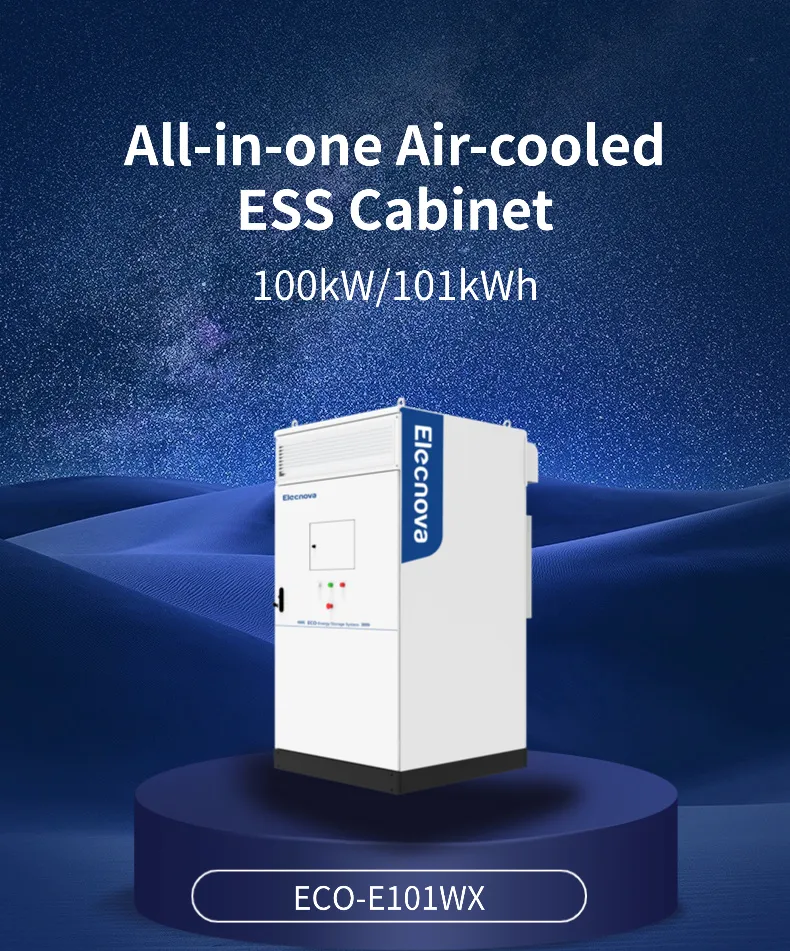

Model: ECO-E101WX

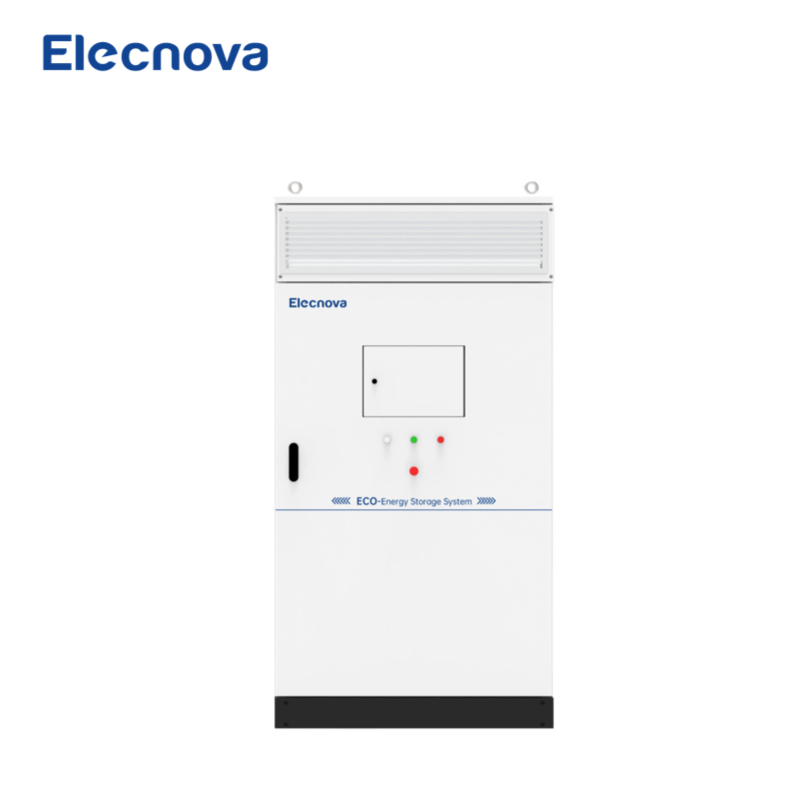

The all-in-one air-cooled ESS cabinet integrates long-life battery, efficient balancing BMS, high-performance PCS, active safety system, smart distribution and HVAC into one cabinet, enabling long-term operation with safety, stability and reliability. Through AC side parallel connection, it achieves agile deployment of ESS power station with flexible capacity expansion.

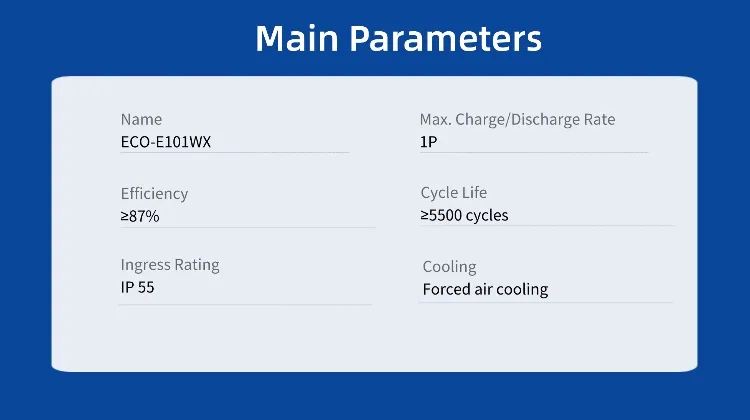

| DC Side Specifications | |
|---|---|
| Cell Type | LFP / 120 Ah |
| System Configuration | 101 kWh / 1P264S |
| Rated DC Voltage | 844.8 V |
| Max. Charge/Discharge Rate | 1 P |
| AC Side Specifications | |
| Rated Output Power | 100kW |
| Rated AC Voltage | 230 / 400 V |
| Grid Type | 3W+PE / 3W+N+PE |
| THDi | ≤3% |
| General Information | |
| Round Trip Efficiency | ≥ 87% |
| Ingress Rating | IP55 |
| Operating Temperature | -25ºC~55ºC |
| Weight | 2,000 kg |

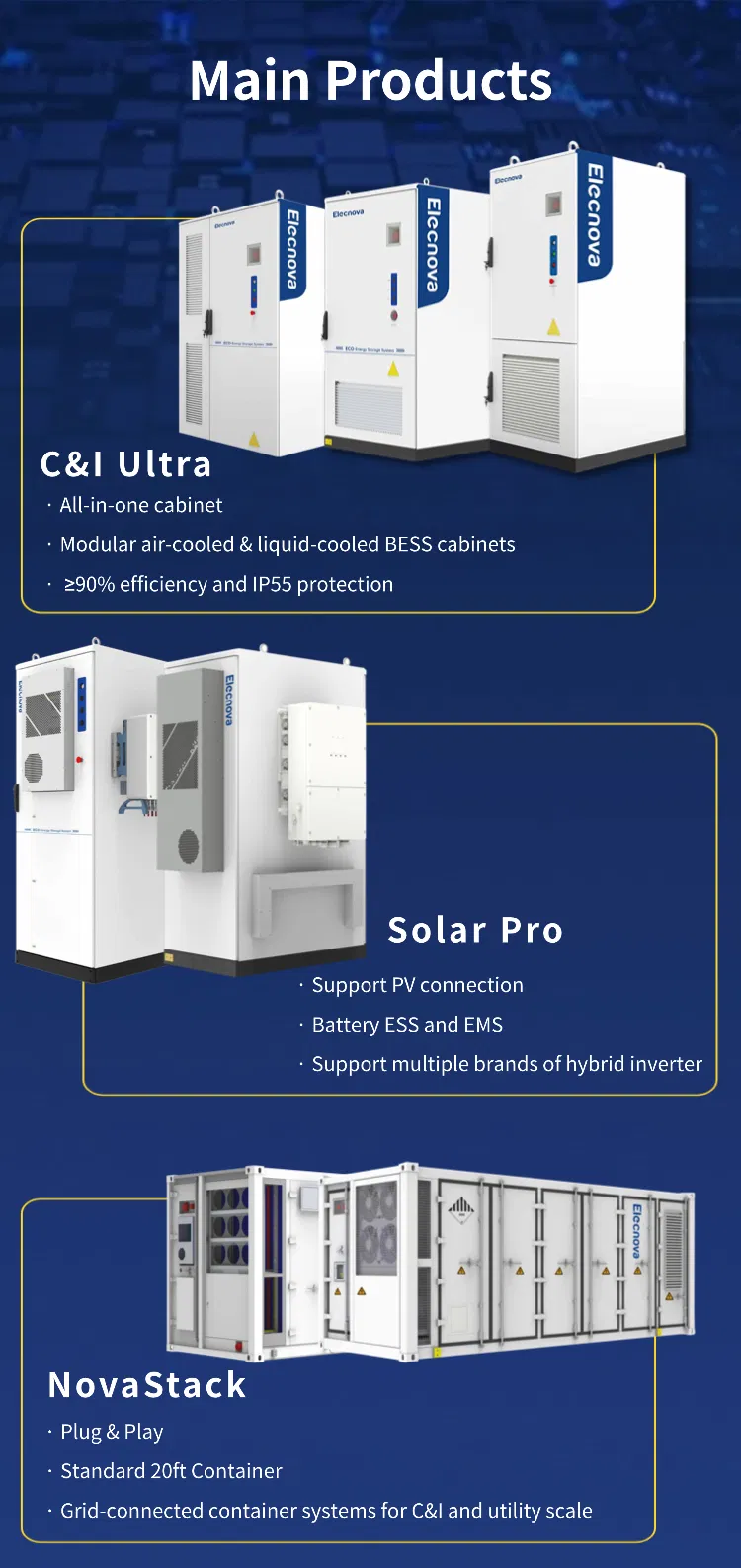

C&I Ultra: All-in-one modular BESS cabinets (air-cooled/liquid-cooled) with ≥90% efficiency and IP55 protection.
Solar Pro: Seamlessly integrates with PV systems, featuring battery ESS, EMS, and hybrid inverter compatibility.
NovaStack: Plug-and-play 20ft container systems, designed for utility-scale energy storage projects.

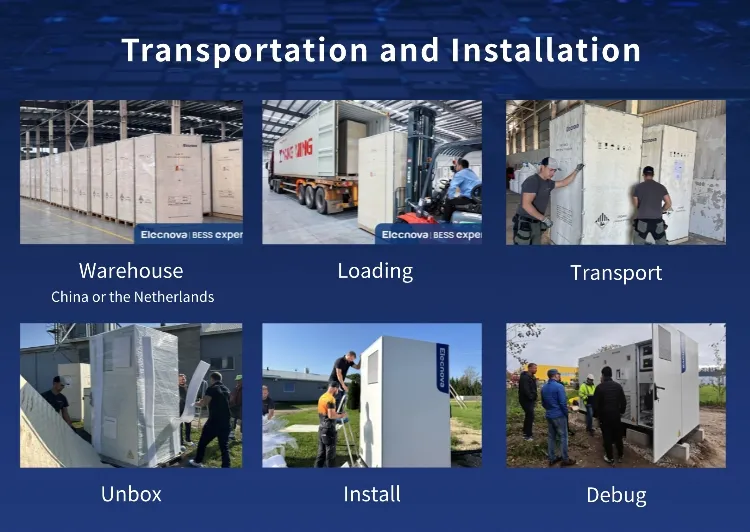

Our systematic delivery process includes specialized warehousing, safe loading, worldwide transport, professional unboxing, precision installation, and technical debugging. We provide an industry-leading max 5+5 years warranty and comprehensive technical guidance.

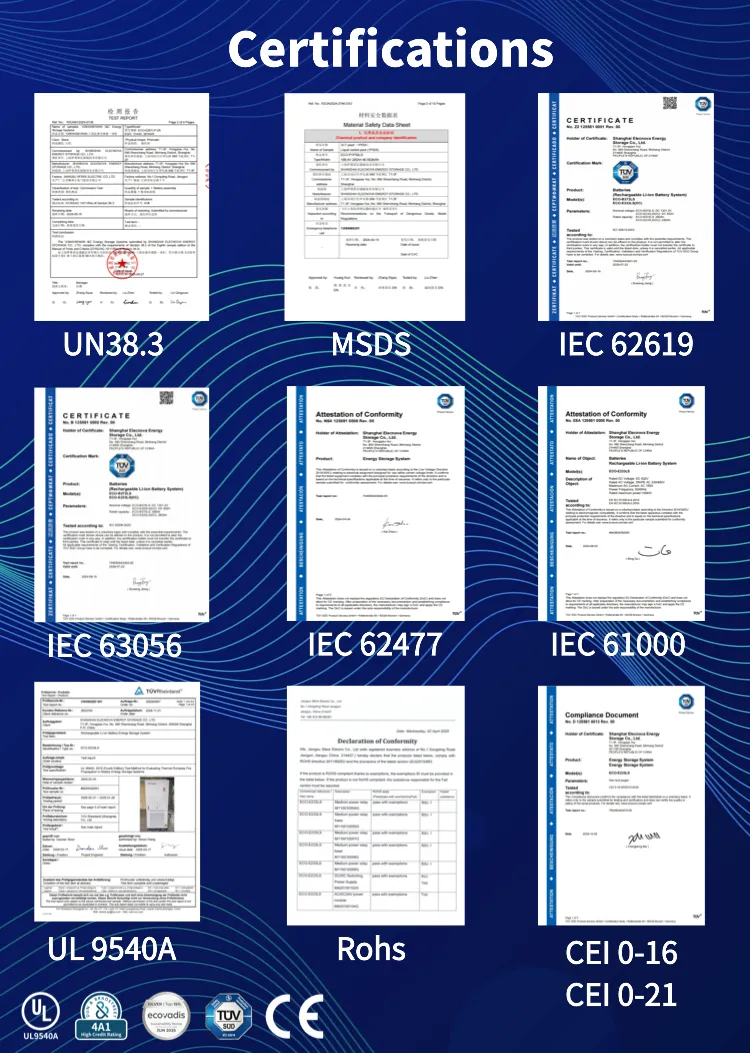

With a production capacity of 2GWh and automated PACK production lines, our facilities are CNAS laboratory certified. We comply with international standards including IEC 62619, IEC 63056, CE, and UL 9540A.
