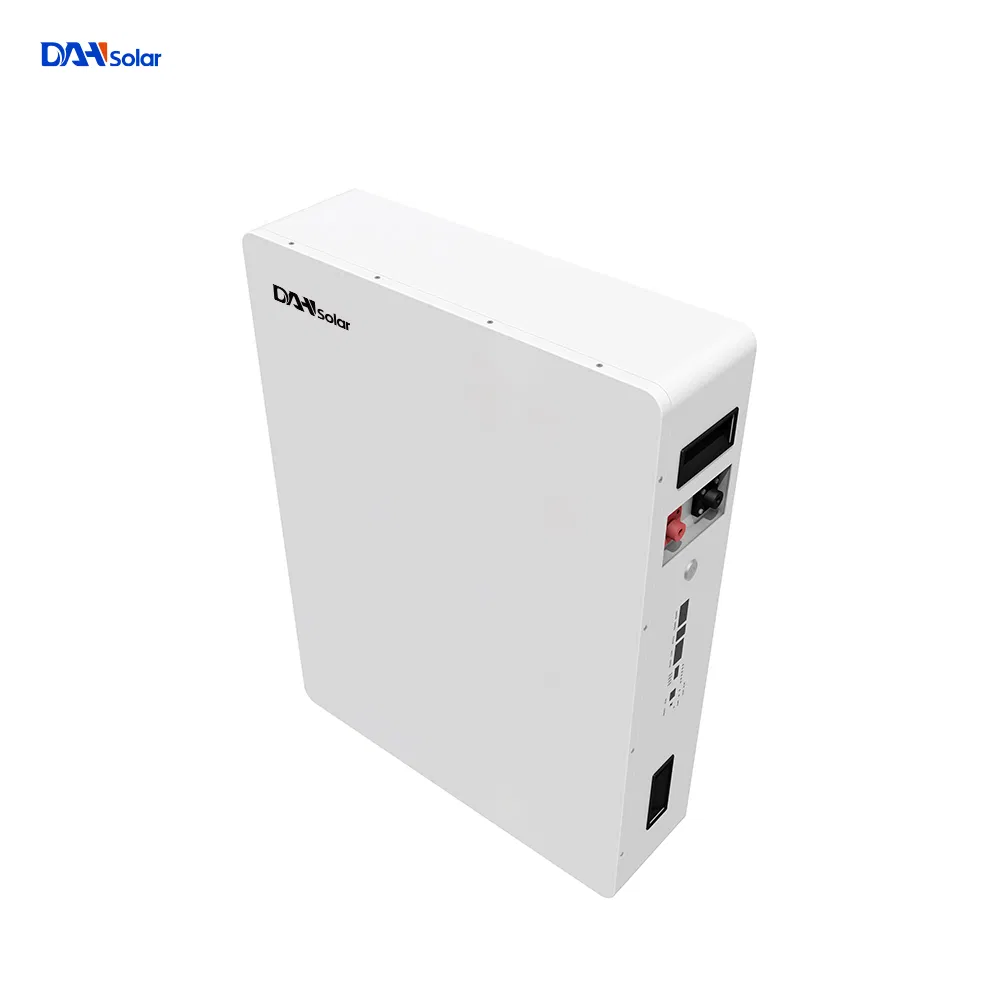

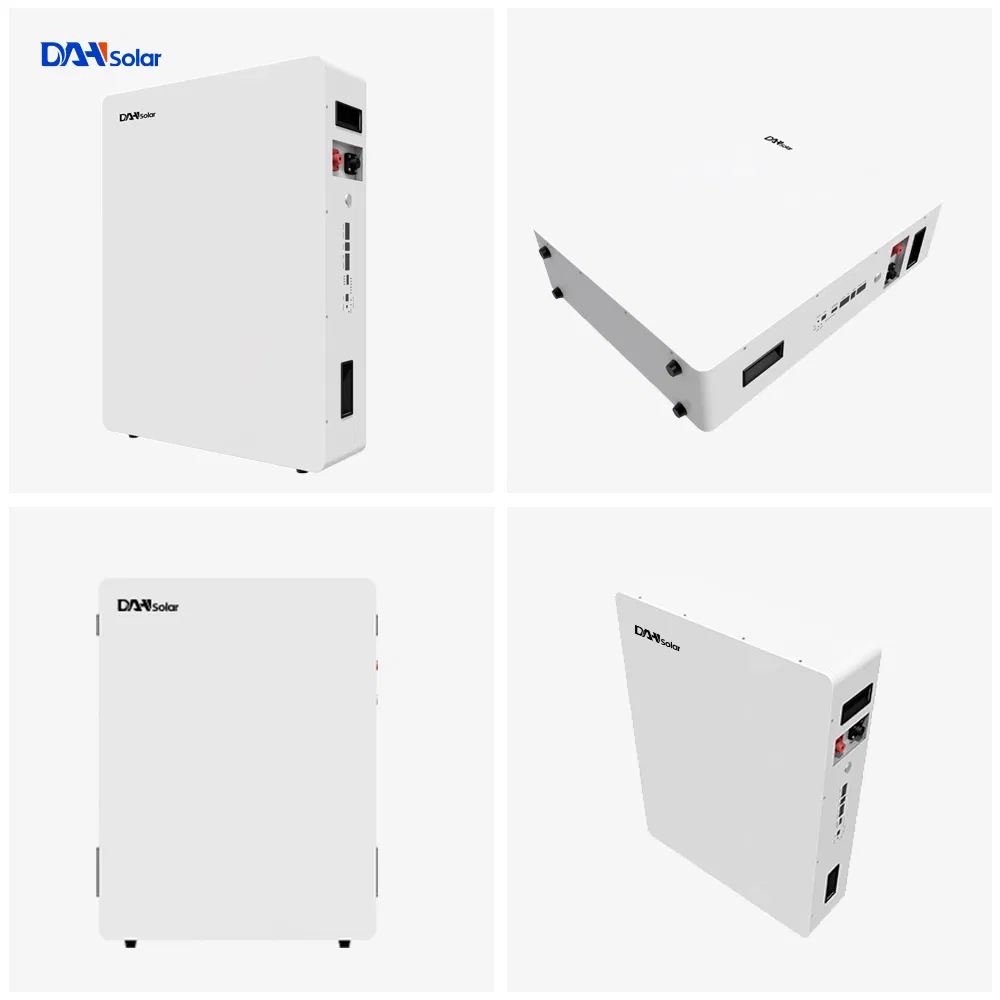

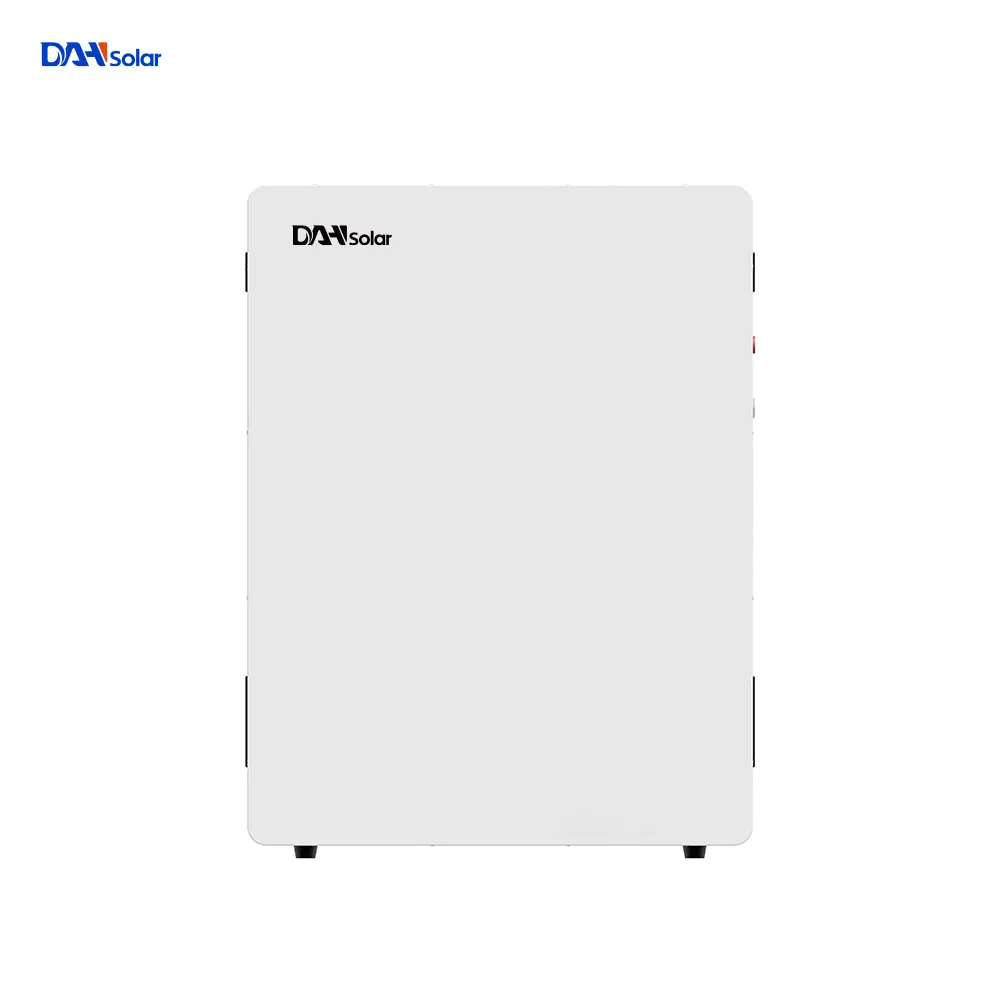

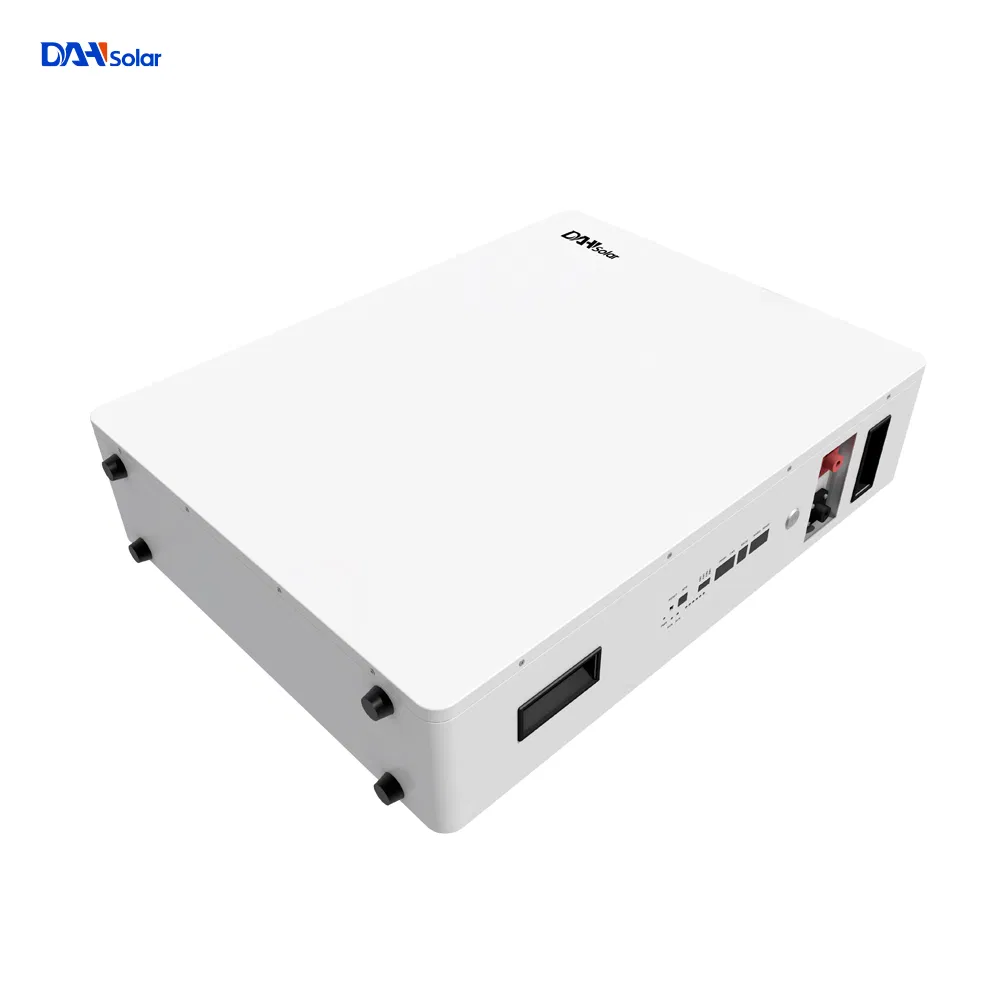

Dah Solar 51.2V 200ah 10kwh Low Voltage Energy Storage System Solar Panel System Renewable Lithium Battery

1 / 5

Dah Solar 51.2V 200ah 10kwh Low Voltage Energy Storage System Solar Panel System Renewable Lithium Battery

Customization:	Available
Type:	Li-ion Battery
Cathode Material:	LFP

Send Inquiry

Product Description

Basic Information

Model NO.

DH-A10-V2

Rechargeable

Yes

Battery Type

LiFePO4

Cycle Life

≥ 6000 Times @ 80% Dod, 25 °c

Communication

RS232/RS485/Can

Protection

IP 21

Capacity

10.24 KWh

Voltage

51.2V

Product Overview

Technical Specifications

Performance Parameters
Product Model	DH-A10-V2
Cells In Series	16S
Rated Energy (KWh)	10.24
Rated Voltage (V)	51.2
Maximum Charging Current (A)	100
Maximum Discharge Current (A)	100
Environment & Mechanical
Charging Temperature	0~60℃
Discharge Temperature	-10~65℃
Display	LCD Display
Net Weight (Kg)	80
Dimensions (mm)	520×150×680

Powering the Future with Solar Energy Storage Solutions

Our cutting-edge energy storage solutions are designed to meet the growing demand for reliable, efficient, and eco-friendly power systems. We empower homes, businesses, and communities worldwide to harness the full potential of solar energy.

Core Expertise:

Residential Energy Storage: Ensuring uninterrupted power day and night.
Commercial & Industrial: Scalable systems to reduce energy costs.
Off-Grid & Hybrid: Robust power for remote environments.
Customized Solutions: Tailored battery systems for specific project needs.

Frequently Asked Questions

What is the cycle life of the DH-A10-V2 battery?

The system offers a cycle life of ≥ 6000 times at 80% Depth of Discharge (DOD) under 25°C conditions.

Which communication protocols are supported?

The system supports RS232, RS485, and CAN communication methods for seamless integration with inverters.

What is the operating temperature range?

The charging temperature range is 0~60℃, and the discharge temperature range is -10~65℃.

Is this battery suitable for outdoor installation?

The product has an IP21 protection rating, making it suitable for indoor or sheltered environments.

What type of battery technology is used?

It utilizes high-performance LiFePO4 (Lithium Iron Phosphate) technology, known for its safety and long lifespan.

Can this system be used for off-grid applications?

Yes, it is designed for residential, commercial, and off-grid/hybrid solar setups to provide reliable energy storage.
