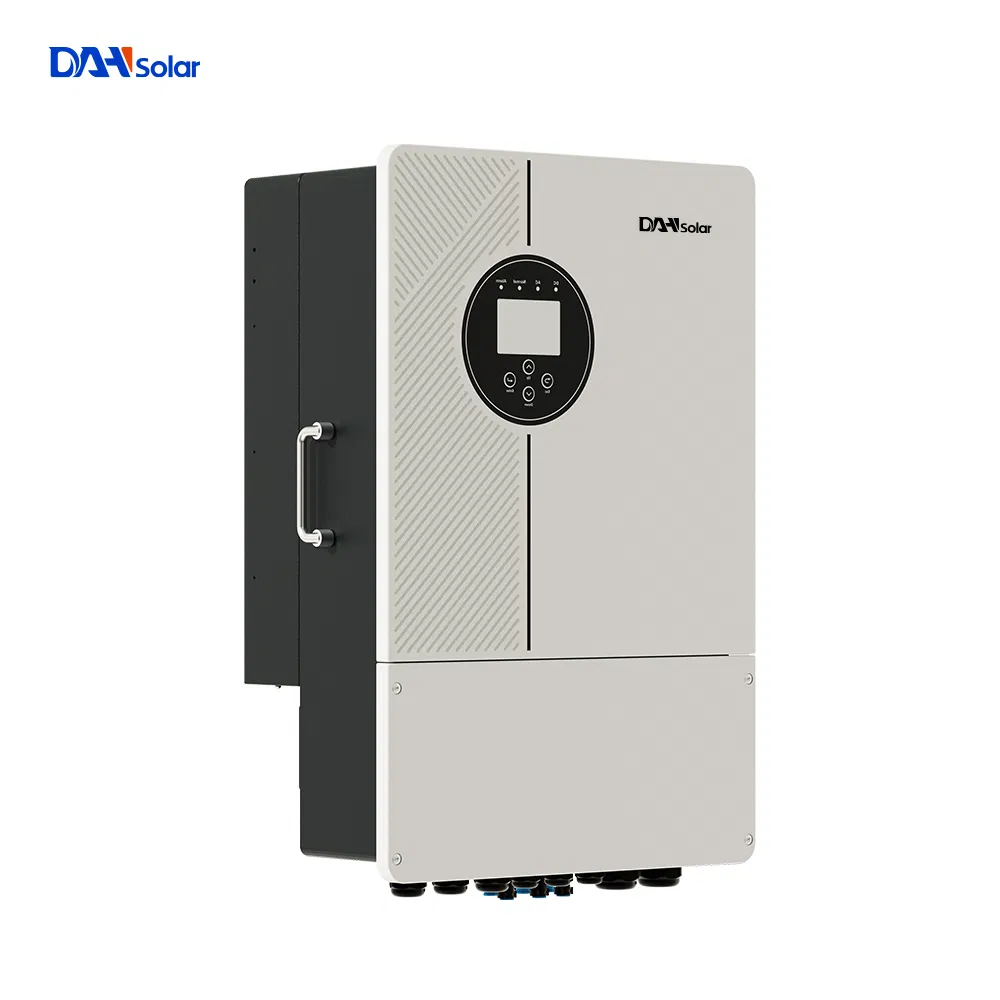

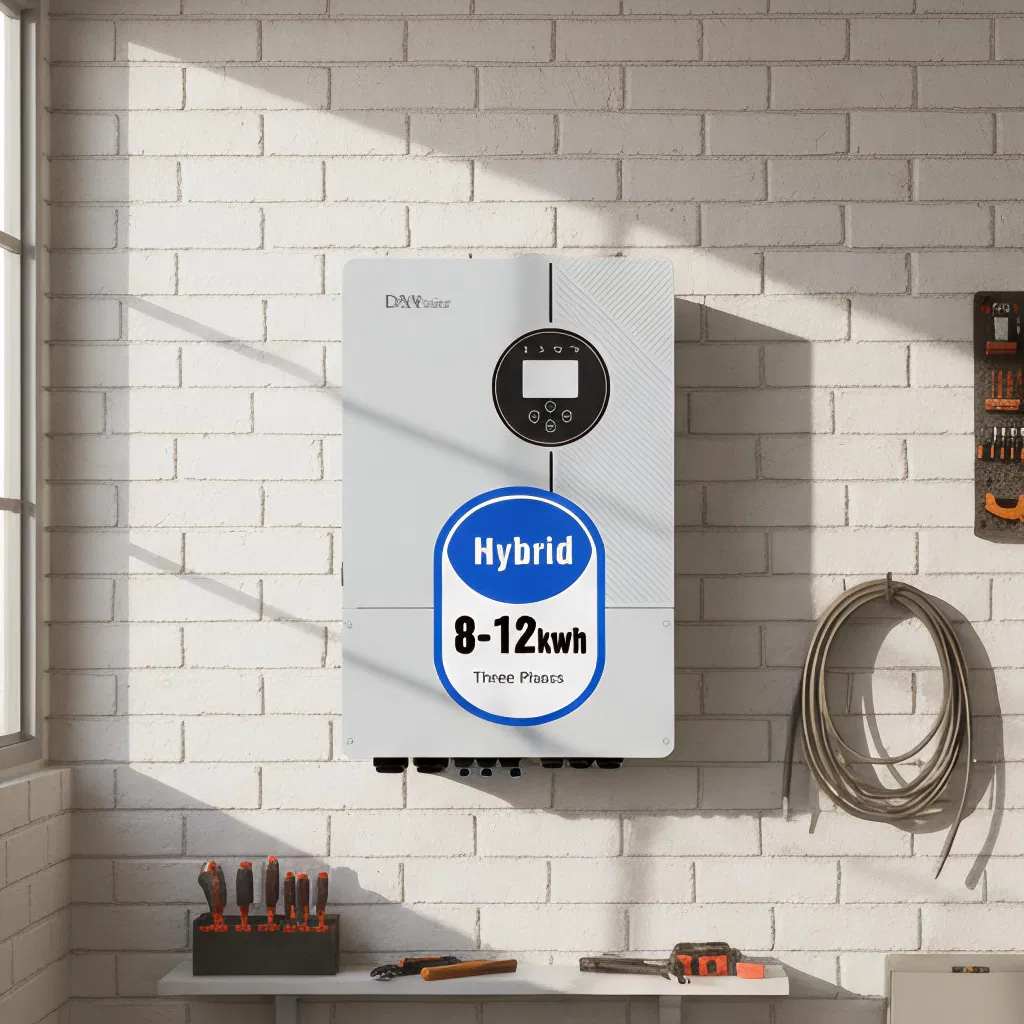

Dah Low Voltage 8kw 10kw 12kw Energy Storage Hybrid Inverter

1 / 5

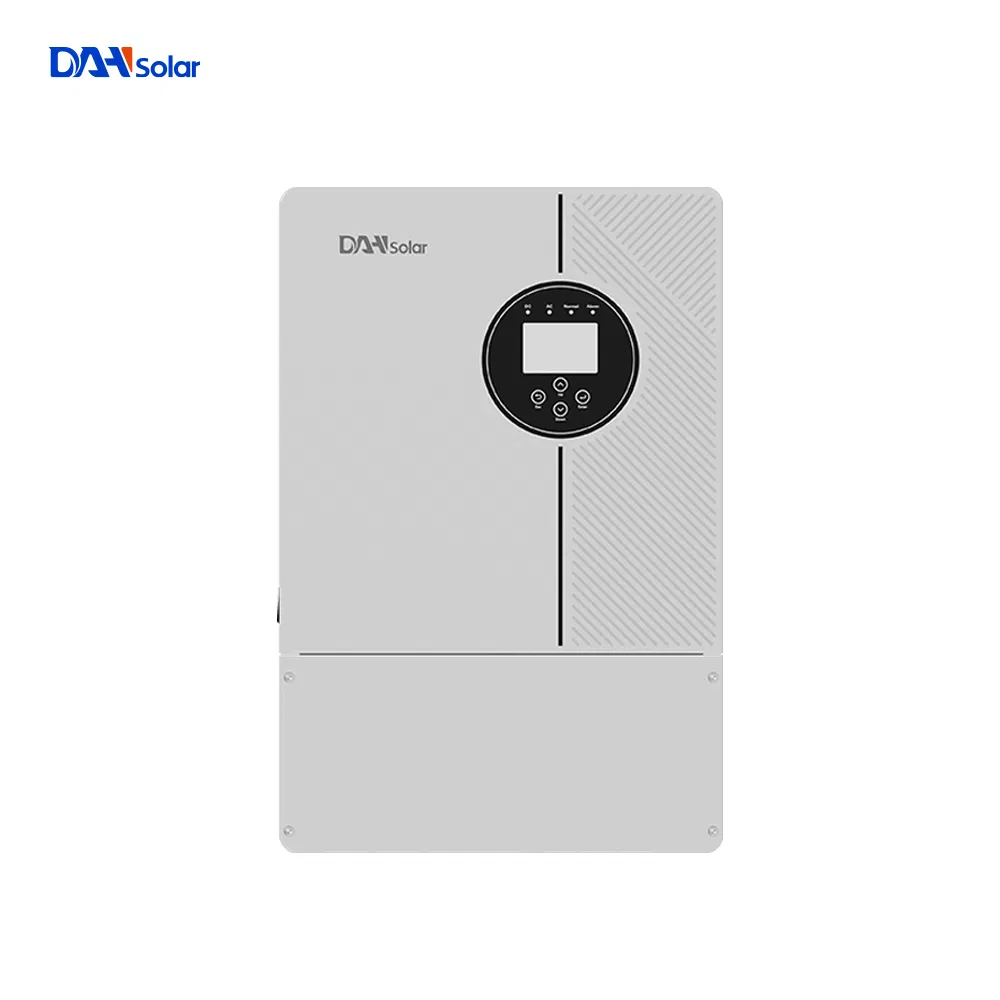

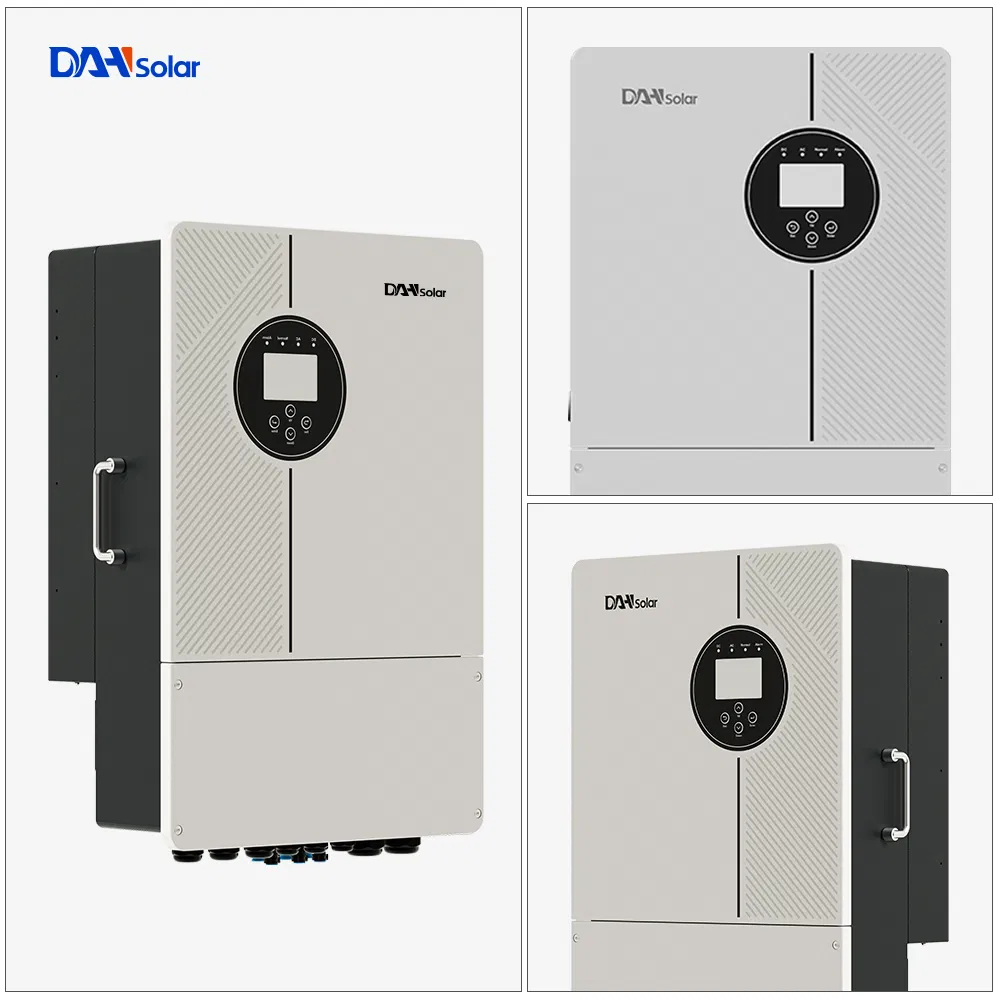

Dah Low Voltage 8kw 10kw 12kw Energy Storage Hybrid Inverter

Customization:	Available
After-sales Service:	Yes
Warranty:	5 Years

Send Inquiry

Product Description

Basic Information

Model NO.

DHN-LVEH3P8~12K-G1

Nature of Source

Active Inverter

Phase

Three Phase

Output Power

>1000W

Certification

CE, ISO9001

Power Source

Solar Power

Ingress Protection

IP 65

Cooling Type

Intelligent Air Cooling

Packaging & Delivery

📦 Package Size: 45.00cm * 68.00cm * 25.00cm

⚖️ Gross Weight: 36.200kg

Product Description

Model Details	8K-EU-G1	10K-EU-G1	12K-EU-G1
Battery Voltage Range (V)	40-60
Max. Charging Current (A)	190	210	240
Max. PV Input Power (W)	12800	16000	19200
Max. PV Input Voltage (V)	800
Rated AC Output Power (W)	8000	10000	12000
Max. Efficiency	97.57%
Grid Connection	3L+N+PE

Why Choose Our Solutions

Powering the Future with Solar Energy Storage Solutions

Specializing in advanced solar energy storage products with a commitment to innovation, sustainability, and quality. We empower homes and businesses worldwide to harness the full potential of solar energy.

Residential Storage

Efficient batteries for homeowners ensuring uninterrupted power supply day and night.

Commercial Solutions

Scalable systems for businesses reducing energy costs and enhancing independence.

Off-Grid Systems

Robust power for remote areas and unstable grid environments.

Frequently Asked Questions

Q1: What types of batteries are compatible with this hybrid inverter?

The system supports both Lead-acid and Li-ion batteries with a voltage range of 40-60V and features self-adaption to BMS for Lithium batteries.

Q2: Can the inverter be used in harsh outdoor environments?

Yes, the inverter has an IP65 Ingress Protection rating, making it suitable for various environmental conditions.

Q3: Does the system support remote monitoring?

Yes, it supports multiple monitoring modes including WiFi and Bluetooth for real-time data tracking.

Q4: What is the efficiency of the MPPT tracker?

The MPPT efficiency is rated at over 99.99%, ensuring maximum energy harvest from your solar panels.

Q5: Is it safe for residential use?

Absolutely. It includes integrated DC polarity reverse protection, overcurrent protection, thermal protection, and island protection monitoring.

Q6: What is the peak power capacity for off-grid mode?

The inverter can handle peak power up to 2 times its rated power in off-grid situations to manage high-startup loads.
