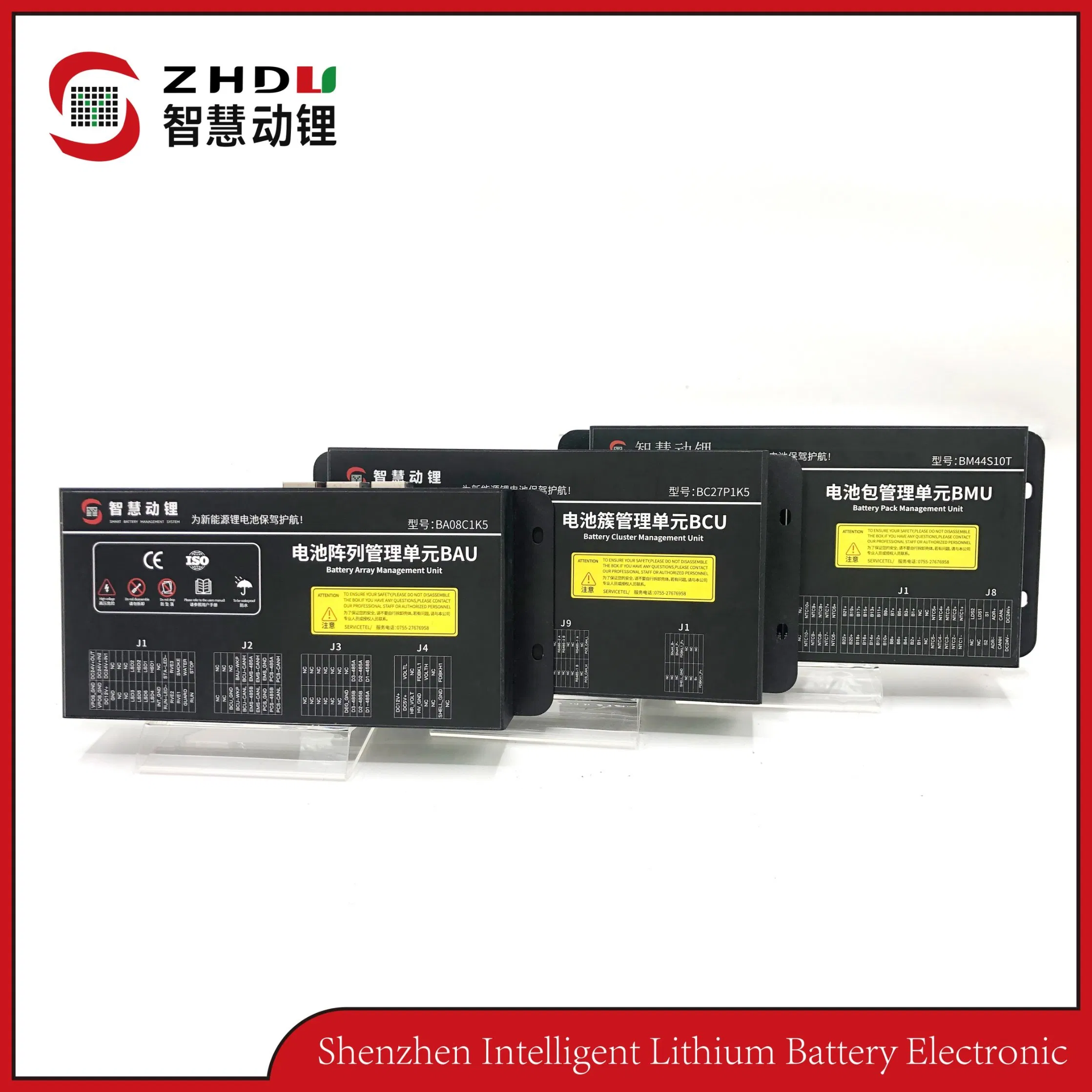

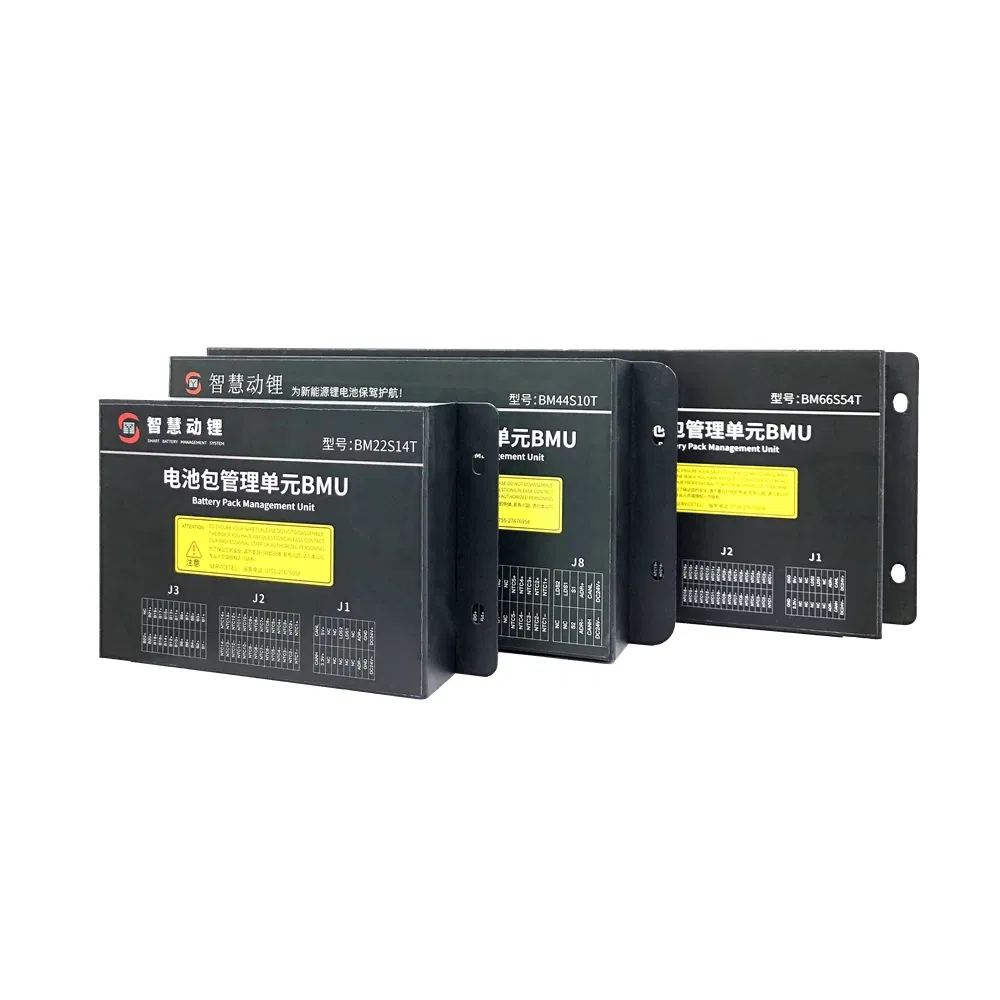

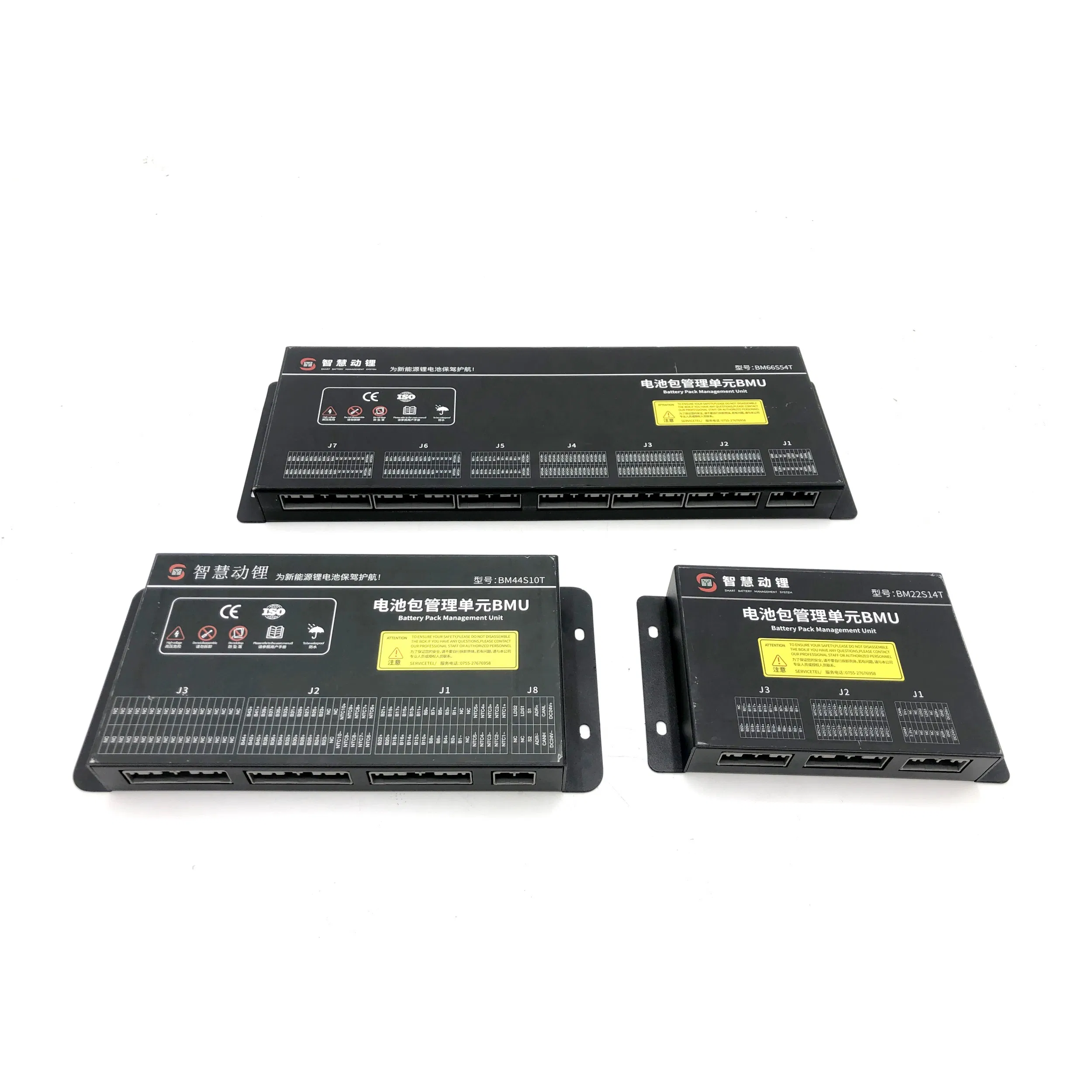

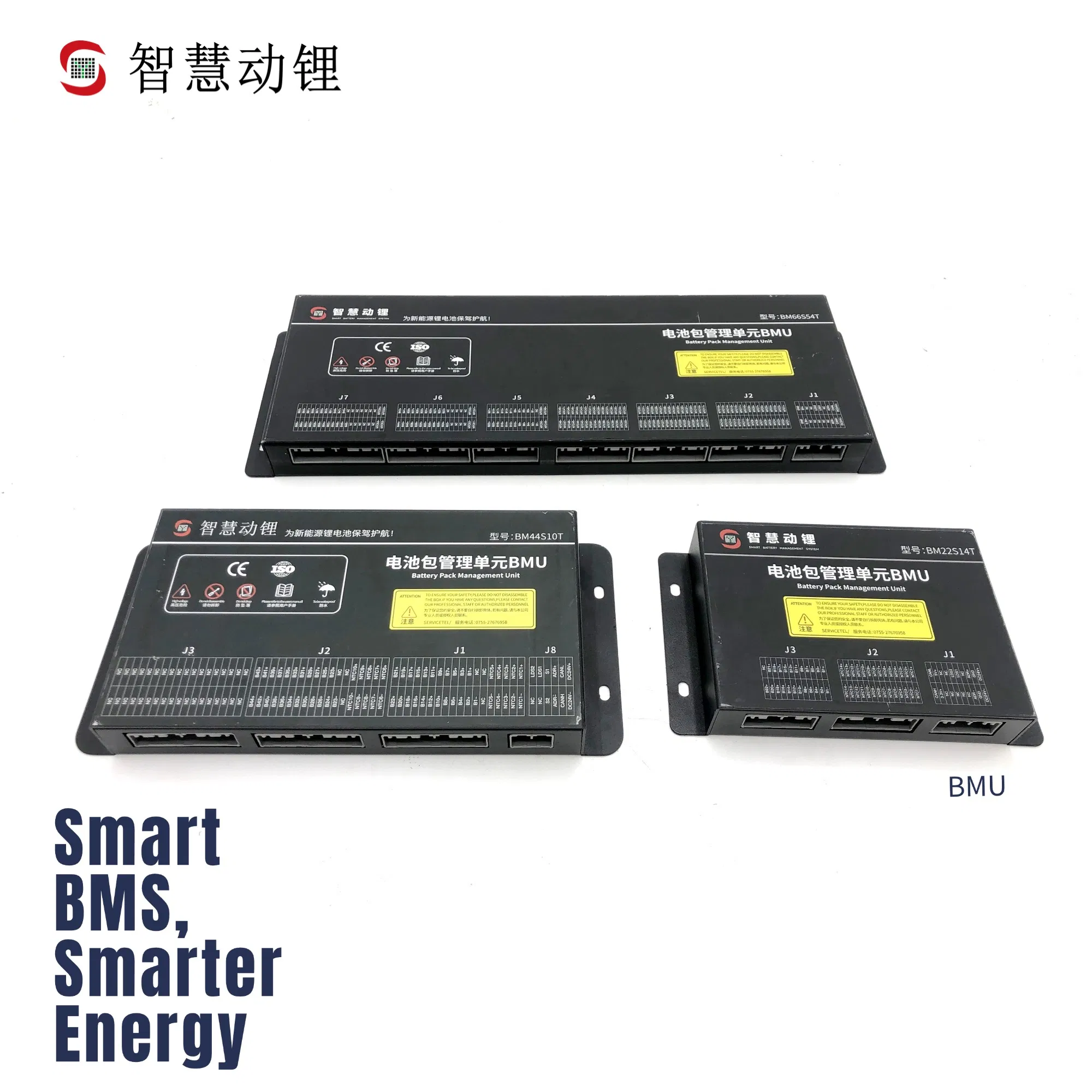

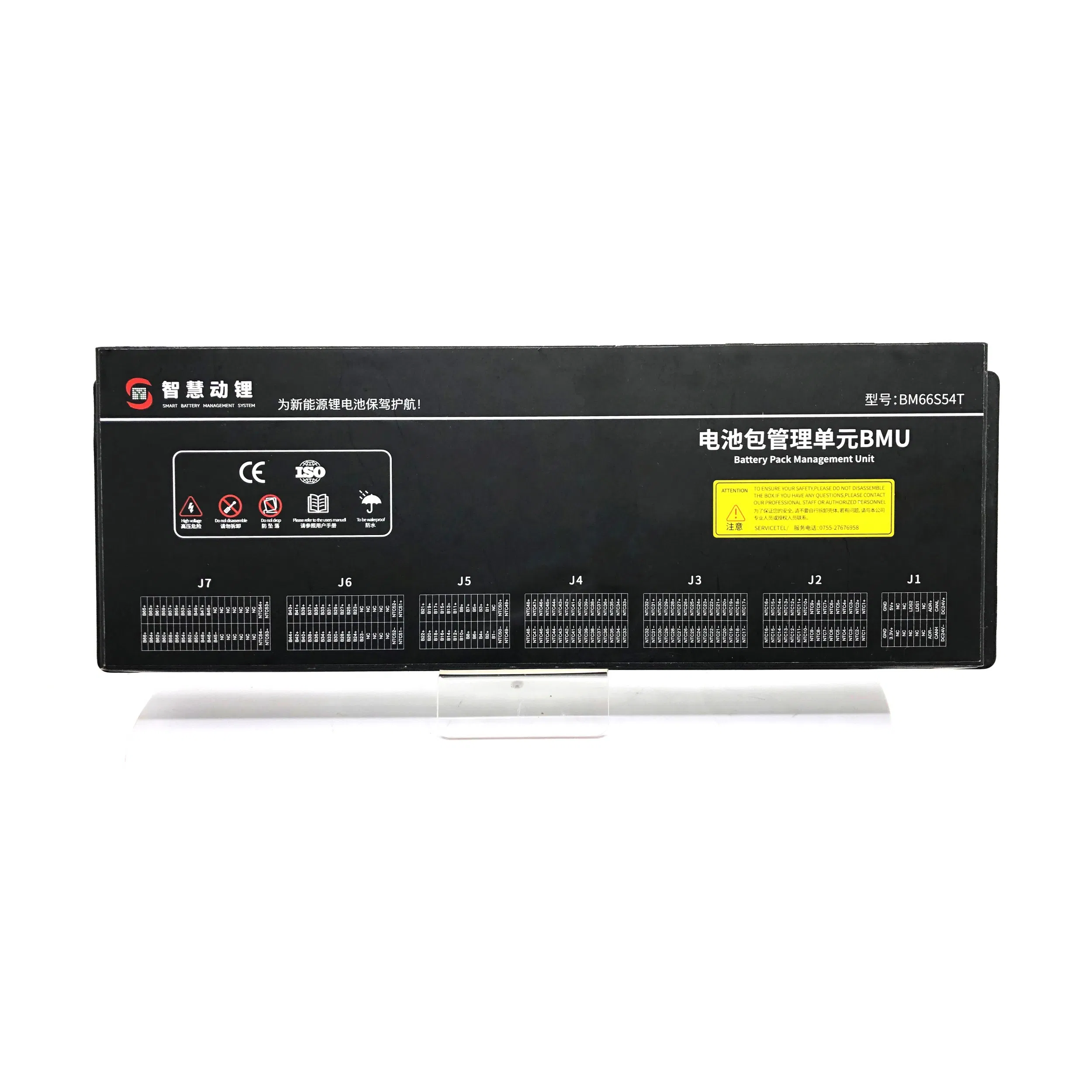

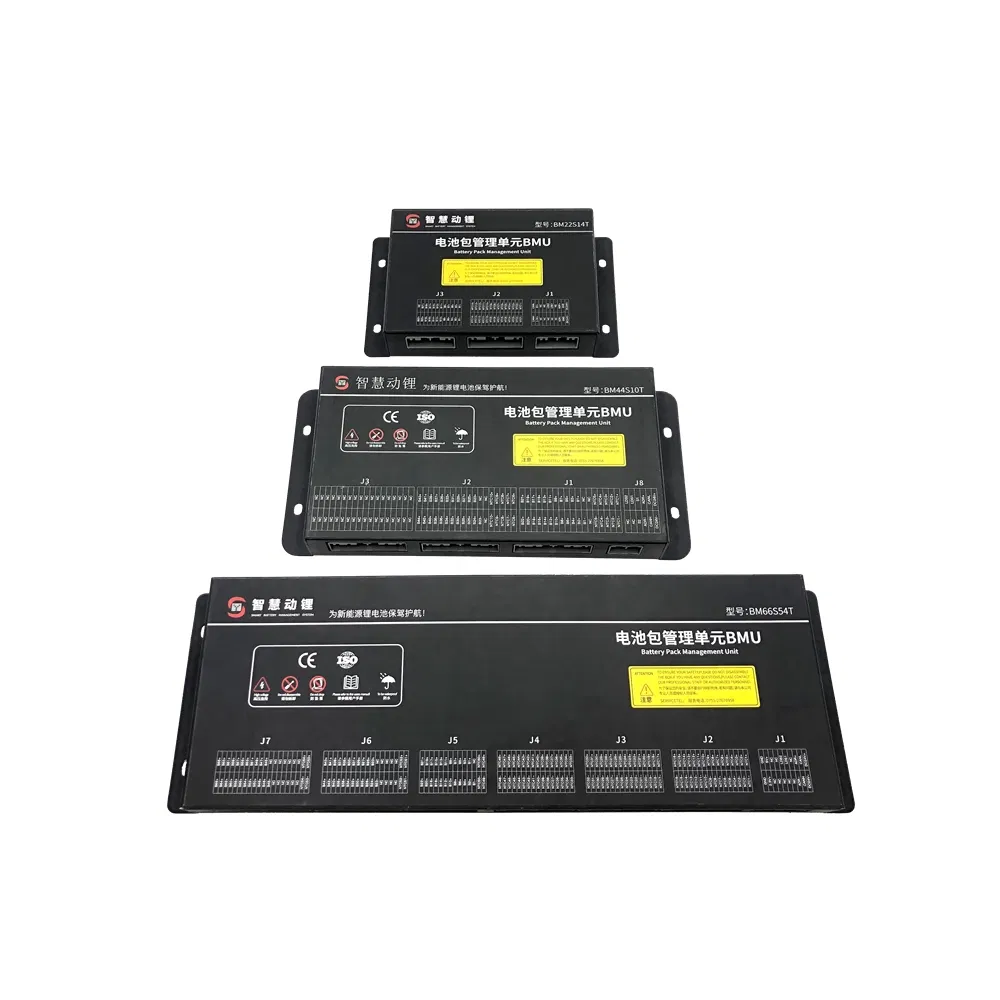

High voltage energy storage/industrial and commercial energy storage solutions use 3+1 level BMS architecture, integrated flexible networking mode, can support single cluster independent use or multiple cluster battery parallel use, can simultaneously online monitoring system total voltage, total current, insulation resistance, relay bonding, with cell safety state real-time monitoring, intelligent balancing, fault diagnosis, multi-level alarm and protection, combined with accurate SOX computing, and support mass data collection and storage, AI big data security early warning, battery performance monitoring and trend analysis, complex logic processing, local data storage and edge computing applications.
Meet the DC 1500V design, and support remote platform intelligent operation and maintenance, can be effectively extended battery life, improve system stability and security, and reduce equipment operation and maintenance costs.
| Parameter | Specification |
|---|---|
| Operation Voltage | DC12V-36V |
| Operation Current | ≤ 35mA(12V)/≤ 20mA(24V) |
| Voltage acquisition strings | 16S~22S , 23S~44S , 45S~66S |
| Voltage acquisition accuracy | ±4mV |
| Balance | Supports Passive Balance |
| Size | 170*100*31.2mm; 360*120*31.2mm |
