June Power
June Power
High voltage energy storage/industrial and commercial energy storage solutions use 3+1 level BMS architecture, integrated flexible networking mode, can support single cluster independent use or multiple cluster battery parallel use. It can simultaneously online monitoring system total voltage, total current, insulation resistance, relay bonding, with cell safety state real-time monitoring, intelligent balancing, fault diagnosis, multi-level alarm and protection.
Meet the DC 1500V design, and support remote platform intelligent operation and maintenance, can be effectively extended battery life, improve system stability and security, and reduce equipment operation and maintenance costs.

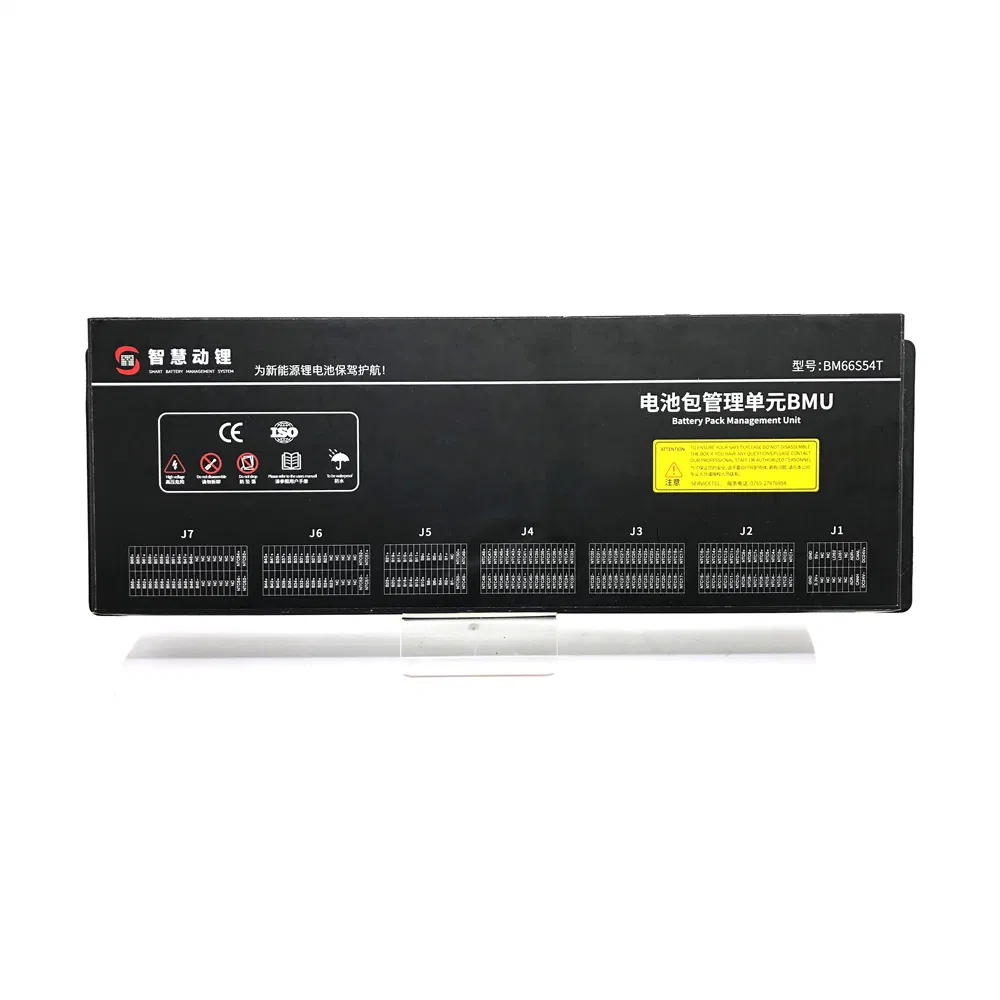

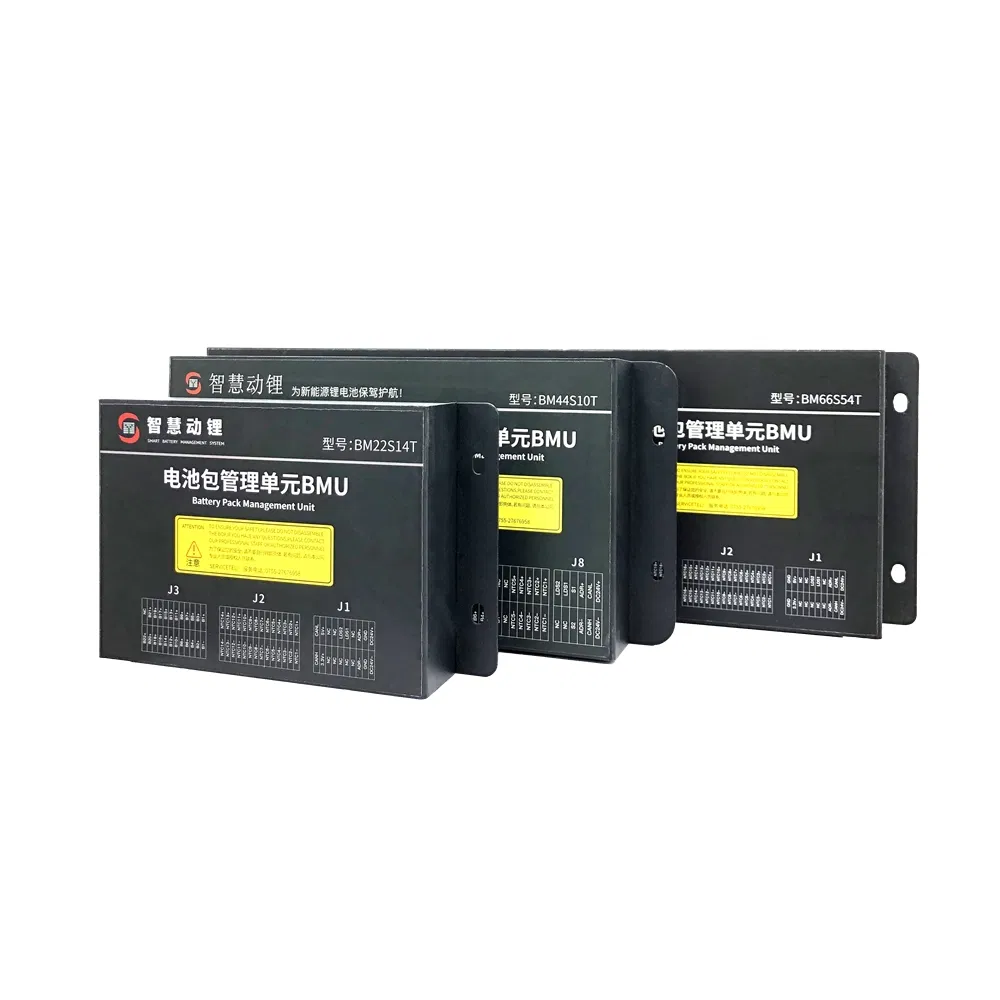

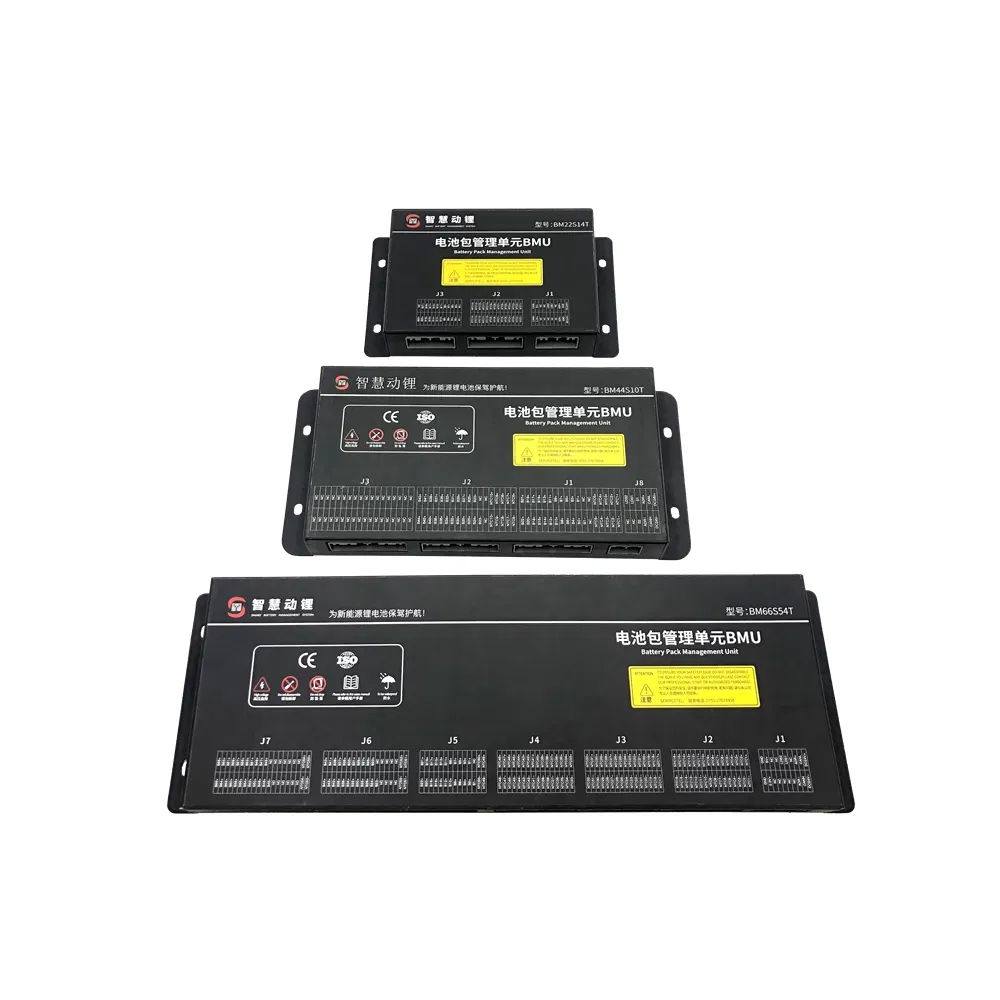

| BMU Technical Specifications | |
|---|---|
| Operation Voltage | DC12V-36V |
| Operation Current | ≤ 35mA(12V)/≤ 20mA(24V) |
| Voltage Acquisition Strings | 16S~22S, 23S~44S, 45S~66S |
| Voltage Acquisition Accuracy | ±4mV |
| Temperature Sensors | 14~54 |
| Balance | Supports Passive Balance (100mA) |
| Size | 170*100*31.2mm / 360*120*31.2mm |
| Product Parameters | BCU | BAU |
|---|---|---|
| Operation Voltage | DC12V-36V | DC12V~36V |
| CAN / RS485 | 3 / 2 | 3 / 5 |
| Ethernet | 1 | 3 |
| Insulation Detection | Support Input | Support |
| Size | 245*115*29.7mm | 245*106.5*29.7mm |
Established in 2011, we are a high-tech enterprise specializing in the research, development, production, and sales of lithium battery management systems (BMS). As a national-level enterprise specializing in refined and innovative technologies, we provide global customers with safe, intelligent, and efficient lithium battery management solutions.
With a strong R&D team and over 50 national patents, we have achieved digital and platform-based management of lithium battery safety. Our solutions are widely used in home energy storage, portable power stations, UPS systems, and industrial scenarios.
