Best Selling Solar Inverter 5kw 8kw Hybrid Storage PV Inverter for Home Use
Best Selling Solar Inverter 5kw 8kw Hybrid Storage PV Inverter for Home Use
Best Selling Solar Inverter 5kw 8kw Hybrid Storage PV Inverter for Home Use
Best Selling Solar Inverter 5kw 8kw Hybrid Storage PV Inverter for Home Use
Best Selling Solar Inverter 5kw 8kw Hybrid Storage PV Inverter for Home Use
1 / 5
Best Selling Solar Inverter 5kw 8kw Hybrid Storage PV Inverter for Home Use
Best Selling Solar Inverter 5kw 8kw Hybrid Storage PV Inverter for Home Use
Best Selling Solar Inverter 5kw 8kw Hybrid Storage PV Inverter for Home Use
Best Selling Solar Inverter 5kw 8kw Hybrid Storage PV Inverter for Home Use
Best Selling Solar Inverter 5kw 8kw Hybrid Storage PV Inverter for Home Use

Best Selling Solar Inverter 5kw 8kw Hybrid Storage PV Inverter for Home Use

Customization: Available
After-sales Service: Yes
Warranty: 10 Years
Send Inquiry

Product Description

i

Basic Information

Model NO.
RS8KLNA
Phase
Split
Output Power
8000W
Type
DC/AC Inverters
Power Source
Solar Power
Nature of Wave
Sine Wave Inverter
Specification
430 x 710 x 210mm
Origin
China
Capacity
10000 units/Day
P

Product Description

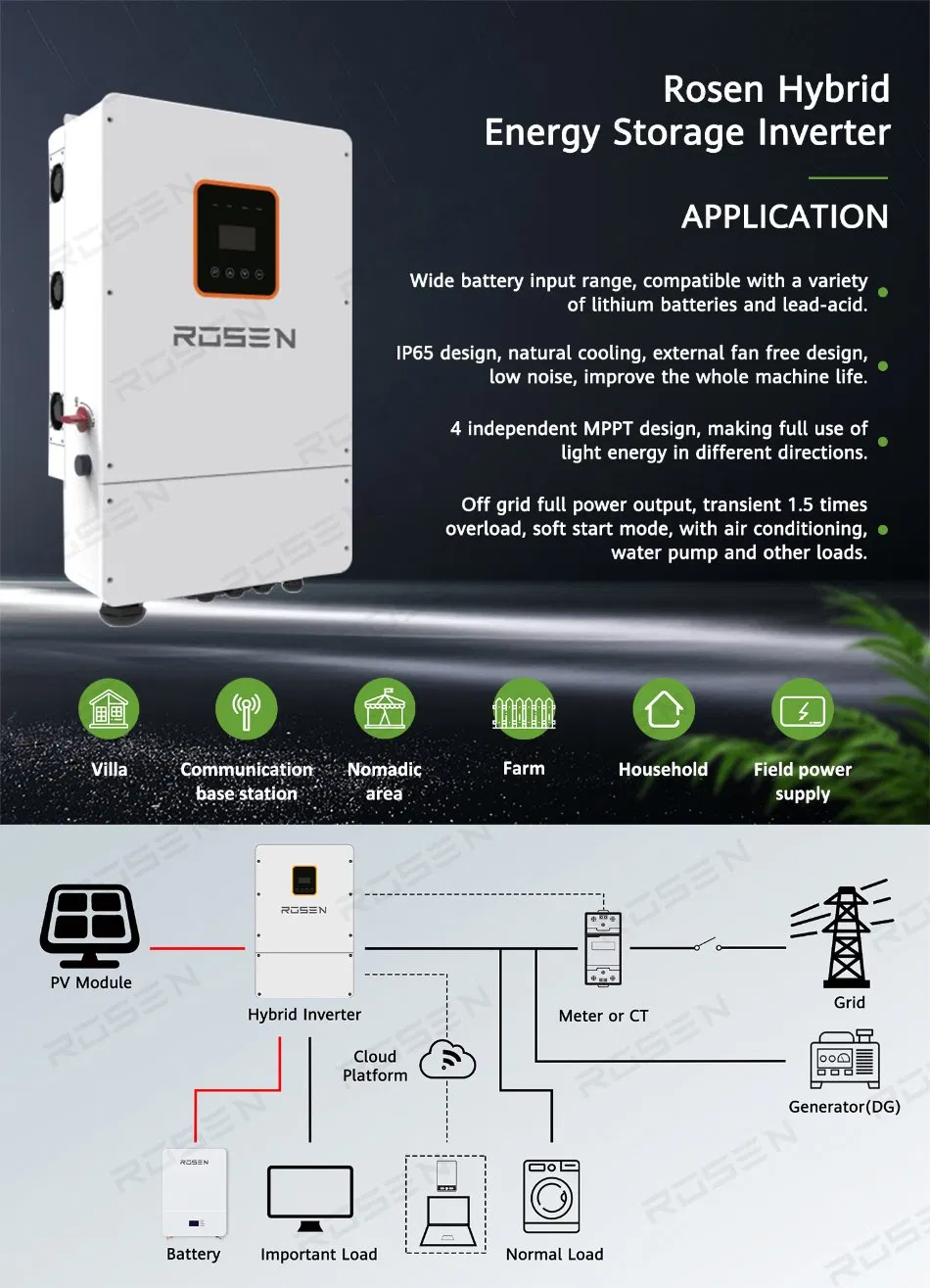

Solar Inverter Product Details
S

Technical Specification

Model RS5KLNA RS6KLNA RS7K6LNA RS8KLNA
Efficiency
Max Efficient>=98.2%
CEC Efficient>=97.2%
On Grid AC Output
Rate AC Output Power5KVA6KVA7.6KVA8KVA
AC Output Voltage120/240Vac(split phase), 208Vac(2/3 phase),230Vac
Max Output Current24A28.8A36.5A38.3A
PV Input
PV Input Power7.5KW9KW12KW12KW
MPPT Voltage Range120V-500V
Battery
Max Charging Current120A135A190A190A
Battery TypeLithium Powerwall/ Pack/Lead Acid Battery
J

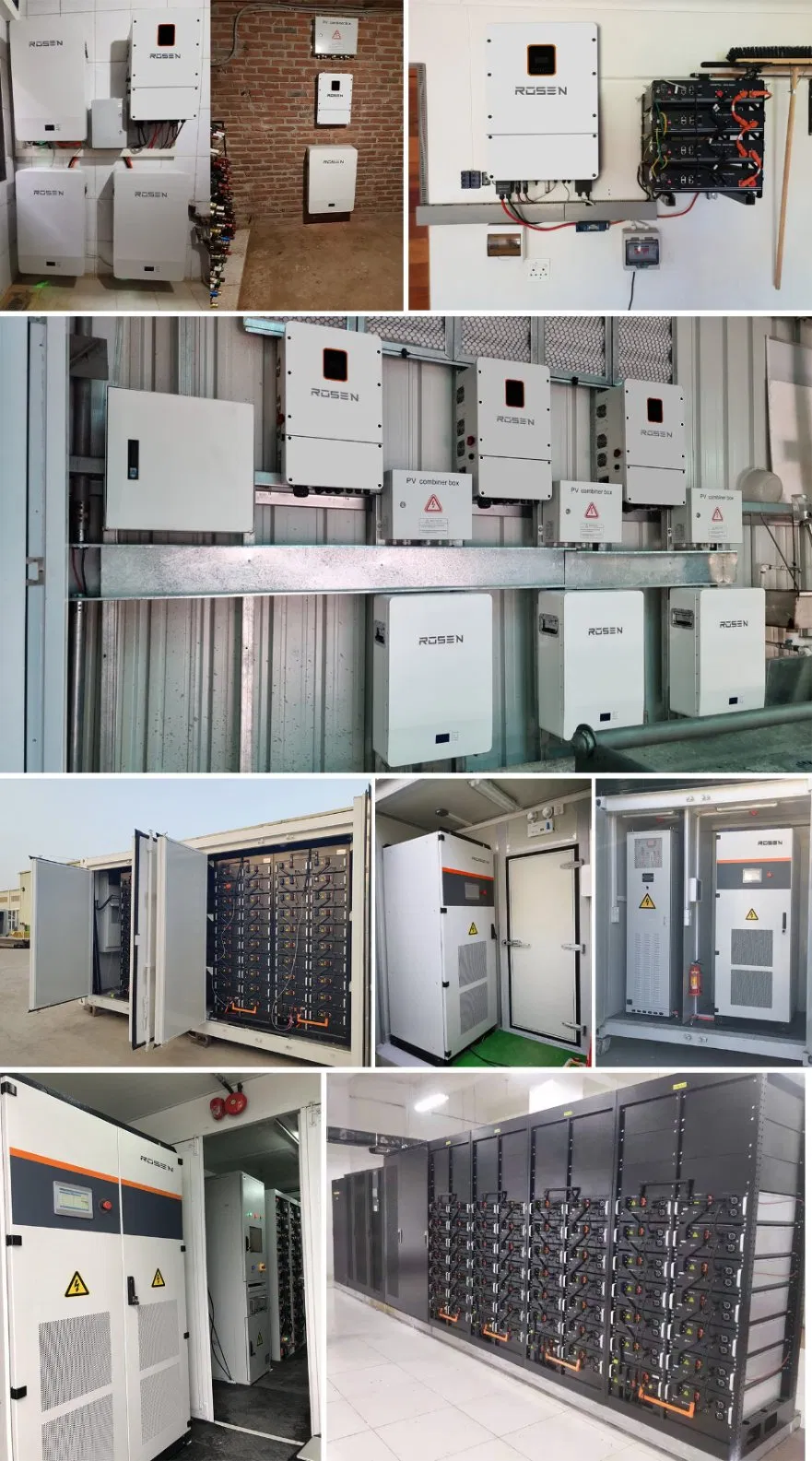

Project Showcase

Solar Projects
H

Our Support

Technical Support Global Service
?

Frequently Asked Questions

What types of batteries are compatible with this inverter?
The inverter is compatible with Lithium Powerwall, Battery Packs, and Lead-Acid batteries with a 48V voltage range.
Does this inverter support split-phase output?
Yes, it supports 120/240Vac split phase, 208Vac (2/3 phase), and 230Vac single phase grid types.
What is the maximum efficiency of the RS series?
The maximum efficiency of these hybrid inverters reaches up to 98.2%, with a CEC efficiency of 97.2%.
Are there built-in protection features?
Yes, it includes AFCI protection, islanding protection, ground protection, and overvoltage/over-current protections for both AC and DC.
Can I monitor the system remotely?
Yes, the system supports multiple communication protocols including Modbus, RS485, WIFI, and 4G for remote monitoring.
Is the inverter suitable for outdoor installation?
With an IP65/NEMA 3R rating, the inverter is designed to withstand various environmental conditions and is suitable for outdoor use.
