Aobo 2.4kwh 48V Uhome-LFP 2400 Solar Lithium Battery for Low Voltage Energy Storage System Home

1 / 5

Aobo 2.4kwh 48V Uhome-LFP 2400 Solar Lithium Battery for Low Voltage Energy Storage System Home

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Info

Model NO.

Uhome - LFP 2400

Dimension(L*W*H)

500*442*133 mm

Nominal Dis-/Charge Power

1.5kw

Weight

27.5kg

Nominal Voltage

51.2VDC

Communication

Can/RS485

Safety

CE TUV

Type

Lithium-Ion Battery Pack

Usage

Solar Power System

Rated Capacity

50ah

Product Description

2.4kw 51.2V 50ah Lithium Ion Battery Pack for ESS Energy Storage Battery

Model	Uhome-LFP 5000	Uhome-LFP 2400	Uhome-LFP 2500	Uhome-LFP 2600HV
Total energy(DC)	5.1kWh	2.4kWh	2.5kWh	2.56kWh
Usable energy(DC)	4.6kWh	2.2kWh	2.2kWh	2.2kWh
Norminal dis-/charge power	3.0kw	2.75kw	3.75kw	4.6kw
Peak power	6kw for 3s	3kw for 3s	3kw for 3s	3kw for 3s
Voltage	48-56Vdc	48-56Vdc	48-56Vdc	96-112Vdc
Weight	45kg	27.5kg	23kg	24kg
Communication	CAN/RS485
Warranty	10 years

Key Features

Digital Monitoring System APP
High Inverter Compatibility
Reliable LFP Cells
CANbus Standard Connection
Natural Cooling System

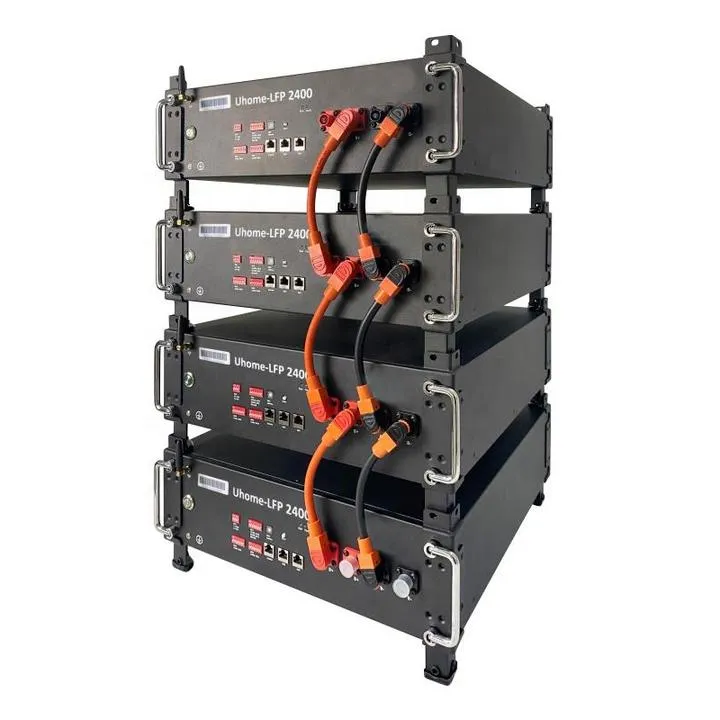

Assembly freely in series or parallel
Up to 8S8P (448V 326.4kWh)
10 Years Limited Warranty

Remote Monitoring & Management

Intelligent Service Platform for remote monitoring and management

Compatible Inverter Brands

SOLIS, GROWATT, DEYE, MEGAREVO, LUXPOWER, KEHUA, SOFAR, INVT, etc.

BMS Functions & Advantages

Battery Management System (BMS) Functions:

(1) Measurement of LiFePO4 battery terminal voltage
(2) Energy balance between single cells
(3) SOC calculation and remaining power estimation
(4) Real-time monitoring to prevent over-charging/discharging
(5) Data recording and analysis for reliability

Uhome Energy Storage Advantages:

Energy efficiency > 97%
Cycle life > 6000 cycles
Relay design instead of MOSFET
Dual hardware & Triple software protection
No fan design for silent operation

Frequently Asked Questions

Q1: How many units can be connected in parallel? The system supports assembly up to 8 units in parallel or series (8S/8P), providing flexible capacity up to 326.4kWh.

Q2: What is the expected lifespan of the Uhome-LFP 2400? The battery uses reliable LFP cells with a cycle life of over 6,000 cycles and an overall design life of more than 15 years.

Q3: Is the battery compatible with my existing inverter? It is compatible with most major brands including Solis, Growatt, Deye, Victron, and Luxpower via CAN/RS485 communication.

Q4: Does the battery system require active cooling? No, it features a natural cooling system without fans, which reduces noise and eliminates the risk of fan failure.

Q5: Can I monitor the battery status remotely? Yes, the system includes a digital monitoring platform and a mobile APP for real-time remote management via WIFI.

Q6: What safety certifications does the product have? The battery system and its key components are certified by CE and TUV, ensuring high safety standards.
