Customization: Available
After-sales Service: 1 Year
Warranty: 1 Year
Send Inquiry

Product Description

Basic Specifications
Model NO.:SUB-D
Source Flow:Active Inverter
Phase:Single
Output Power:>1000W
Certification:CE, ISO9001
Type:DC/AC Inverters
Power Source:Solar Power
Wave String:Sine Wave Inverter
Capacity:1.5-5.5KW
HS Code:8504403090
Key Features
  • High Frequency off grid hybrid solar inverter SUB-D 3-11KW, PF=1
  • 3 in 1 design: Power Inverter + MPPT controller + Grid Charger
  • Working without battery during daytime
  • Support lithium activation wake-up and cold start function
  • Intelligent power supply mode: smart distribution of solar/mains/battery power
  • Adjustable Charge Current & Voltage, selectable Lead acid / Lithium battery

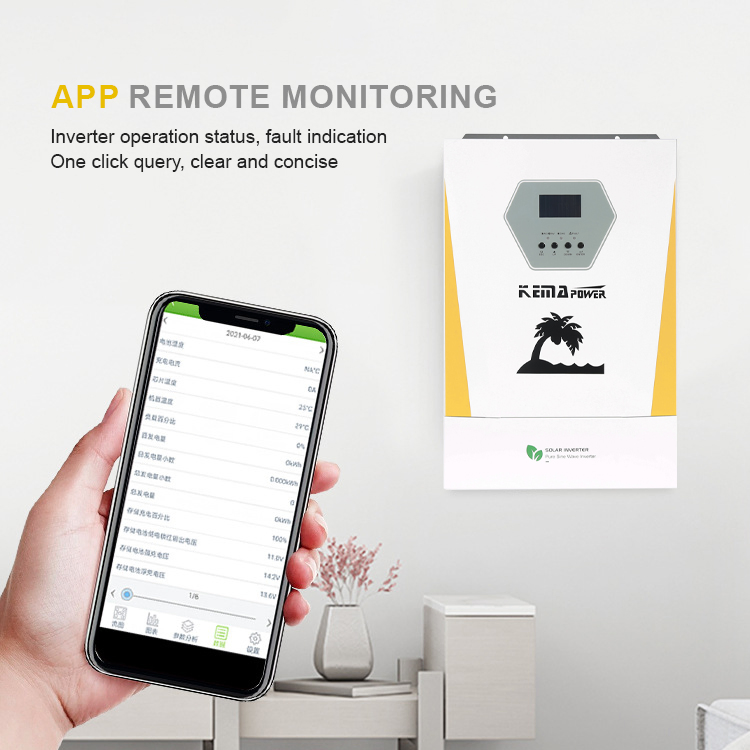

  • WiFi Plug or GPRS option for Mobile App monitoring
  • Pure sine wave output, suitable for different loads
  • Full protection: overload, over temperature, short-circuit, battery low/reverse
Technical Specifications
ITEM SUB-D-E3024 SUB-D-3624 SUB-D-6248 SUB-D-11048
Rated Power3KW3.6KW6.2KW11KW
Input Voltage220/230/240VAC
Surge Power2 times Rated power for 5s
Efficiency (Peak)97% (PV to INV)
WaveformPure sine wave
Battery Voltage24 VDC48 VDC
Max PV Array3KW4.2KW6.2KW2*5.5KW
MPPT Range150 ~ 500 VDC (50~500 for 3KW)
Product Gallery

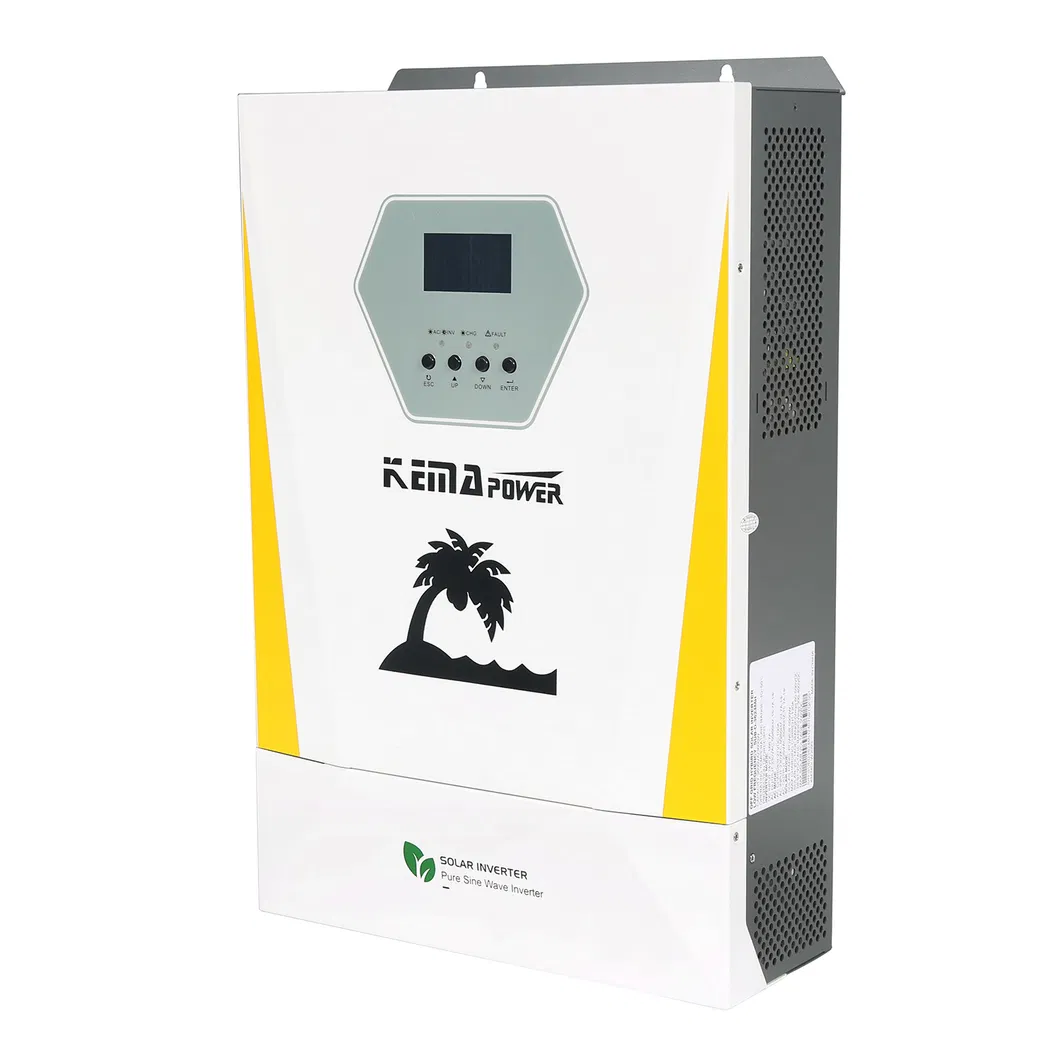

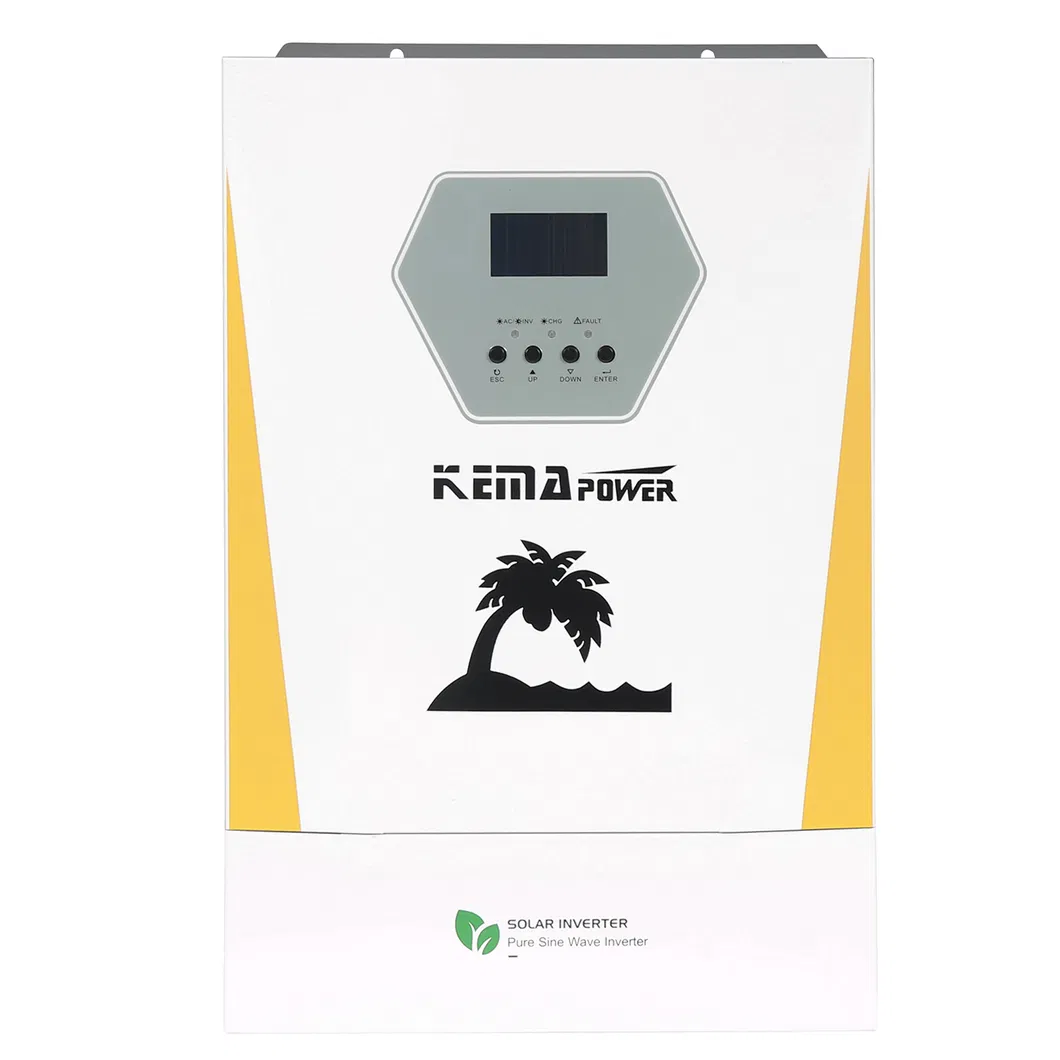

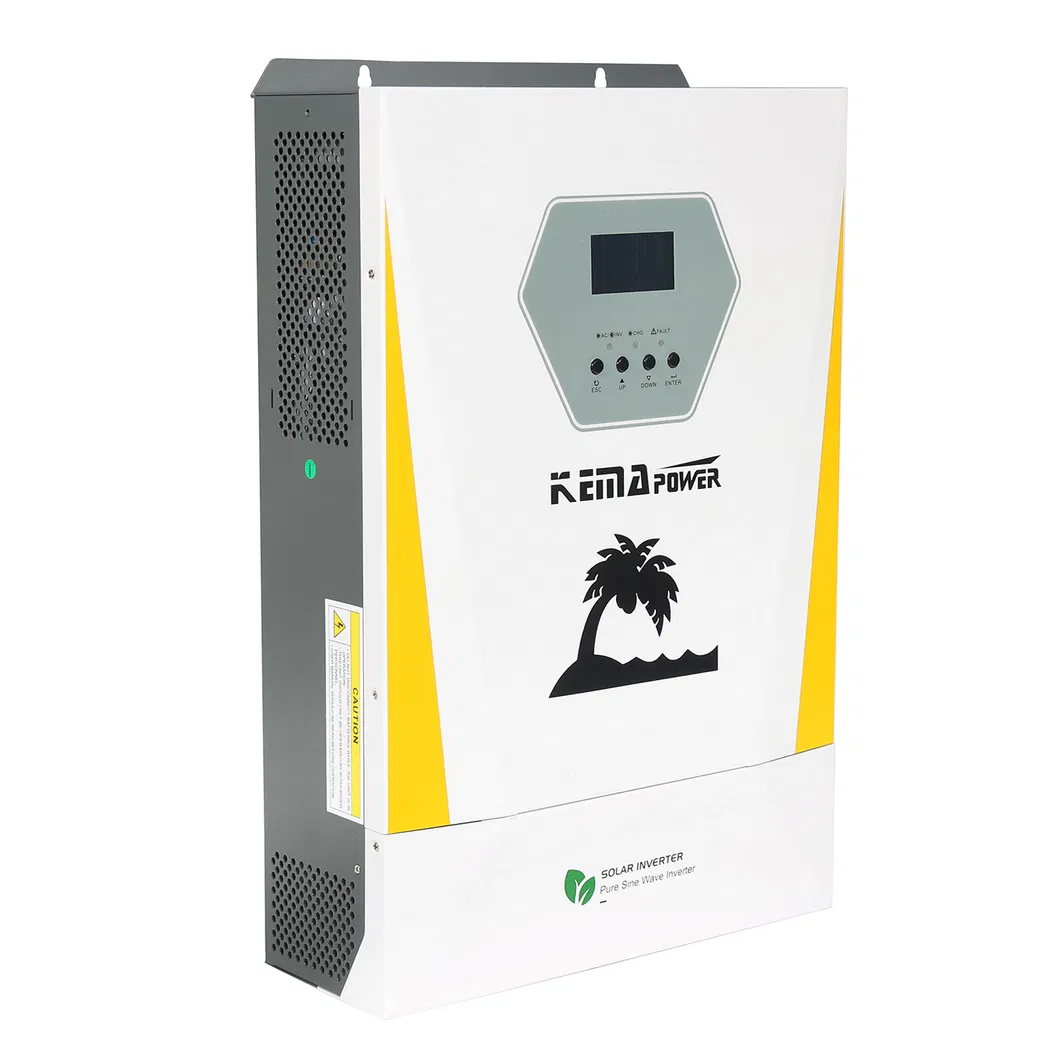

Hybrid Inverter View 1 Hybrid Inverter View 2 Hybrid Inverter View 3

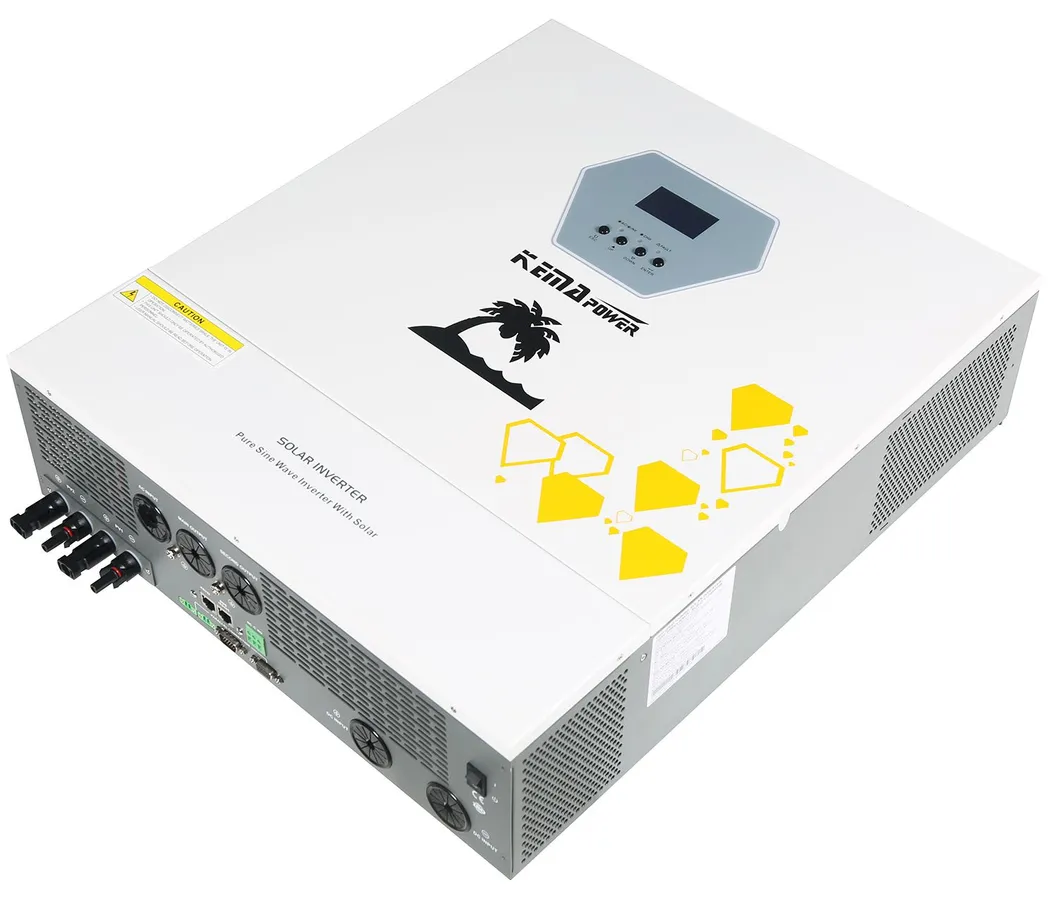

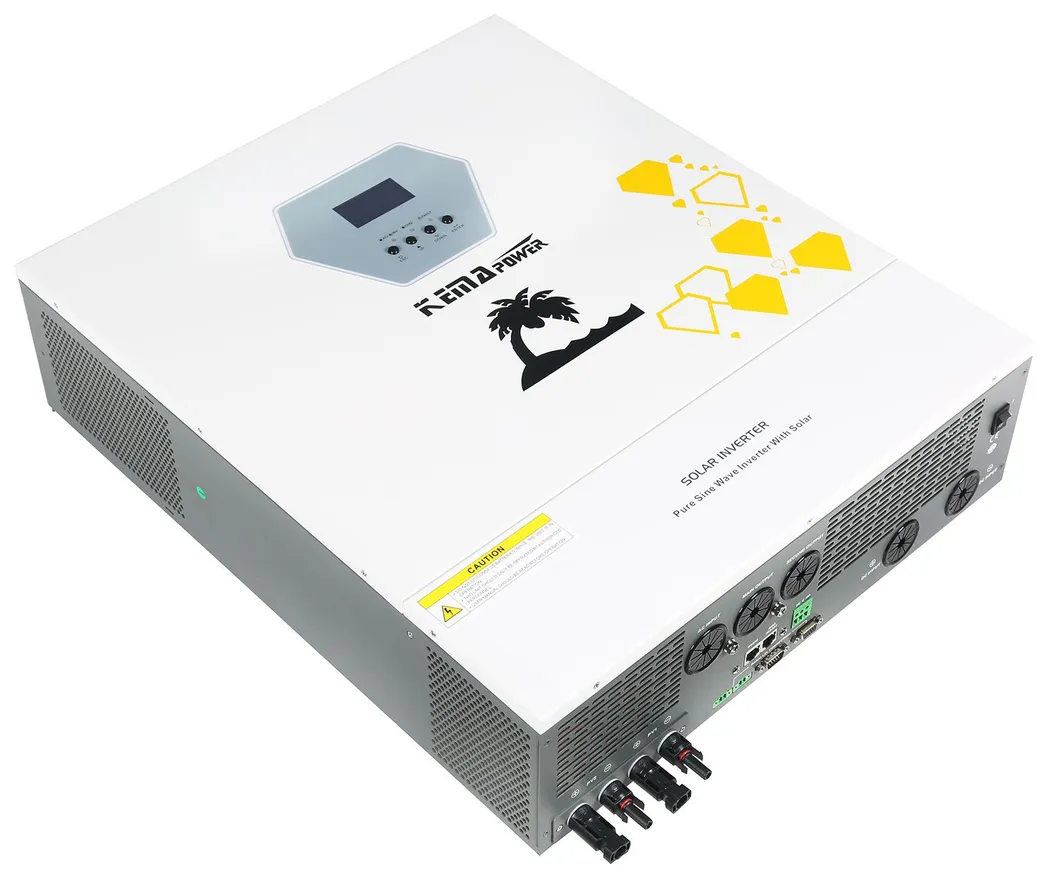

Interface Detail 1 Interface Detail 2

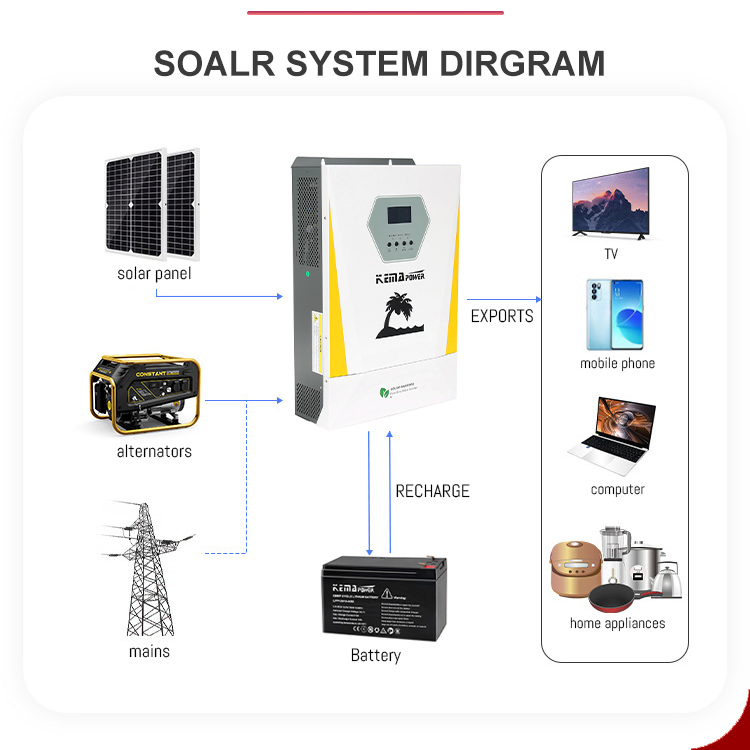

Detailed Diagram Working Principle
Frequently Asked Questions
Q1: Can this hybrid inverter work without a battery? A1: Yes, the SUB-D series is designed to operate without a battery during the daytime, powered directly by solar panels.

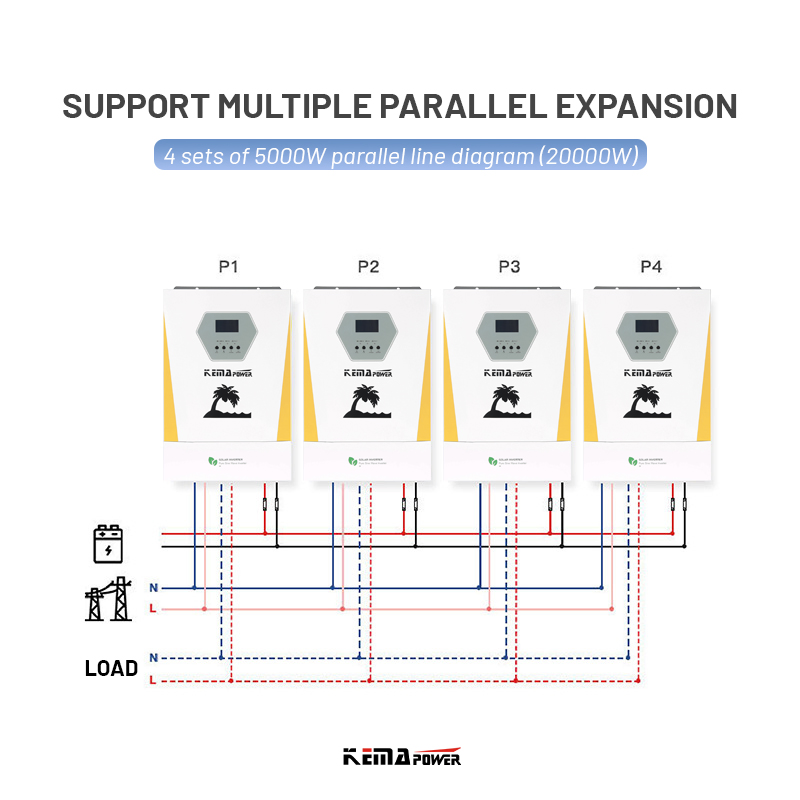

Q2: What is the maximum number of units that can be connected in parallel? A2: The 6.2KW and 11KW models support parallel expansion for up to 9 units.
Q3: Does it support remote monitoring? A3: Yes, it offers WiFi Plug or GPRS options for mobile app monitoring and status tracking.
Q4: What types of batteries are compatible? A4: The inverter supports both Lead-acid and Lithium batteries with adjustable charging current and voltage.
Q5: Is the output a pure sine wave? A5: Yes, it provides a pure sine wave output, making it safe and suitable for all types of sensitive home appliances.
Q6: What communication interfaces are available? A6: It comes equipped with RS232, BMS/RS485, and Dry Contact communication ports.
