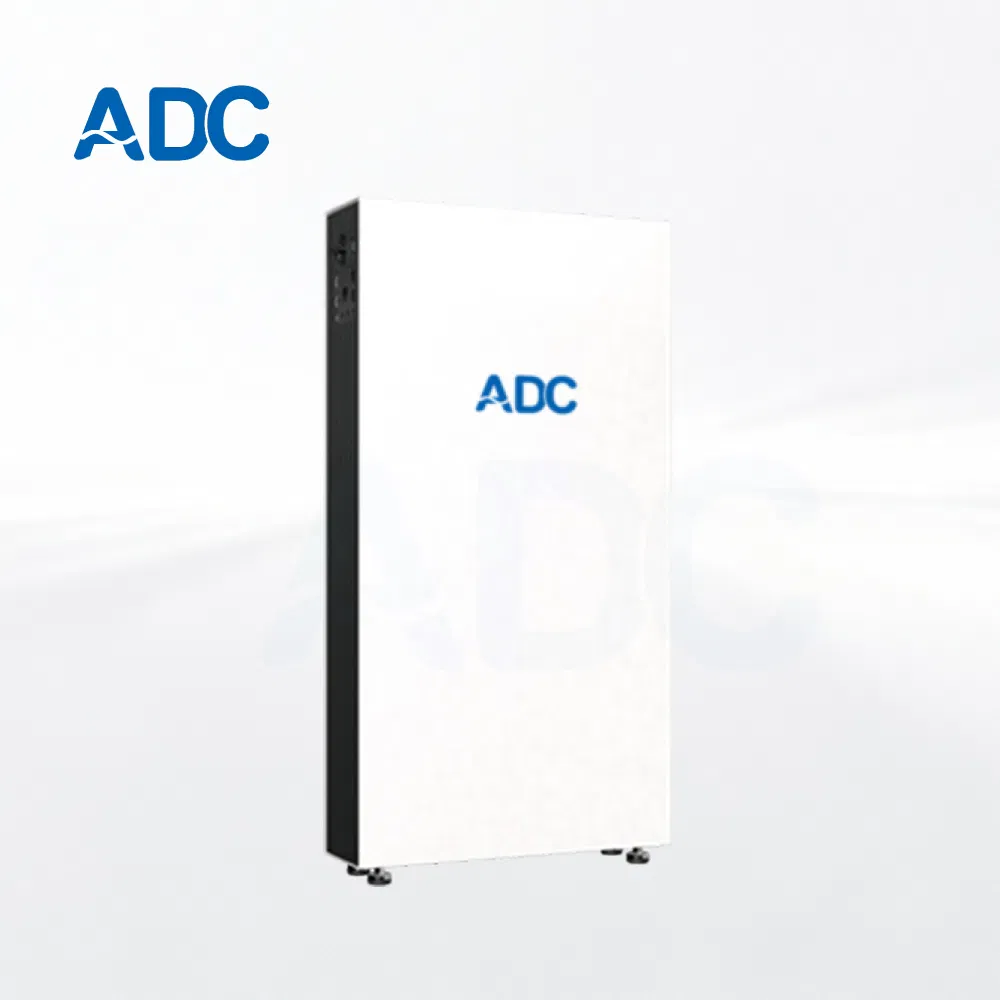

AC Coupled Bess 10kw/14kw Home Power Solar Battery Hybrid Energy Storage System
AC Coupled Bess 10kw/14kw Home Power Solar Battery Hybrid Energy Storage System
AC Coupled Bess 10kw/14kw Home Power Solar Battery Hybrid Energy Storage System
AC Coupled Bess 10kw/14kw Home Power Solar Battery Hybrid Energy Storage System
AC Coupled Bess 10kw/14kw Home Power Solar Battery Hybrid Energy Storage System
1 / 5
AC Coupled Bess 10kw/14kw Home Power Solar Battery Hybrid Energy Storage System
AC Coupled Bess 10kw/14kw Home Power Solar Battery Hybrid Energy Storage System
AC Coupled Bess 10kw/14kw Home Power Solar Battery Hybrid Energy Storage System
AC Coupled Bess 10kw/14kw Home Power Solar Battery Hybrid Energy Storage System
AC Coupled Bess 10kw/14kw Home Power Solar Battery Hybrid Energy Storage System

AC Coupled Bess 10kw/14kw Home Power Solar Battery Hybrid Energy Storage System

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Technical Specifications Overview
Model NO.
ADC-14kW
Cycle Life
8000 Cycles
Nominal Capacity
16kwh
Power
8kw 12kw
Cooling Method
Liquid Cooling
Battery Type
Lithium-Ion Battery
Inverter
Hybrid Inverter
Package Size
1220 * 670 * 188 cm
Gross Weight
168.000kg
Protection
IP65
Product Description

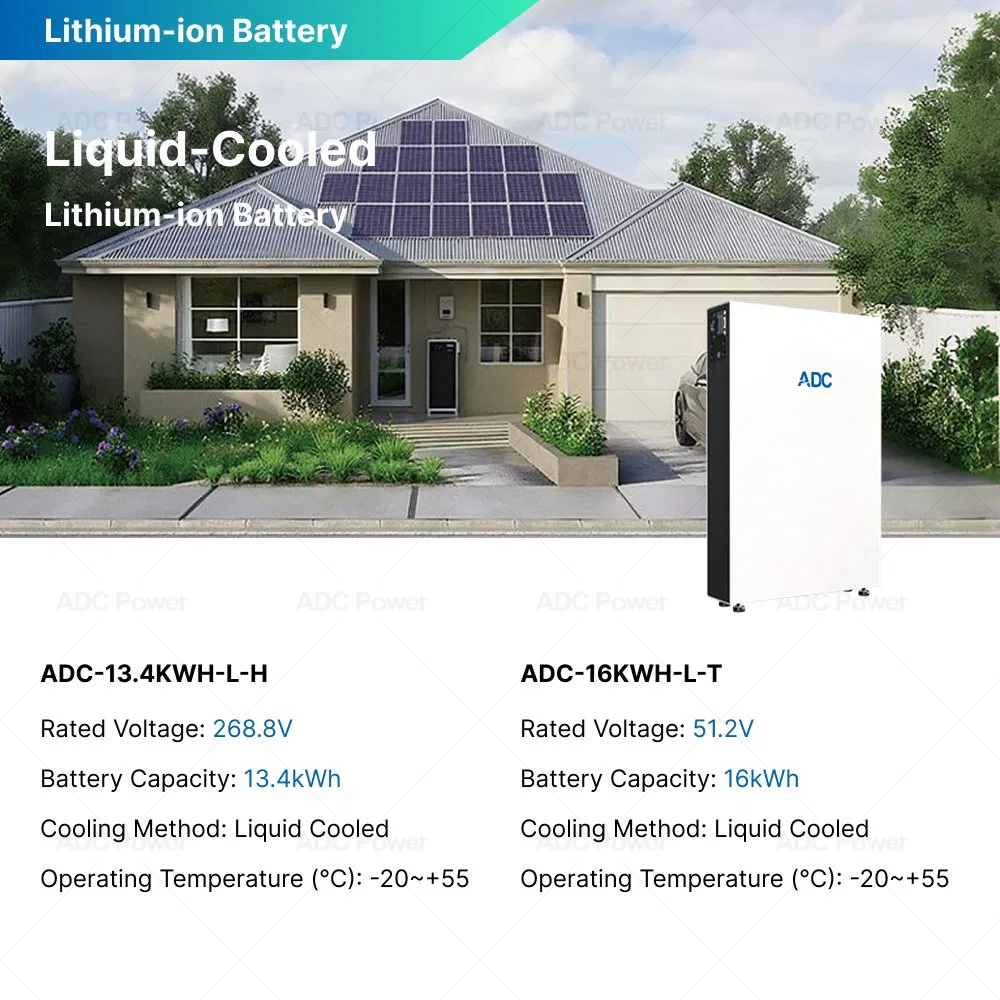

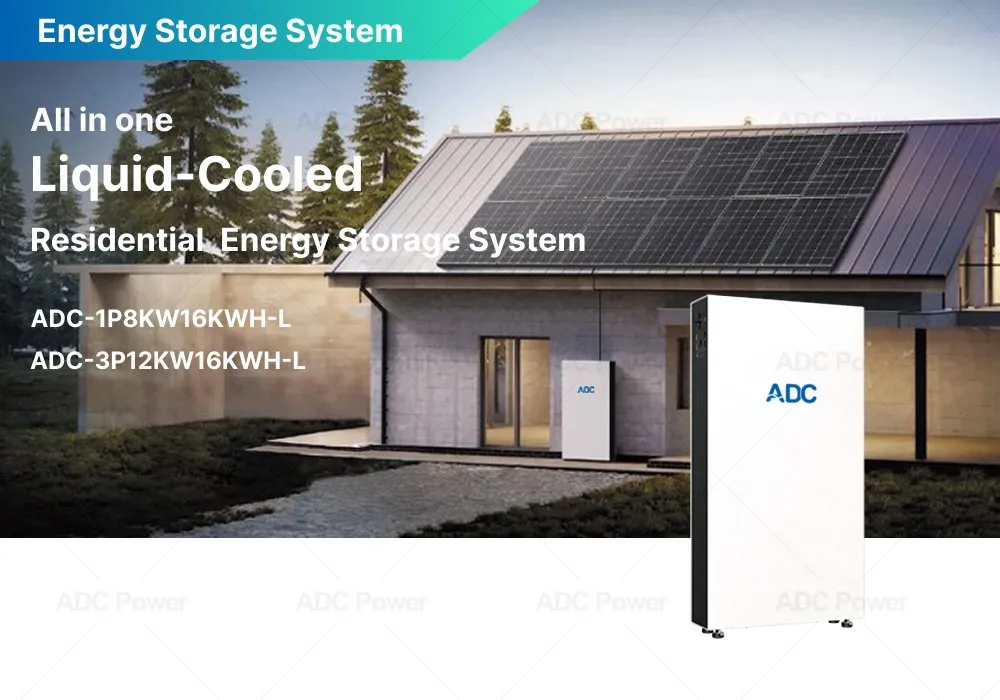

All in One Residential Energy Storage System
Residential ESS

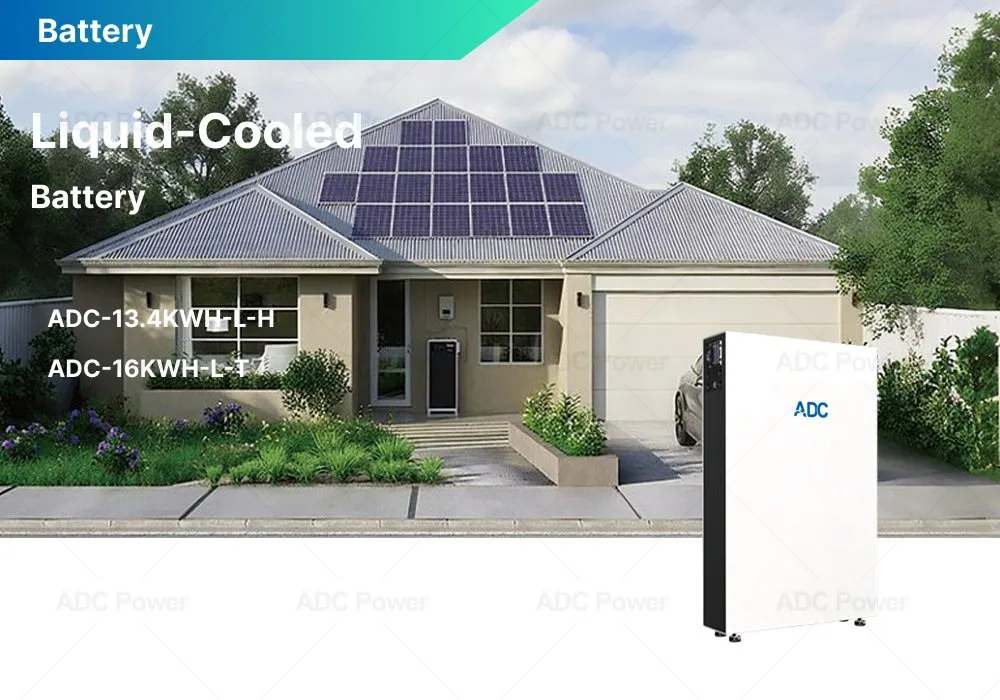

Liquid Cooling System
  • Fully Liquid-Cooled All-in-One Design: Ensures efficient heat dissipation, temperature uniformity, and long-term system reliability for both inverter and battery.
  • Single-Phase and Three-Phase Options: Available in 12 kW / 16 kWh (Single-Phase) and 8 kW / 16 kWh (Three-Phase) versions.
  • Hybrid On-Grid and Off-Grid Operation: Supports seamless self-consumption and emergency backup power.
  • Solar-Ready Integration: Direct connection to PV panels for integrated solar generation.
  • Low-Voltage Safety: 46.4–57.6 V range for simplified maintenance and high safety standards.
  • IP65 Rated: Full dust and water protection suitable for outdoor installation.

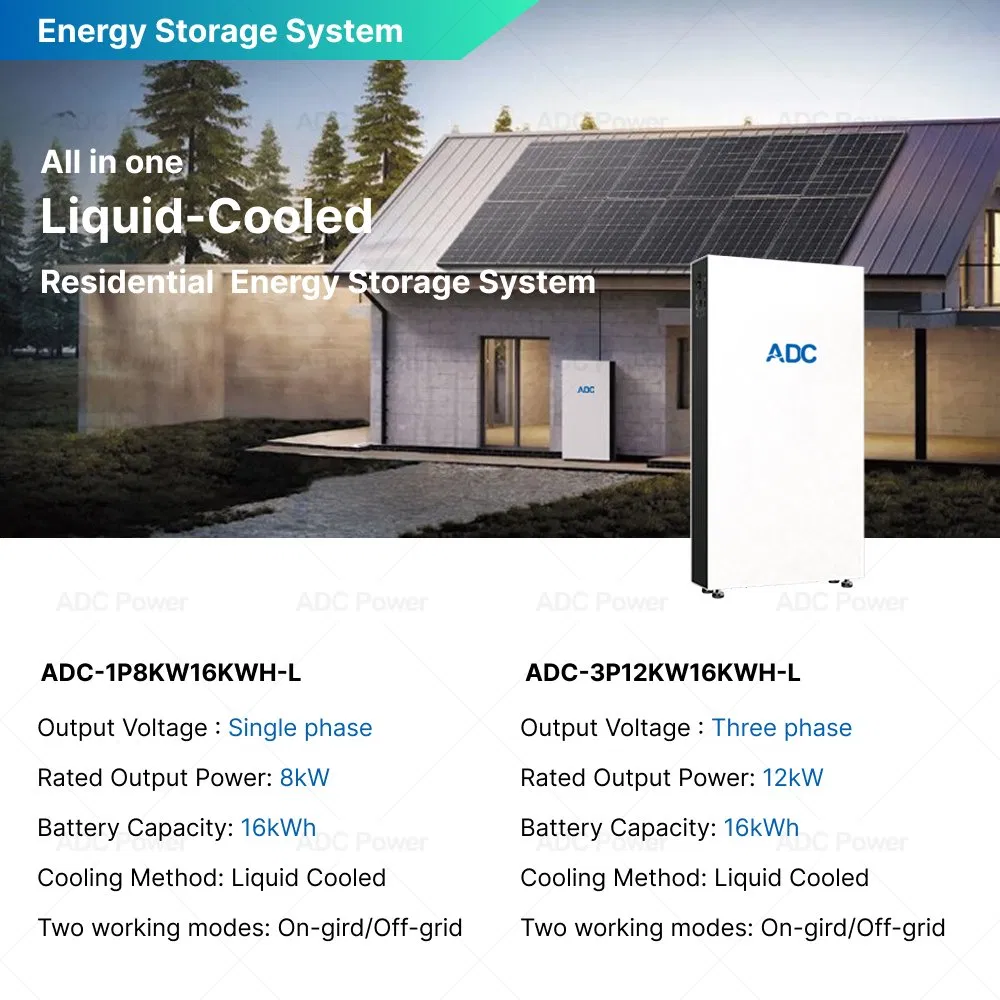

Technical Comparison Data
Parameters Details ADC-1P8KW16KWH-L ADC-3P12KW16KWH-L
PV Input Max String Power 12000Wp 15600Wp
Max Voltage 500V 800V
Battery Capacity 16076Wh 16076Wh
Max Charge/Discharge 250A / 250A 250A / 250A
AC Output Rated Power 8000W 12000W
Grid Type Single Phase Three Phase
Company Profile

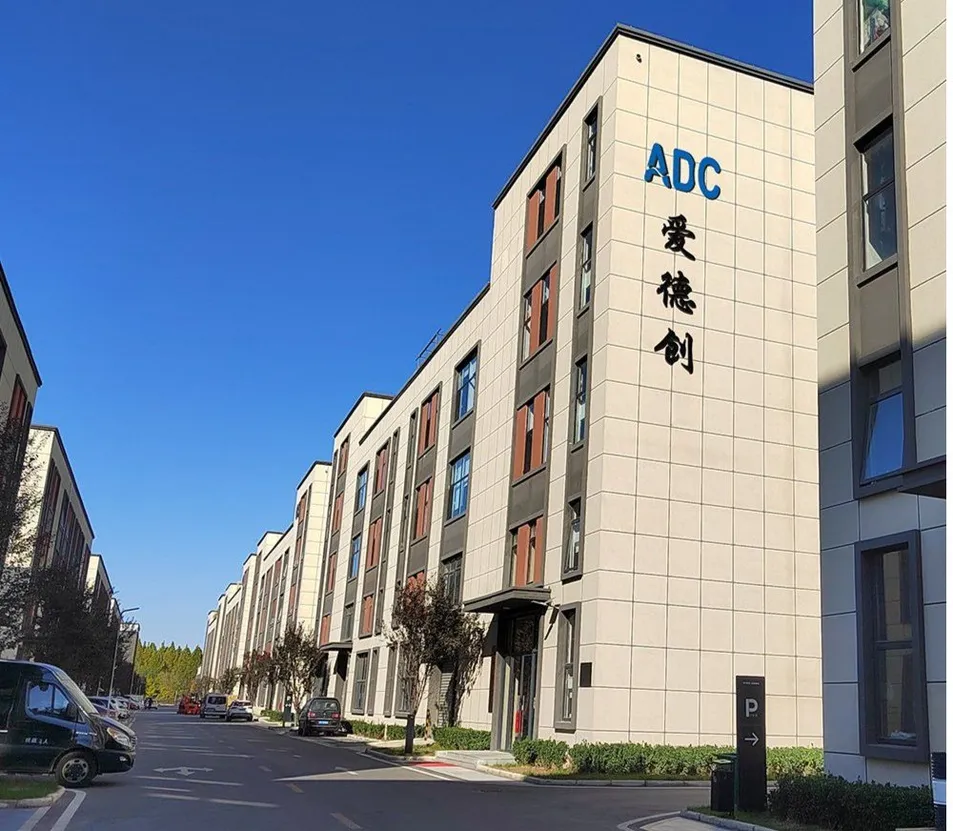

R&D Center

With over 20 years in power technology, we specialize in AC to DC, DC to AC, battery monitoring, solar power, and new energy system developments. Our facilities include a 40,000 m² production space and are supported by over 70 R&D engineers.

Core Solutions: Industrial chargers, EV DC fast chargers, Hybrid inverters, and complete BESS monitoring systems. Our ISO9001 and ISO14001 certifications ensure premium quality and timely delivery for global markets including Europe, Middle East, and Asia.

Production Line

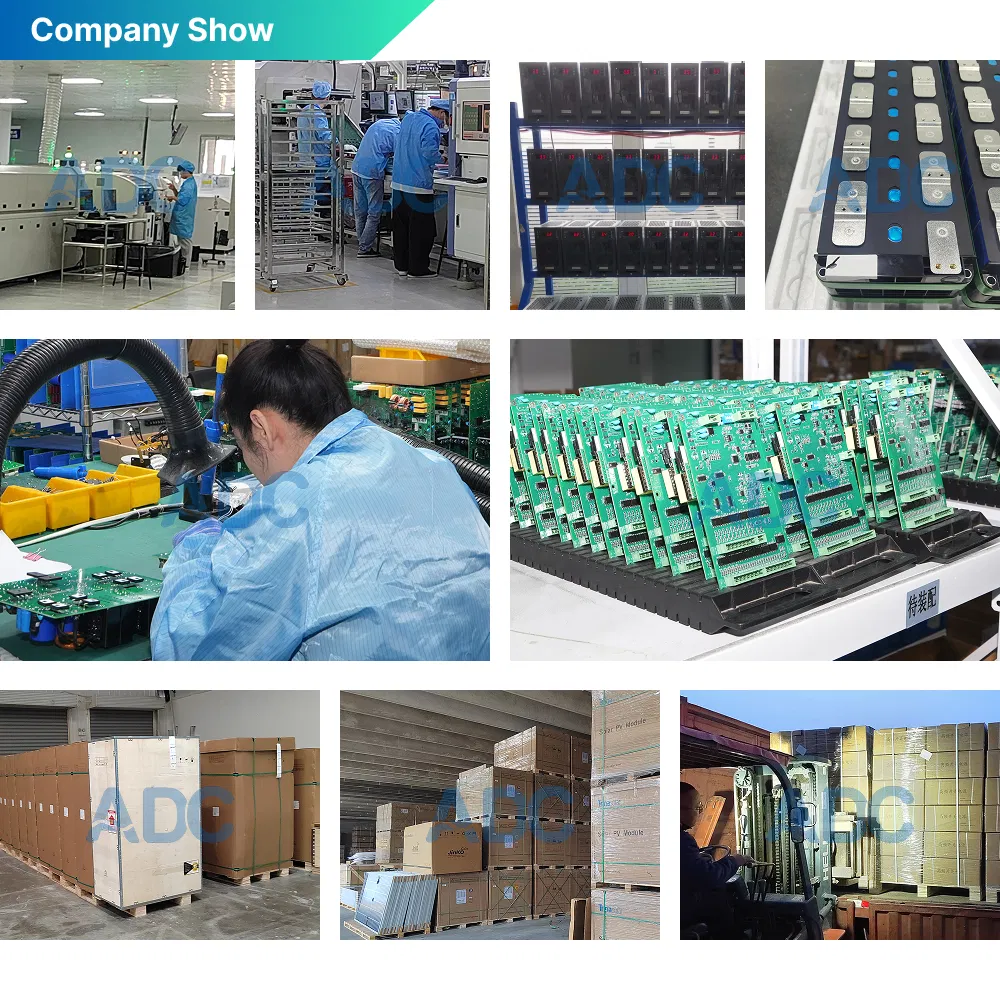

Quality Control
Certifications
Product Certifications
Frequently Asked Questions
Q: Are you a manufacturer or a trading company?
A: We are a manufacturer with a 40,000 m² production facility, specializing in power technology for over 20 years.
Q: What is the delivery time for bulk orders?
A: Normally, we require about 15 days to prepare goods. Large quantities or customized OEM/ODM orders may take slightly longer.
Q: Do you test the products before delivery?
A: Yes, we conduct 100% testing on all goods before shipment to ensure system reliability and safety.
Q: What are your shipping methods?
A: We offer flexible shipping via sea, air, or land (DHL, TNT, UPS, FEDEX) based on the actual requirements and situation.
Q: What is the warranty period for the Energy Storage System?
A: Our standard warranty is 24 months upon receipt of shipment under normal operating circumstances.
Q: Do you support OEM/ODM services?
A: Yes, we provide full OEM/ODM services to meet customized technical specifications and branding needs.
