60W Commercial Lighting off-Grid LED Solar Street Light All in One Design for Road Lighting

Still deciding? Get samples of $ !
Order Sample

Product Description

Solar Street Light Overview
Basic Specifications
Model NO.SSTL-027-60Light TypeSolar
Lamp Body MaterialAluminum AlloyColor TempCool/Warm/Pure White
Power≥30W, 60WIllumination Time12h
Cell TypeLiFePO4Charging Time6H
IP RatingIP65CertificationCE, RoHS
LED SourceSMD3030×150PCSBeam Angle150°×80°
Solar Panel50W MonoInstallation Height6-7m
Product Description

All-in-one solar street light 027 series combines modern design with advanced photovoltaic technology. It integrates the luminaire, monocrystalline solar panel, and A1-grade LiFePO4 battery into a single, cable-free housing that simplifies installation and enhances aesthetic appeal. Crafted from die-cast aluminum with a nano-coated finish, it provides superior corrosion resistance.

Delivering over 160 lm/W, its high-lumen LEDs project a precision bat-wing light distribution. The smart MPPT controller optimizes energy capture while automatically adjusting brightness via motion sensors.

Design Detail

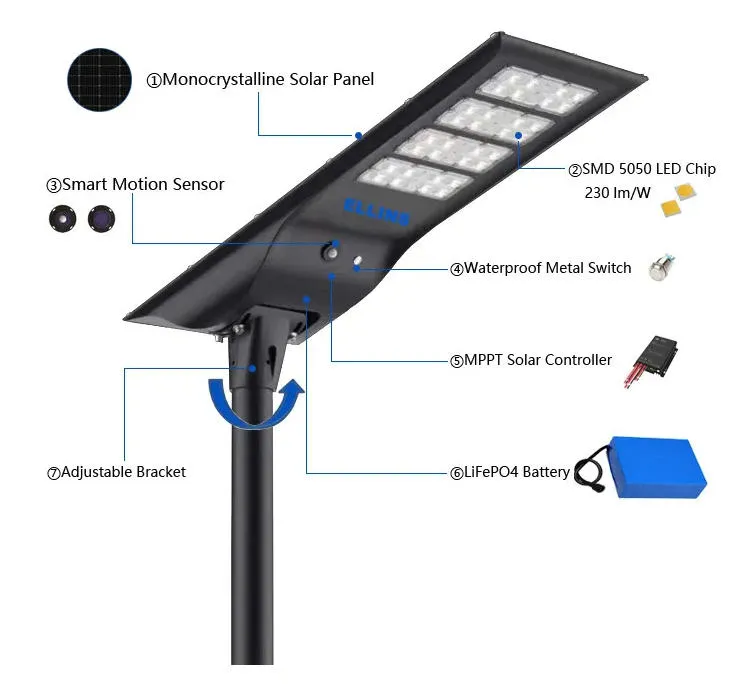

Component View
Key Features & Advantages
Integrated Design: Streamlined housing ensures broad compatibility and tool-free installation.
Durable Construction: 6063-T5 aluminum alloy for high strength and corrosion resistance.
Smart Control: Built-in microwave radar induction and intelligent segmented time control.
Efficient Charging: High-performance monocrystalline panels enhance conversion rates.

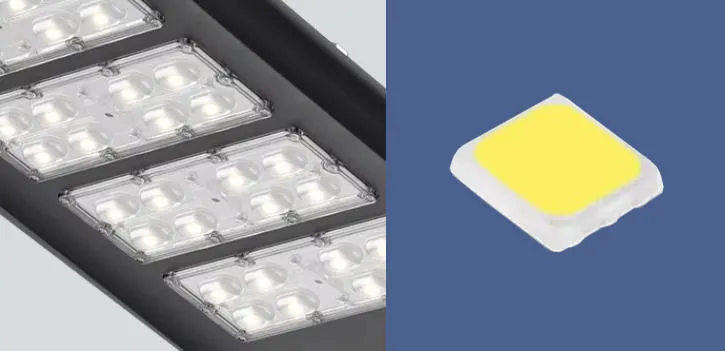

LED Chips

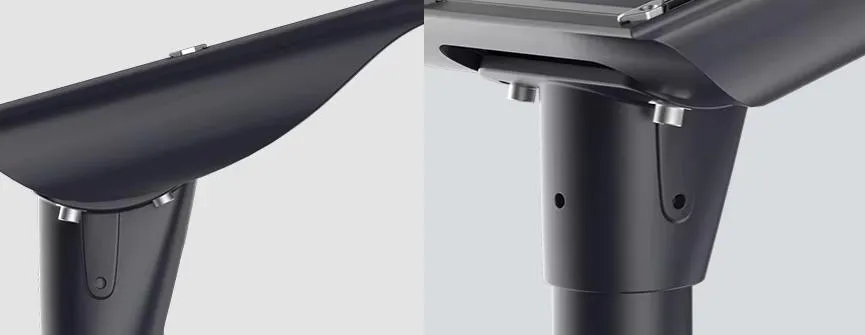

Housing Detail

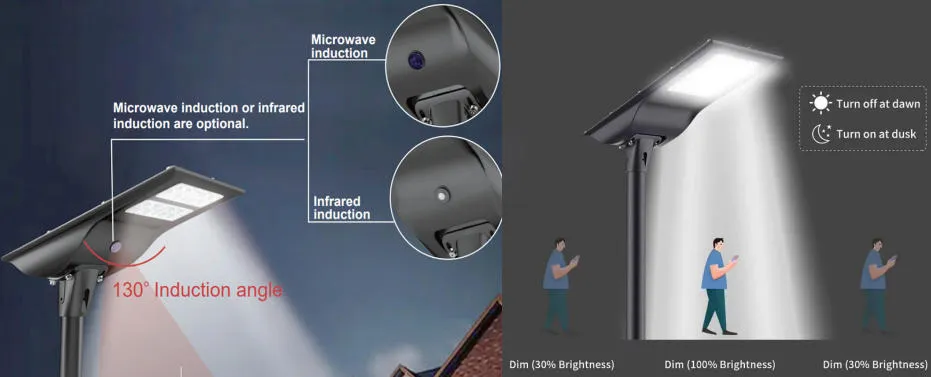

Lighting Modes
Technical Specifications
Model ZD-SSTL-027-040 ZD-SSTL-027-060 ZD-SSTL-027-080
Power 40W 60W 80W
Solar Panel 40W Mono 50W Mono 65W Mono
Battery 116WH 3.2V 192WH 3.2V 240WH 3.2V
IP Rating IP65 IP65 IP65
Full Range
Frequently Asked Questions
Q1: What is an all in one solar street light?

A: It is an integrated system combining the solar panel, lithium battery, controller, and LED source into one compact unit for easy installation without external wiring.

Q2: How many hours can it work at night?

A: Depending on battery capacity and sunlight, it typically provides 8–24 hours of continuous lighting after a full charge.

Q3: Can it work during rainy or cloudy days?

A: Yes, the built-in LiFePO4 battery is designed to support 2–5 consecutive rainy or cloudy days depending on the configuration.

Q4: What installation height is recommended?

A: Recommended height ranges from 5 to 12 meters, depending on the wattage and specific road requirements.

Q5: Does it support motion sensing?

A: Yes, these lights feature PIR/Microwave motion sensors and intelligent dimming to maximize energy efficiency.

Q6: What certifications are available?

A: Our products comply with international standards including CE and RoHS for global export requirements.
