📊 Basic Information
Nature of Source
DC/AC Inverter
Certification
SAA, CE, ROHS, ISO9001, CCC
Circuit Topologies
Half-Bridge Type
Wave String
Sine Wave Inverter
Output Voltage
120V/230V Adaptive
Communication
WiFi / Mobile APP
📝 Product Description

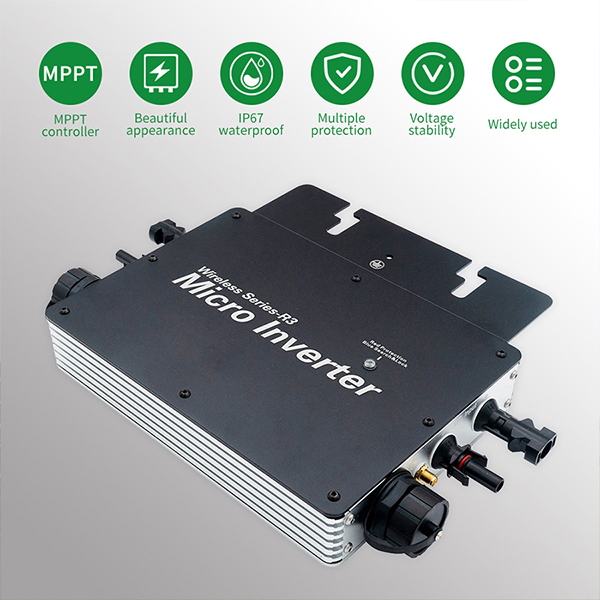

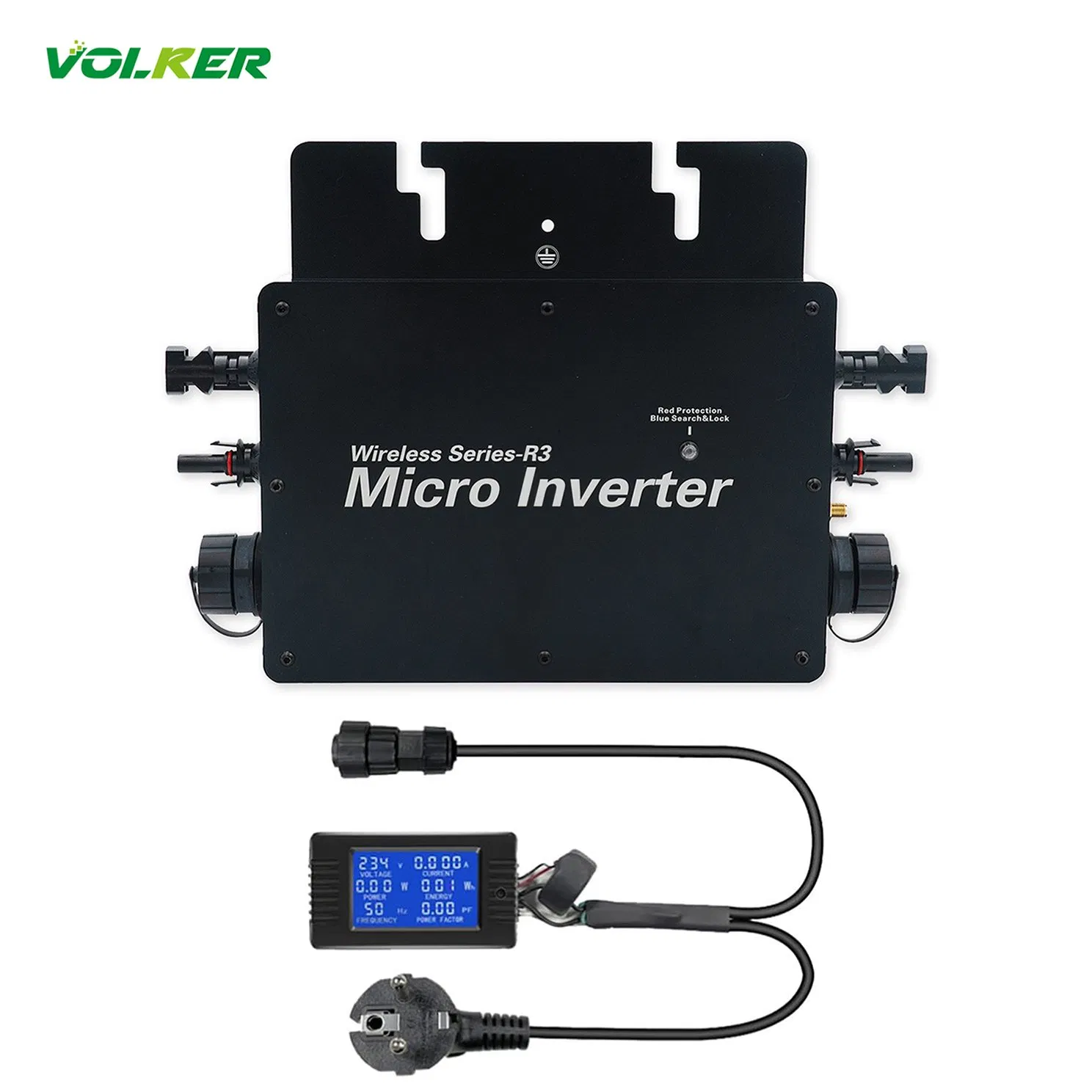

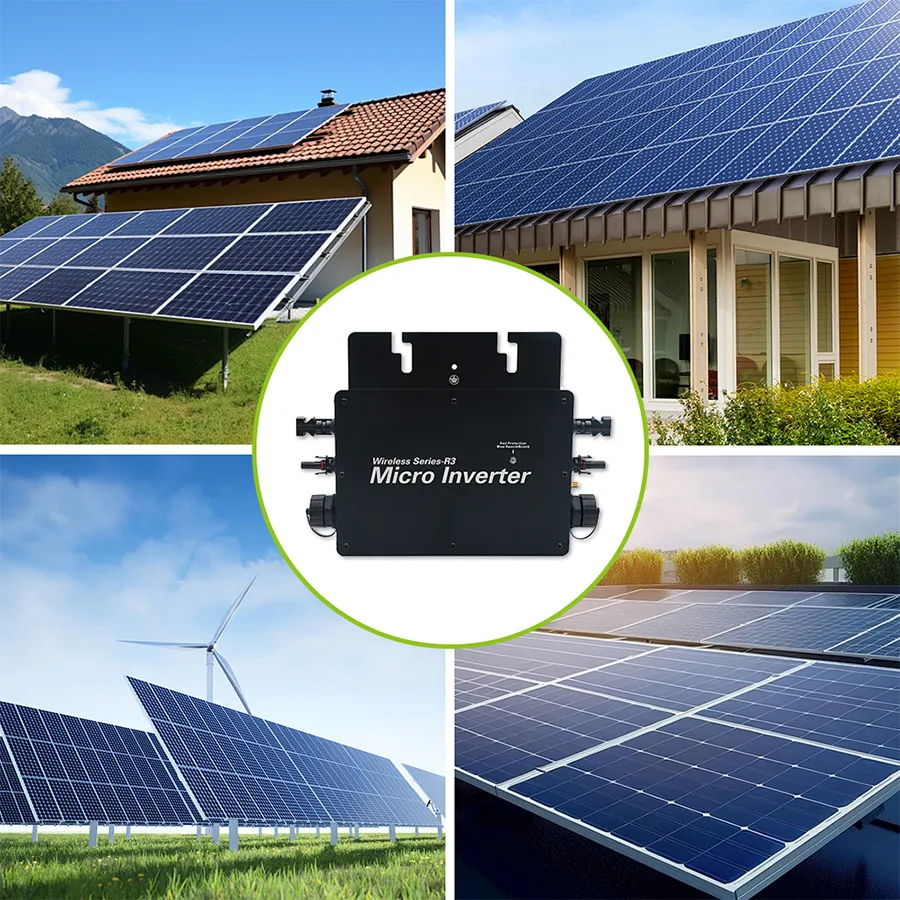

600W Solar Grid Tie Micro Inverter Solar Inverter 120V 230V Microinverter.

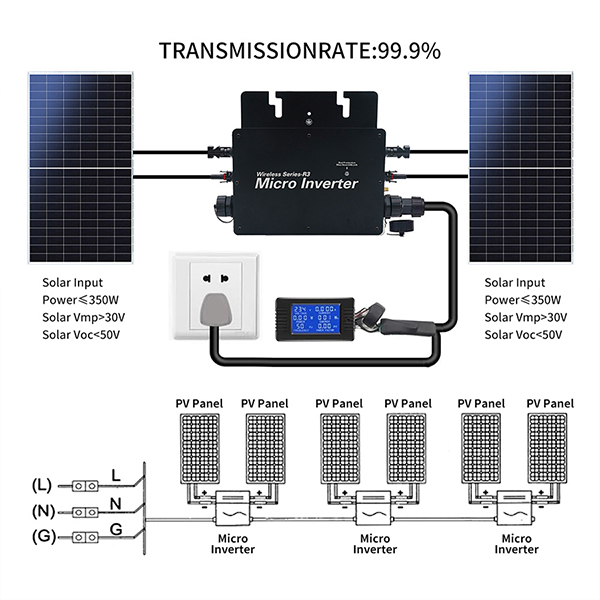

Low price solar mini on grid inverter is 600W power capacity, transfers 24 volt or 48 volt DC to 120 volt/ 230 volt AC.

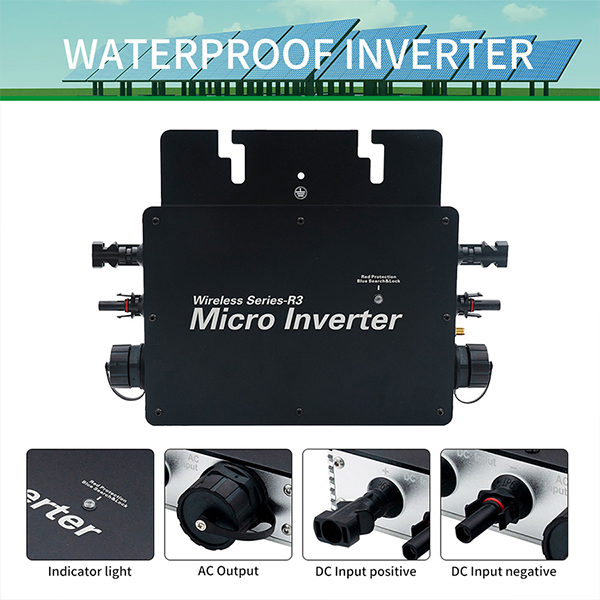

Input/output is fully isolated to protect electrical safety and uses IP65 waterproof streamlined design to effectively prevent rainwater.
⚙️ Technical Parameters
| Model |
VMI-600W |
| Maximum input power |
2*375 Watt |
| PV Open circuit voltage |
30-54VOC |
| Operating voltage range |
22-60V |
| Output Parameters |
@120V |
@230V |
| Output peak power |
600 Watt |
600 Watt |
| Rated output power |
580 Watt |
580 Watt |
| Max output efficiency |
95% |
95% |
| Static MPPT efficiency |
99.5% |
99.5% |
| Waterproof grade |
IP65 |

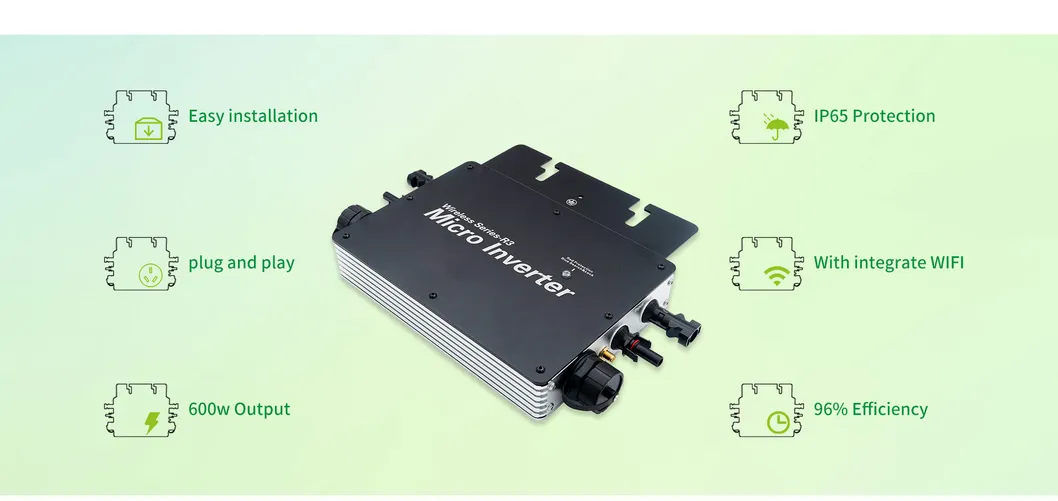

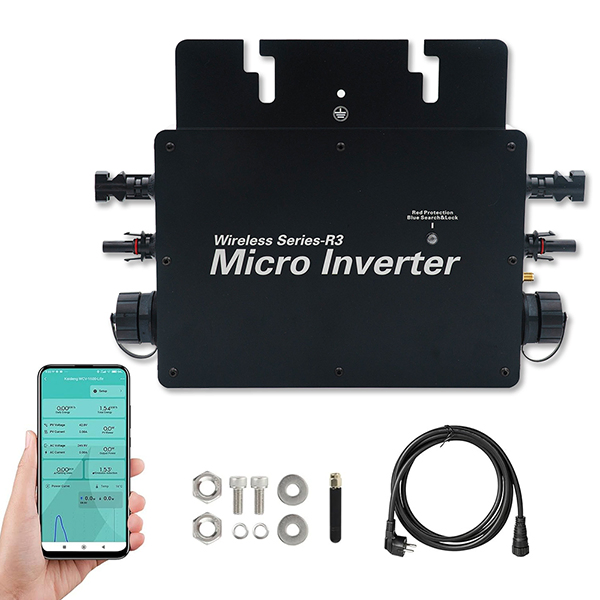

🖼️ Product Showcase
Expert Tip: Many low-cost solar inverters are assembled in small unlicensed workshops to reduce costs. Use of substandard components poses security risks. For your safety, please choose a reliable inverter with proven certifications.
❓ Frequently Asked Questions
How is the quality of the micro-inverters guaranteed?
Quality is ensured through a rigorous process including pre-production samples before mass production and a final inspection before every shipment.
What types of inverters are available?
We provide a wide range of power solutions including pure sine wave inverters, modified inverters, hybrid inverters, micro-inverters, and PCBA modules.
What are the advantages of choosing these inverters?
With 12 years of industry experience and 20 professional engineering teams, our products carry CE, RoHS, and ISO9001 certifications, backed by long-term technical service.

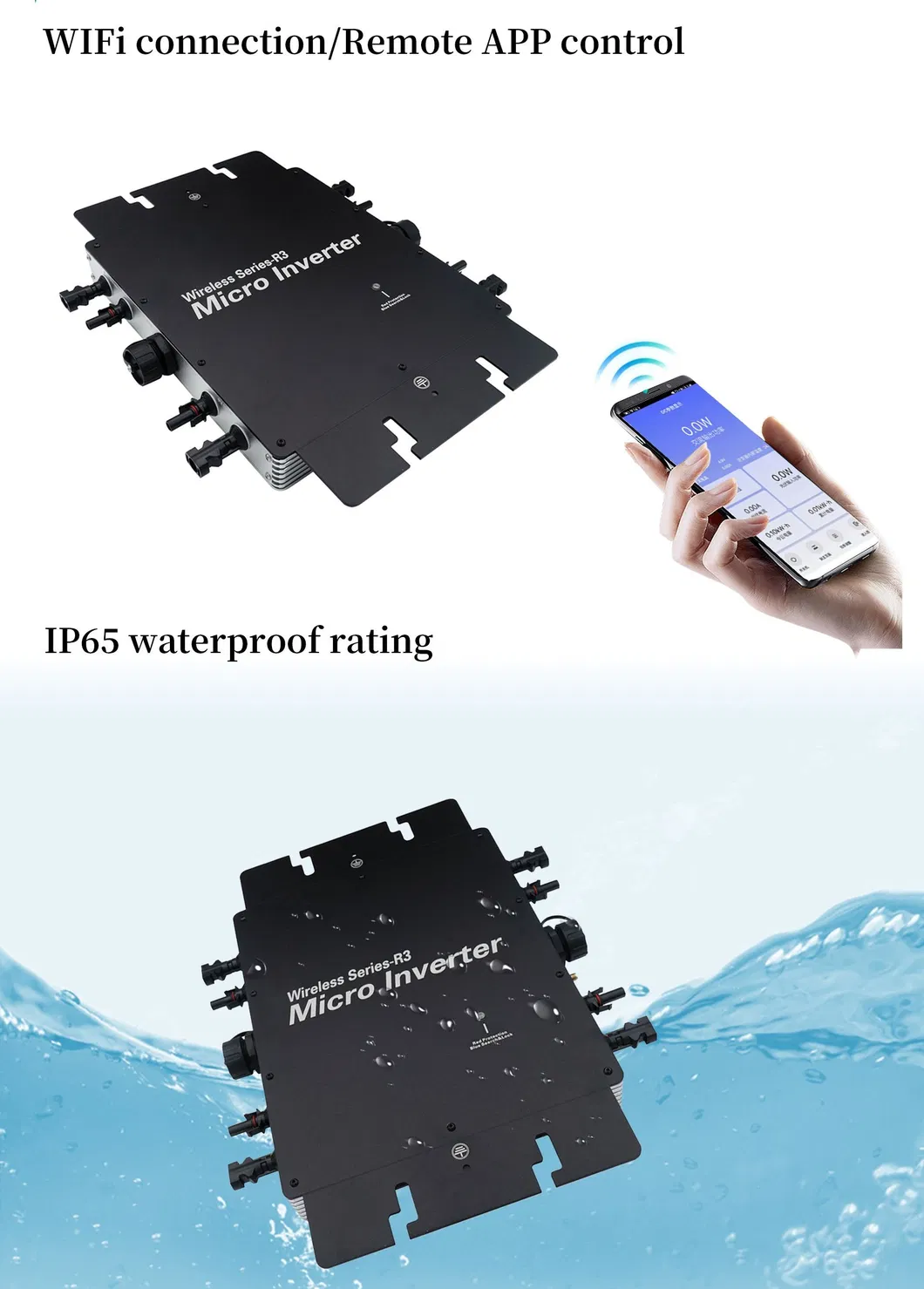

What is the waterproof rating of the 600W micro inverter?
The inverter features an IP65 waterproof streamlined design, which effectively prevents rainwater infiltration and ensures outdoor durability.

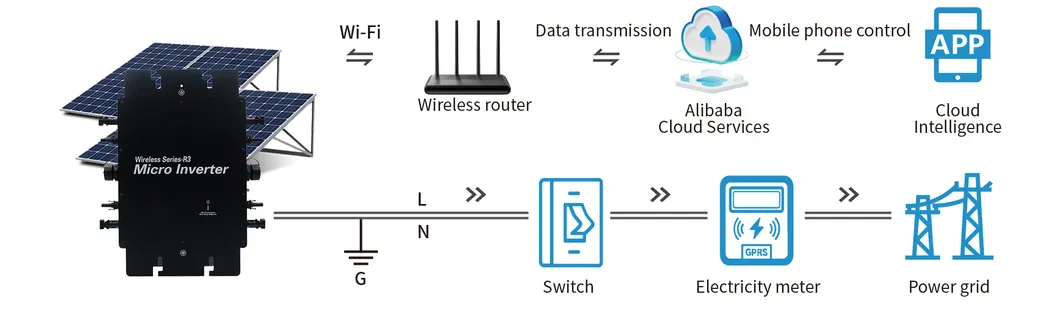

Can I monitor the system performance remotely?
Yes, the system supports WiFi communication and can be monitored via a dedicated mobile phone APP for real-time data tracking.

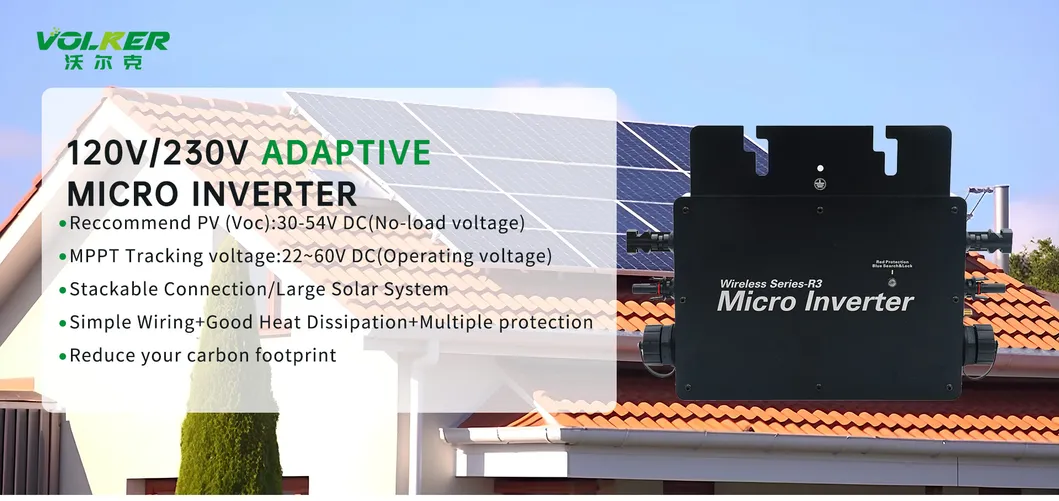

Is the output voltage adjustable?
The VMI-600W features an adaptive output voltage model, capable of auto-switching between 120V and 230V to suit your grid requirements.
