5kw on Grid Inverter for Solar System Grid Tie
5kw on Grid Inverter for Solar System Grid Tie
1 / 2
5kw on Grid Inverter for Solar System Grid Tie
5kw on Grid Inverter for Solar System Grid Tie

5kw on Grid Inverter for Solar System Grid Tie

Customization: Available
After-sales Service: Yes
Phase: Three
Send Inquiry

Product Description

Basic Information
Model NO.:ED-On-inverter
Output Power:>1000W
Certification:SAA, CE, ROHS, ISO9001, CCC
Type:DC/AC Inverters
Power Source:Solar Power
Battery Voltage:48VDC
Grid:on Grid
Origin:China
Product Description
5kw on Grid Inverter

Designed specifically for off-grid solar power systems, our inverter ensures a seamless transition to clean and sustainable energy. Built to provide exceptional performance and reliability, it converts the DC power generated by solar panels into AC power for your home or business. Featuring a high power capacity of 5KW, it handles the demands of various appliances, ensuring an uninterrupted power supply.

Key Features & Details

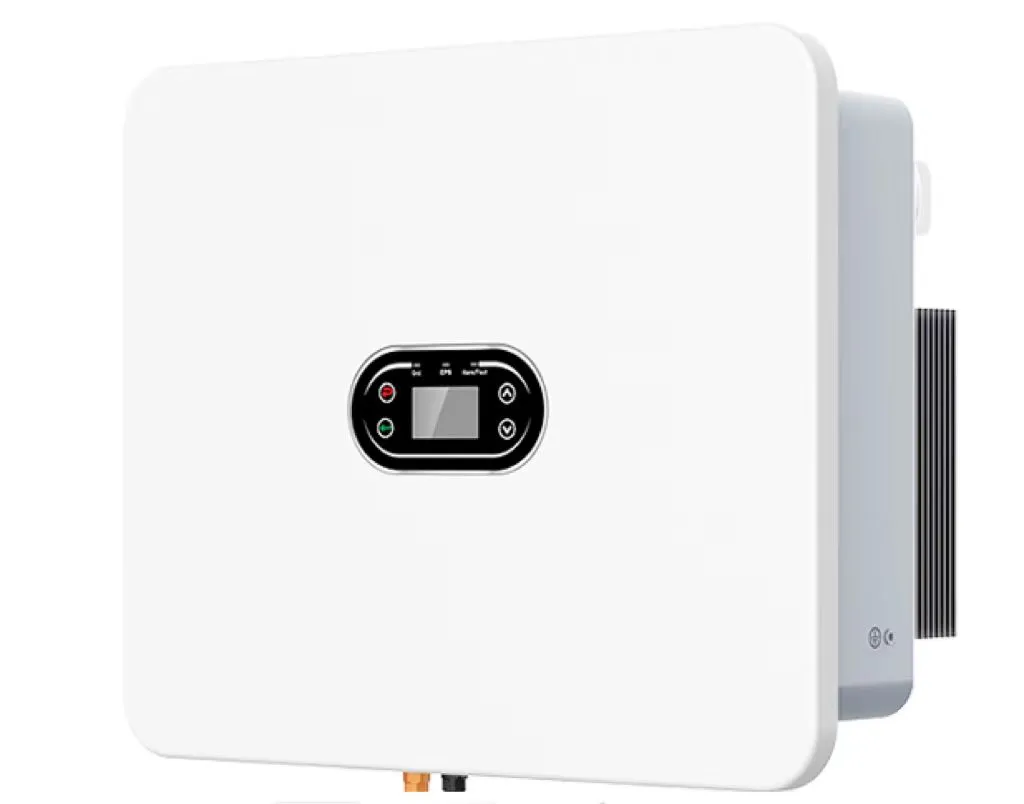

Inverter Detail
  • Optional Remote Control Panel available
  • Compatible to mains voltage or generator power
  • Overload and short circuit protection
  • Pure sine wave inverter
  • Smart battery charger design
  • Built-in MPPT solar charge controller
  • Auto restart while AC is recovering

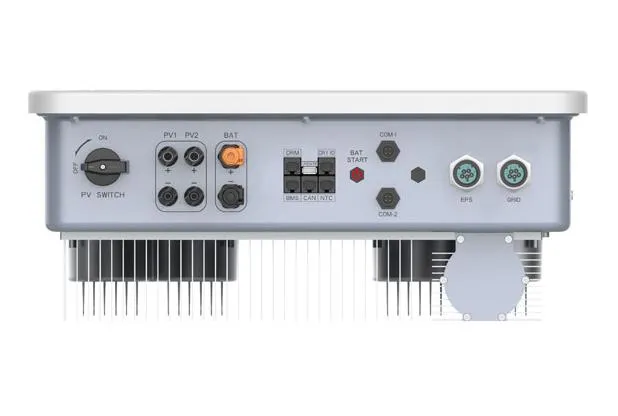

Technical Layout
Product Parameters
ED5K-TL
Input (DC)
Max. Input Power7.5kW
Max. Input Voltage600V
Rated Input Voltage360V
Number of MPP Trackers2
Output (AC)
Rated Output Power5kW
Max. Output Power5.5kVA
Rated Grid Voltage220Vac/230Vac/240Vac
Efficiency
Max. Efficiency98.30%
MPPT Efficiency99.90%
General Data
Dimensions (W*H*D)380*380*160mm
Protection DegreeIP66
Factory & Production

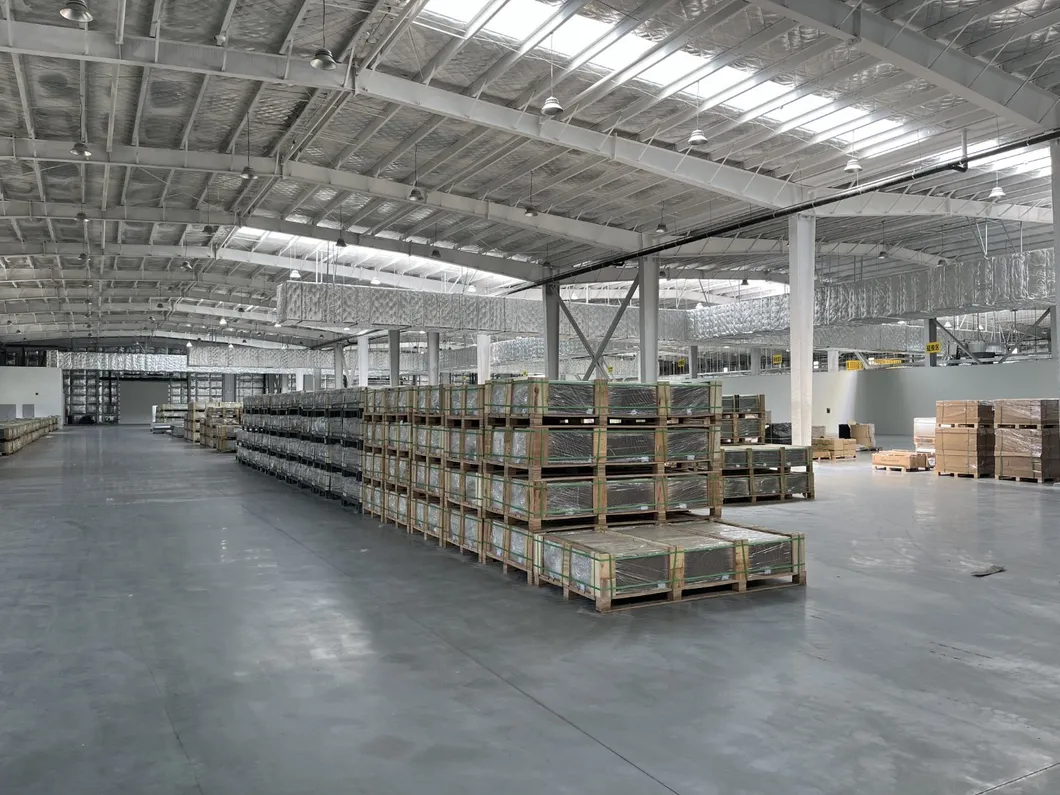

Factory View
Packaging & Shipping
Packaging
Completed Projects

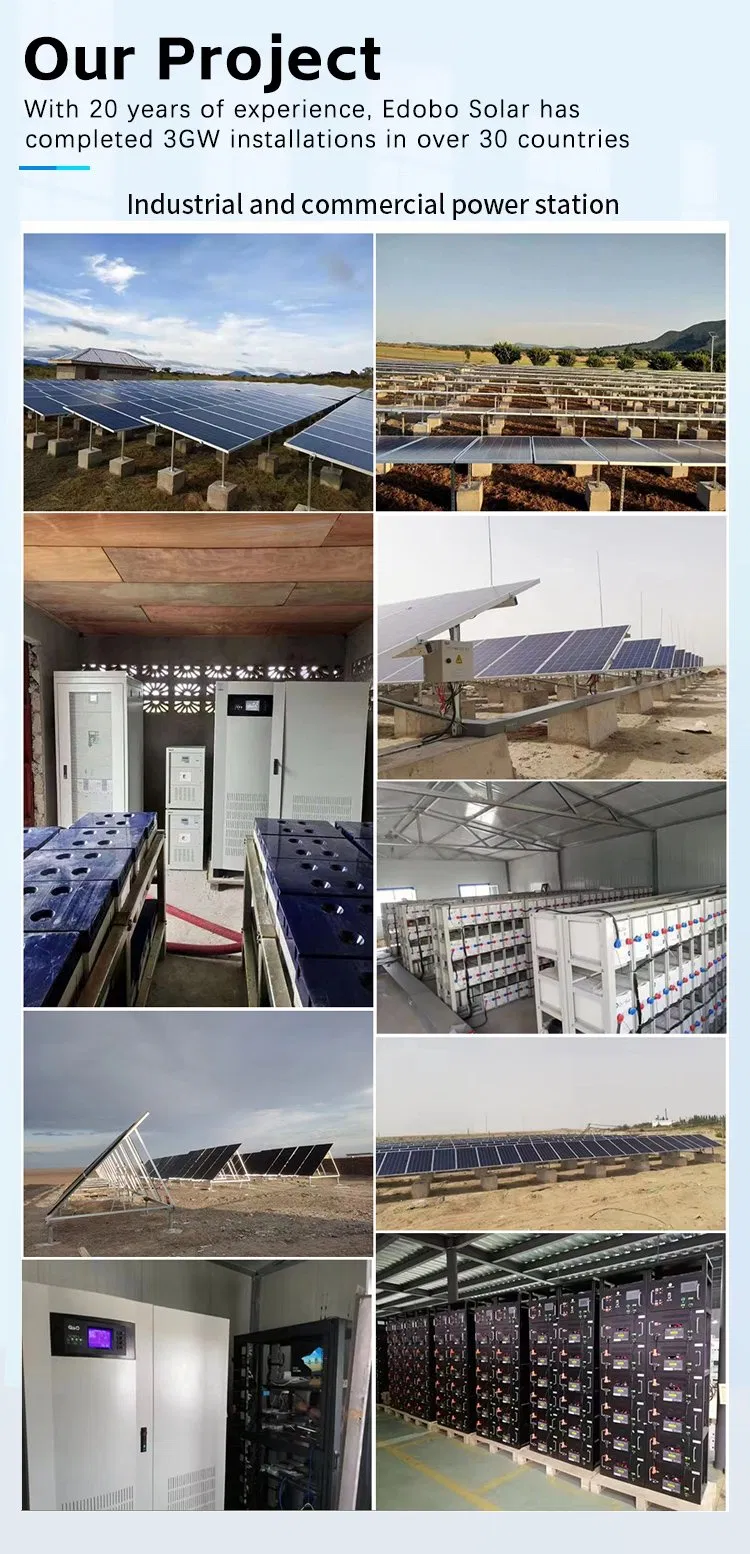

Project Cases
Frequently Asked Questions
Q1: What is the Minimum Order Quantity (MOQ)? A: Our required MOQ is 1 unit.
Q2: Are you a manufacturer or a trading company? A: We are professional manufacturers of solar panels and batteries, and also act as a trading company for solar inverters and charge controllers.
Q3: Can you help design a system for industrial or commercial use? A: Yes, our professional technology team has over 10 years of experience and can design solar power systems according to your specific requirements.
Q4: What certifications do your products have? A: All of our products are certified with CE, RoHS, and ISO9001:2008 standards.
Q5: Why should I choose your solar inverters? A: We offer prompt delivery, competitive pricing through our own factory, 100% new high-quality materials, and support from a veteran R&D team.
Q6: Do you provide after-sales service? A: Yes, we pride ourselves on providing excellent after-sale services and technical support.
