Product Description

High Power Output 530W Monocrystalline Solar Module
Basic Specifications
Model NO.VSMH-M-530
ApplicationIndustrial
CertificationEST, ISO, CB, CE, TUV
MaterialMonocrystalline Silicon
Power530W
Cell144 PCS
Open Circuit Voltage49.30V
Vmp41.31V
Weight23kg-25kg
Specification2279*1134*35MM
Product Description
Solar Panel Front
Solar Panel Detail
Solar Panel Back

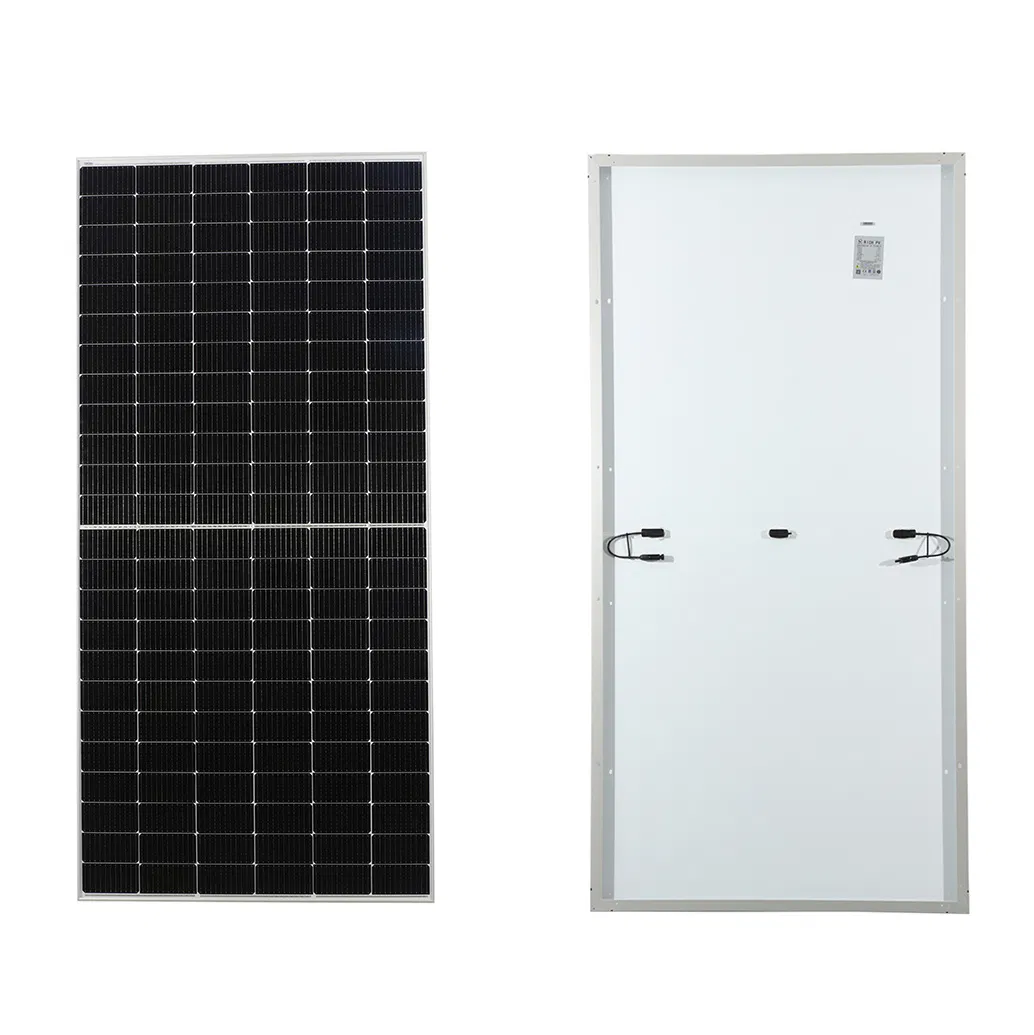

Feature Image
  • High efficiency monocrystalline solar panel manufactured to the highest quality and performance standards
  • Great for all grid connected or off grid systems on ground power plants and rooftops
  • Suitable for standalone off-grid solar power systems with batteries
  • Tough, sealed aluminium frame perfect for all weather conditions
  • Includes solar cable designed for high temperatures with minimum power loss
Mechanical & Operating Parameters
Junction BoxIP68, 3 diodes
Output Cable4mm², 300mm length
Glass3.2mm coated tempered glass
FrameAnodized aluminum alloy
Operating Temp-40°C~85°C
Static Loading5400Pa (Front) / 2400Pa (Back)
Max System VoltageDC1500V/1000V
Module Efficiency20.50%

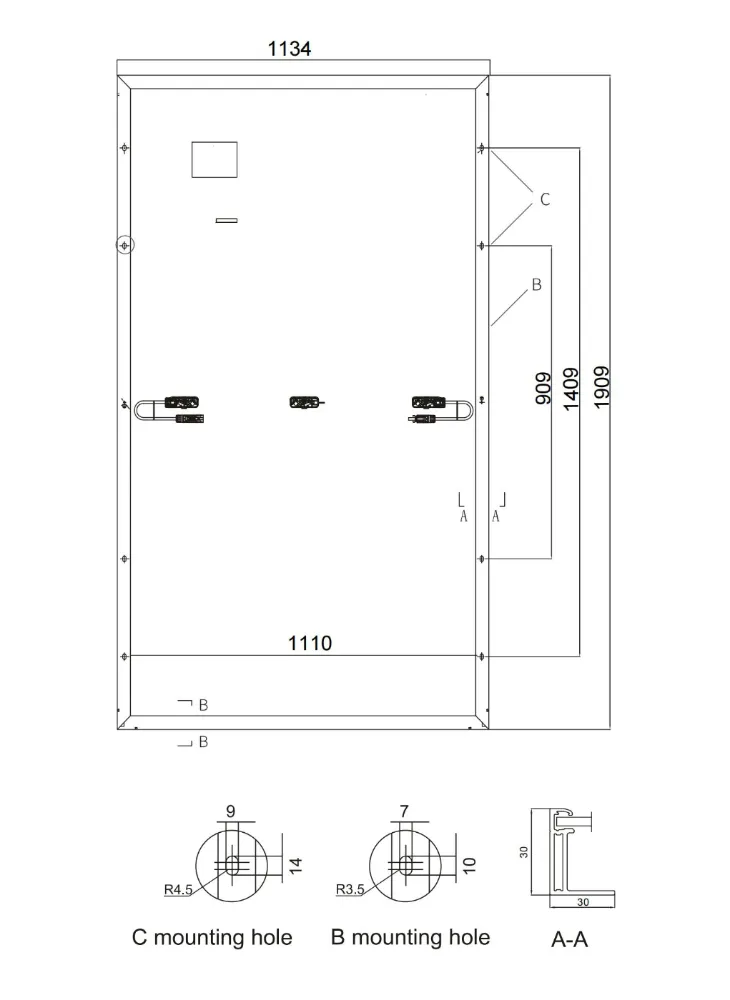

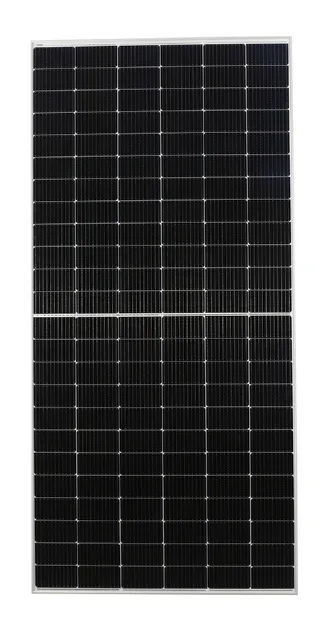

Dimensions
Efficiency Curve
Product Usage & Manufacturing
Application Scene
Installation 1

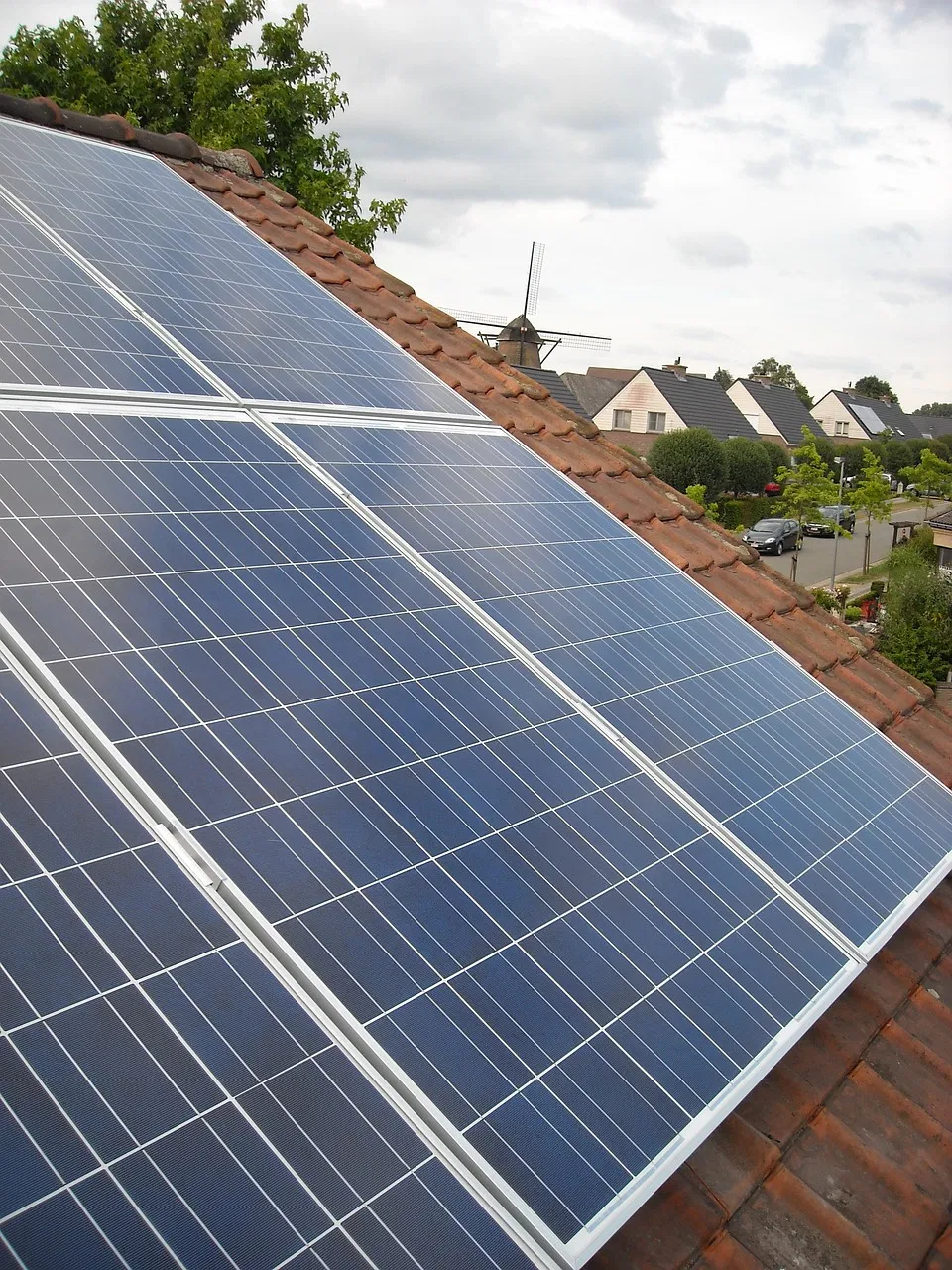

Installation 2

Facility covers an area of 7000 square meters with professional warehousing.

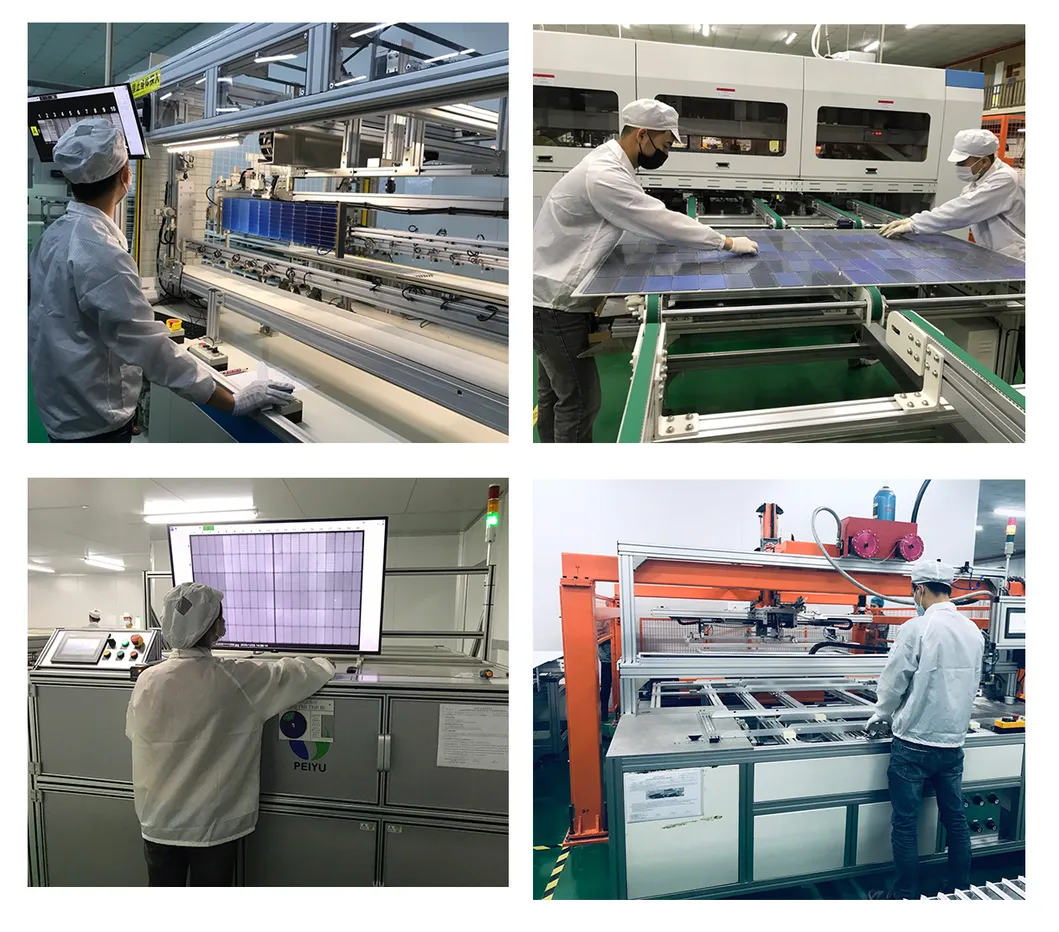

Factory Overview
Packaging & Certifications

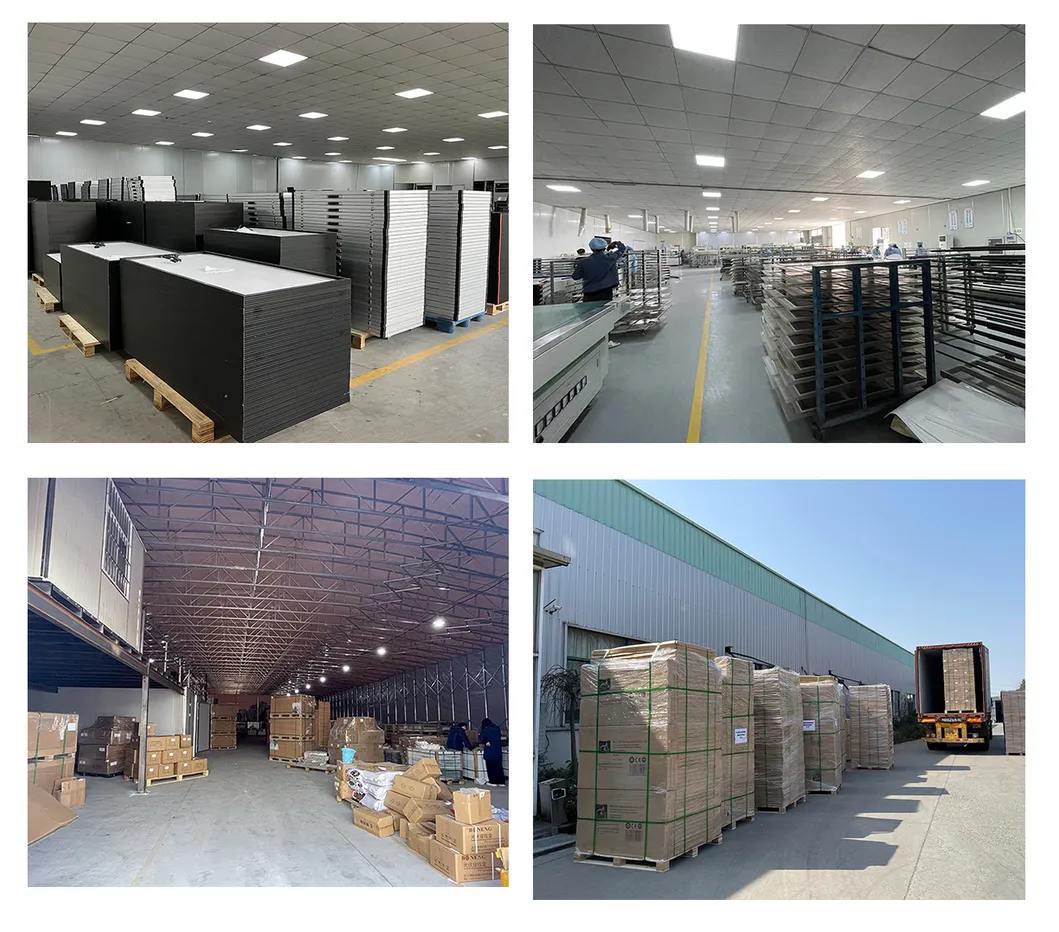

Packaging
Shipping

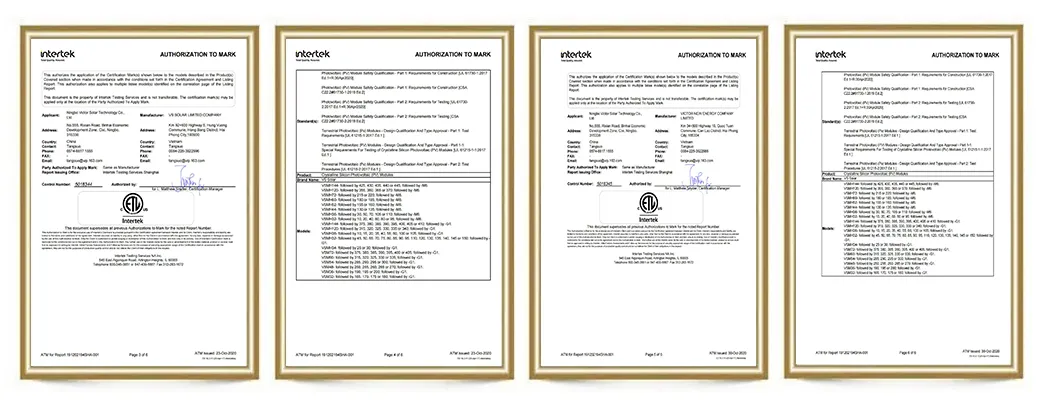

Certificates
Frequently Asked Questions
Do these panels have brackets attached to the roof?
The component is equipped with a junction box connector output. For off-grid system access, additional appropriate wiring and mounting brackets must be purchased separately.
Can this solar panel accommodate 12V/24V/36V/48V batteries?
Yes, but it must be connected to a controller. The controller must be adapted to the maximum component input power without exceeding its limits.
How many kilowatt hours can this solar panel produce in a day?
Under Standard Test Conditions (STC), the power generation is the product of standard power (530W) and effective sunshine hours (W*H).
What is the difference between high power and low power modules?
The primary difference is cell efficiency and open voltage. High power modules require fewer units for the same total output, simplifying wiring and installation.
What is the standard packing for these modules?
The standard packaging is 31 pieces per pallet, secured for international transport in carton boxes.
Are these panels suitable for extreme weather?
Yes, they are designed with a 3.2mm tempered glass and anodized aluminum frame, capable of withstanding front loads up to 5400Pa.
