Basic Information Overview
Nature of Source Flow:
Active Inverter
Certification:
SAA, CE, ROHS, ISO9001, CCC
Power Source:
Solar Power, Public Grid
Circuit Topologies:
Full-Bridge Type
Nature of Wave String:
Sine Wave Inverter
Application:
Hotel/Factory/Hospital/Farm/School
Specification:
1400*1900*850mm(W*H*D)

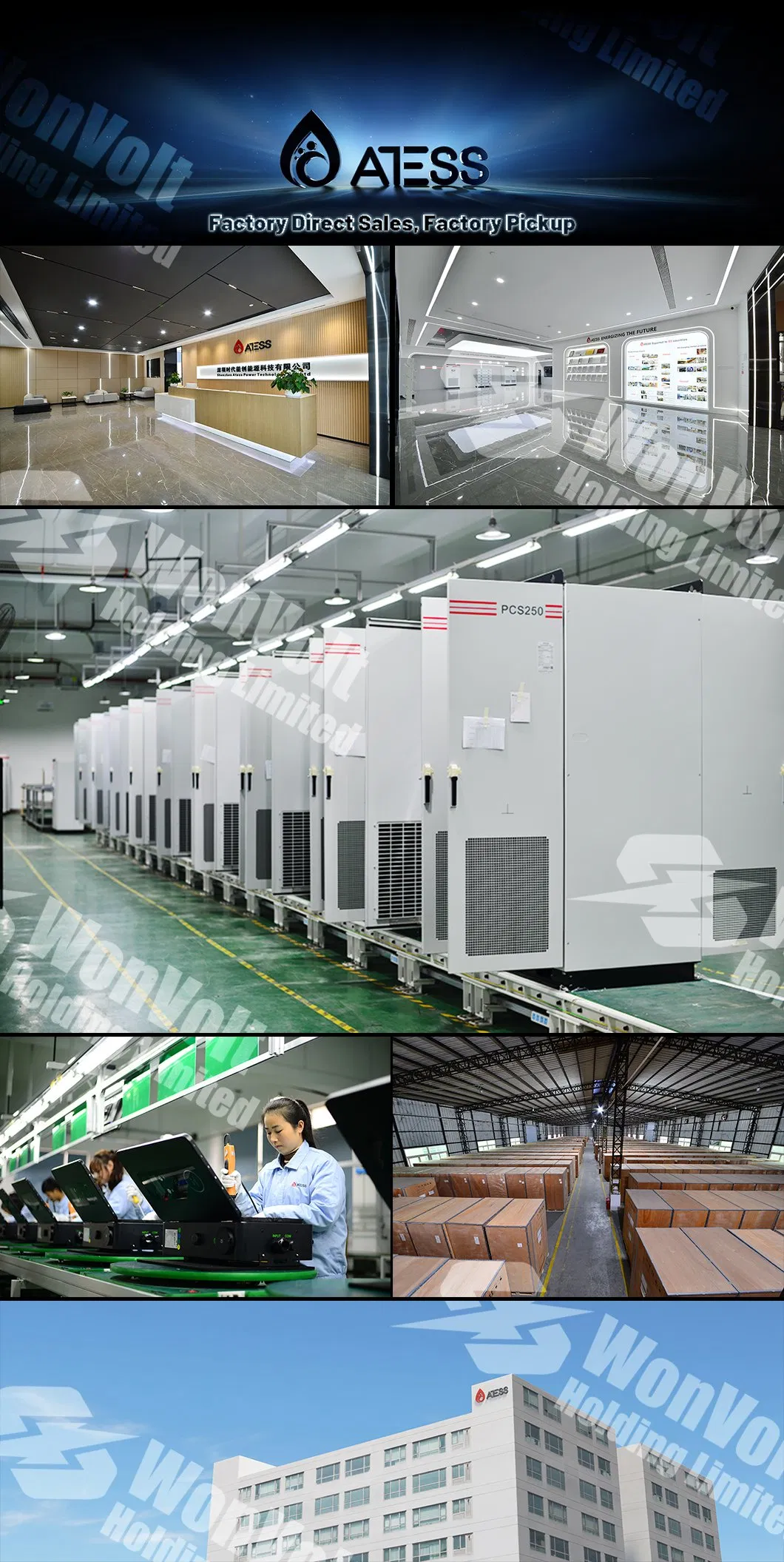

Company Profile

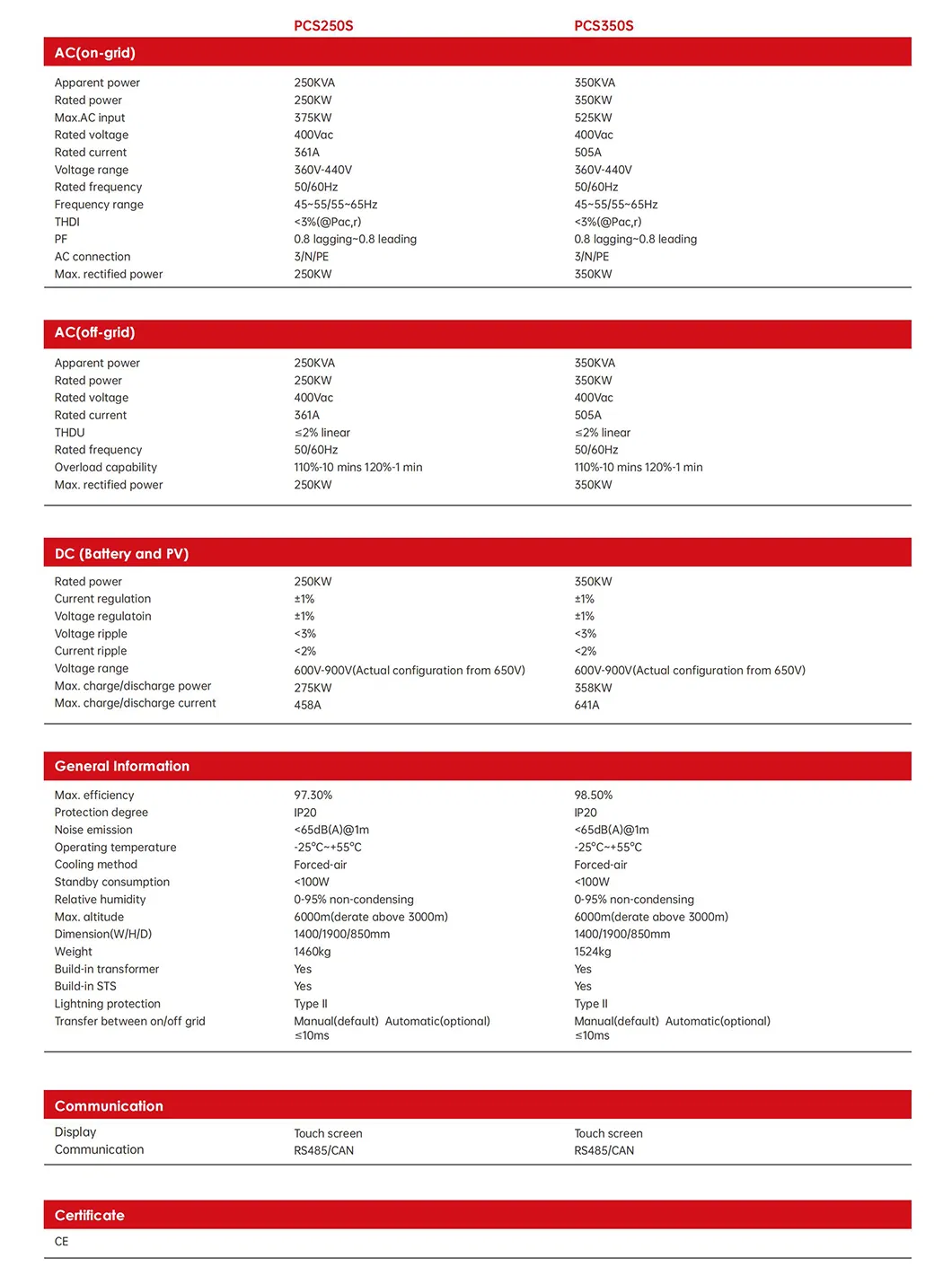

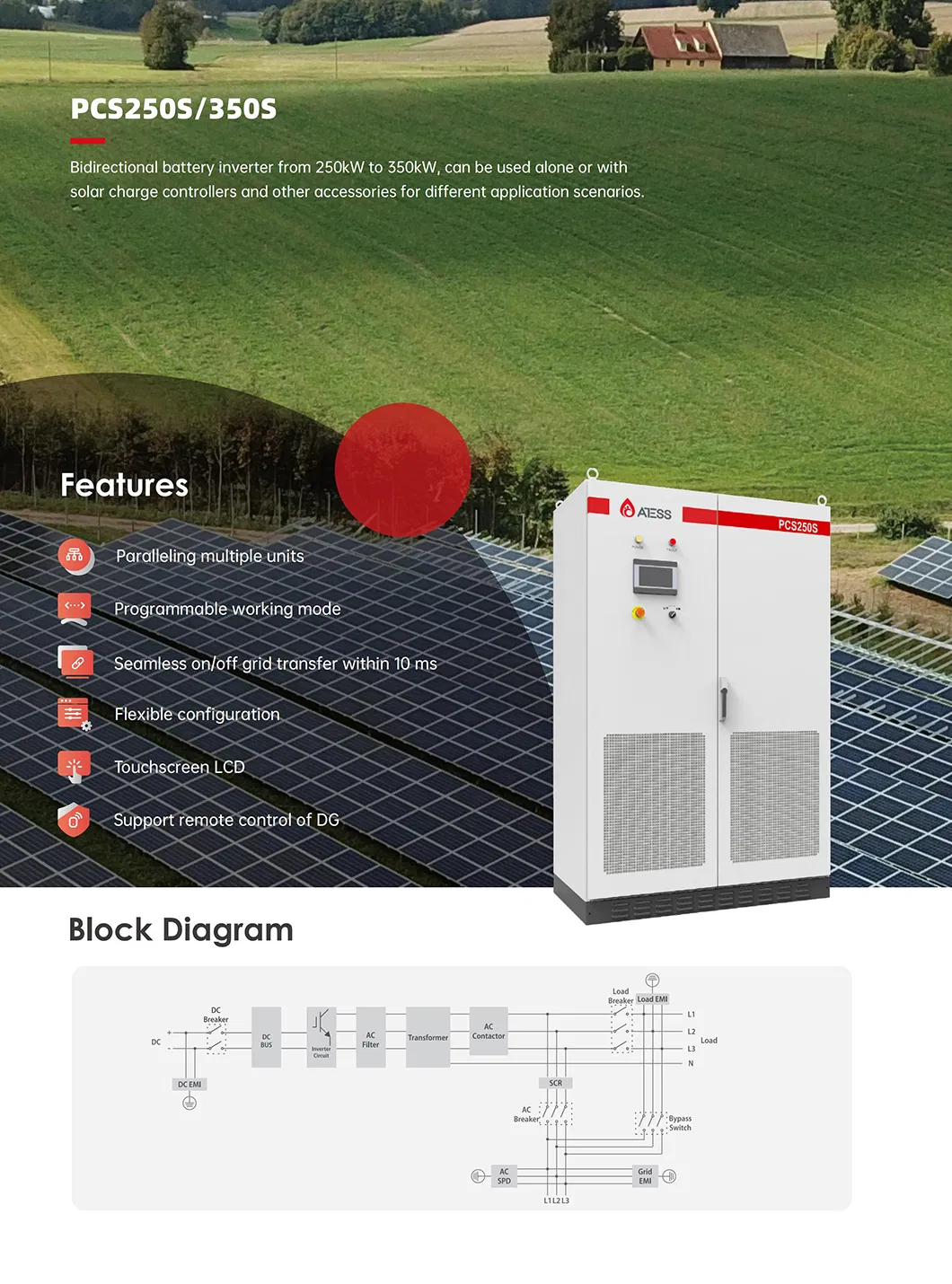

Product Description

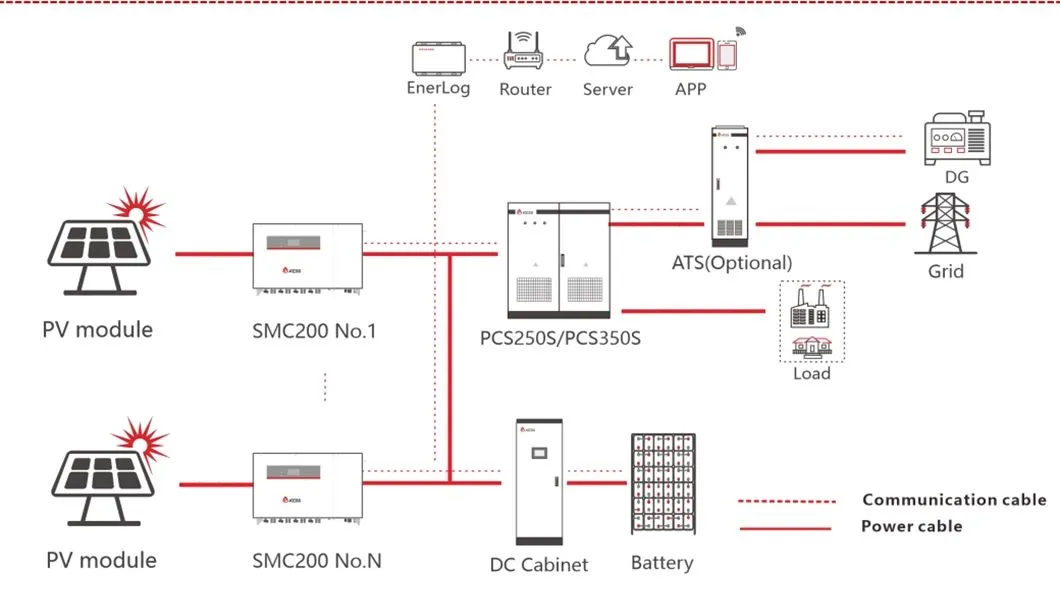

With SMC200 working together to get a larger size 350kW "single-HPS" System
Technical Support

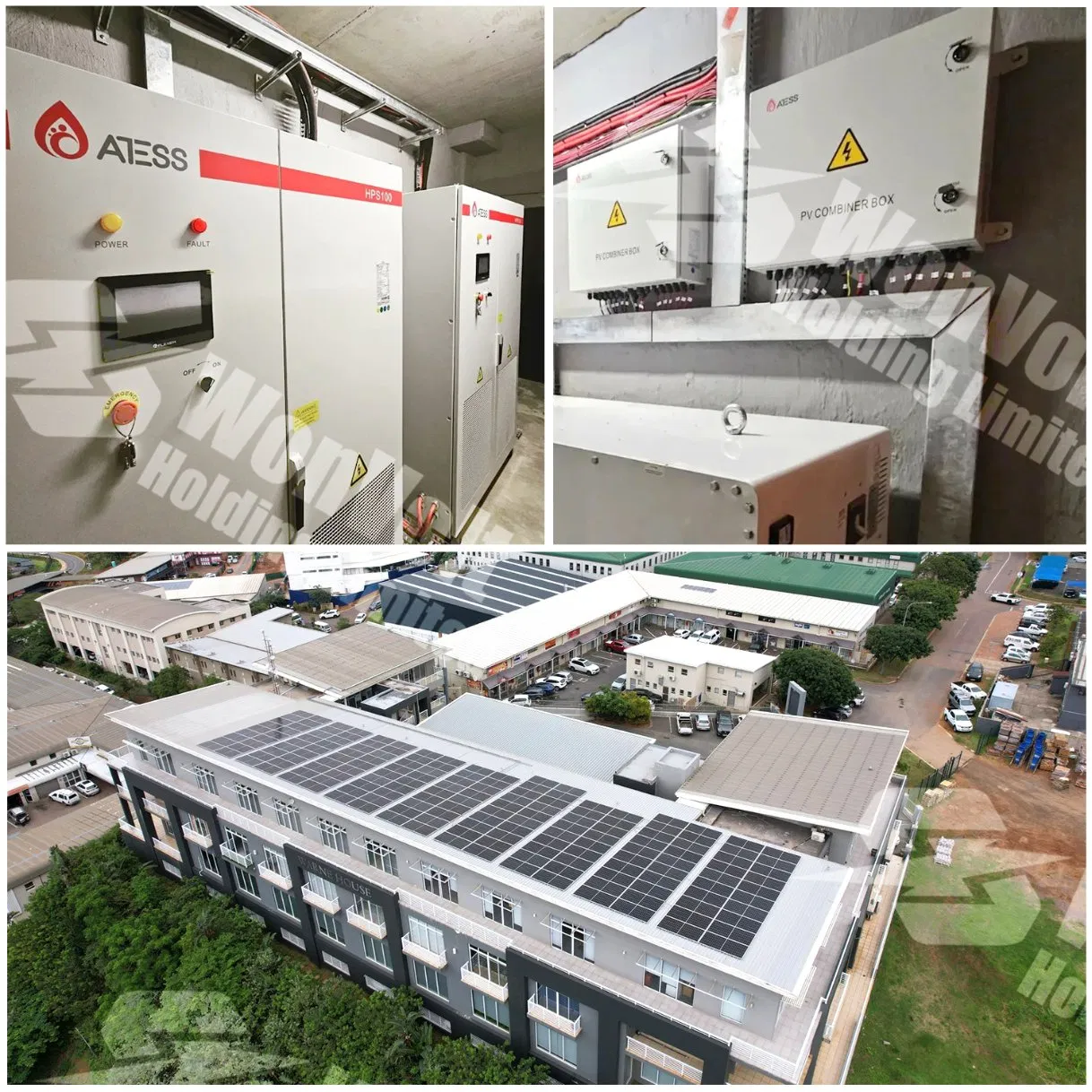

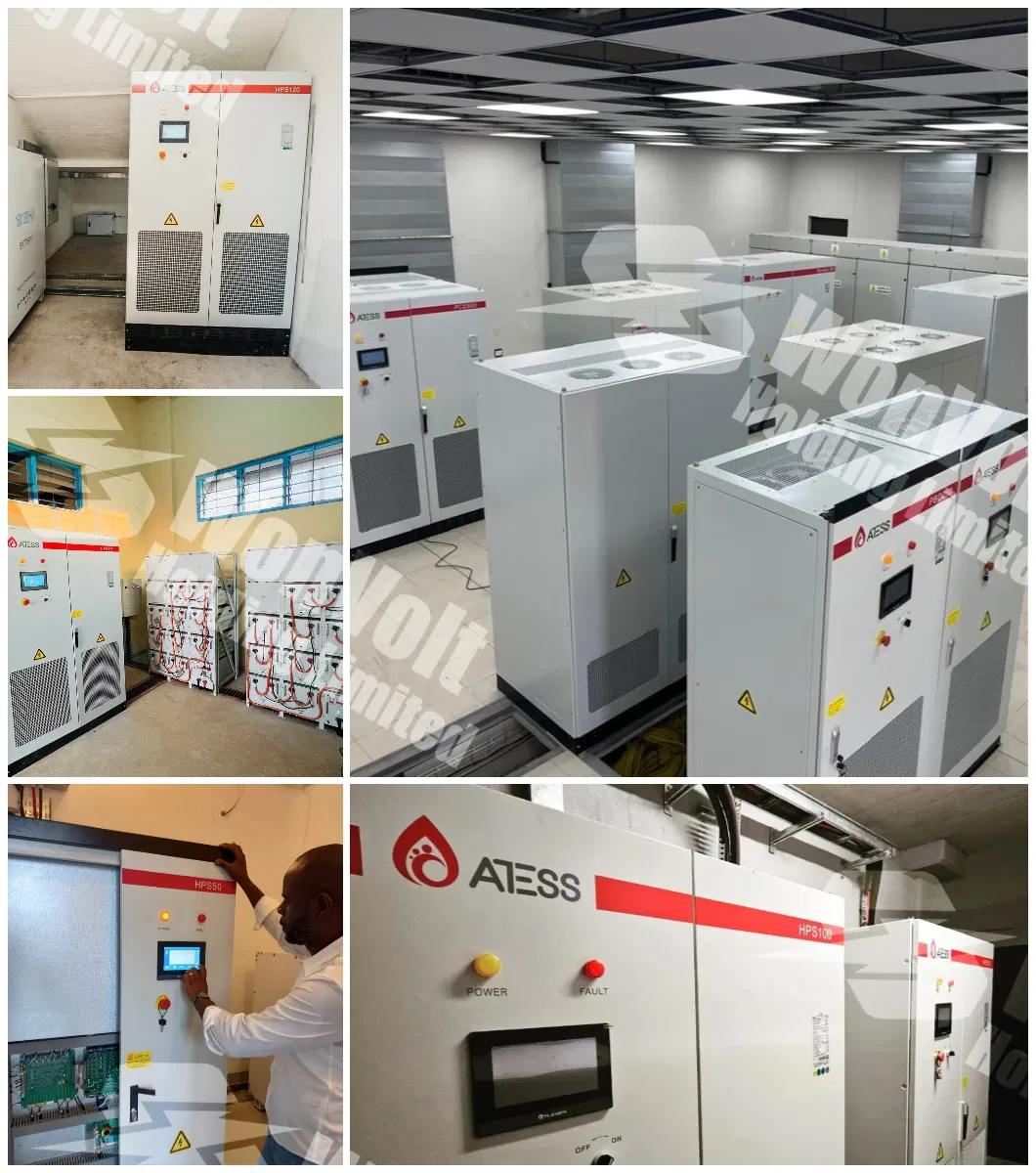

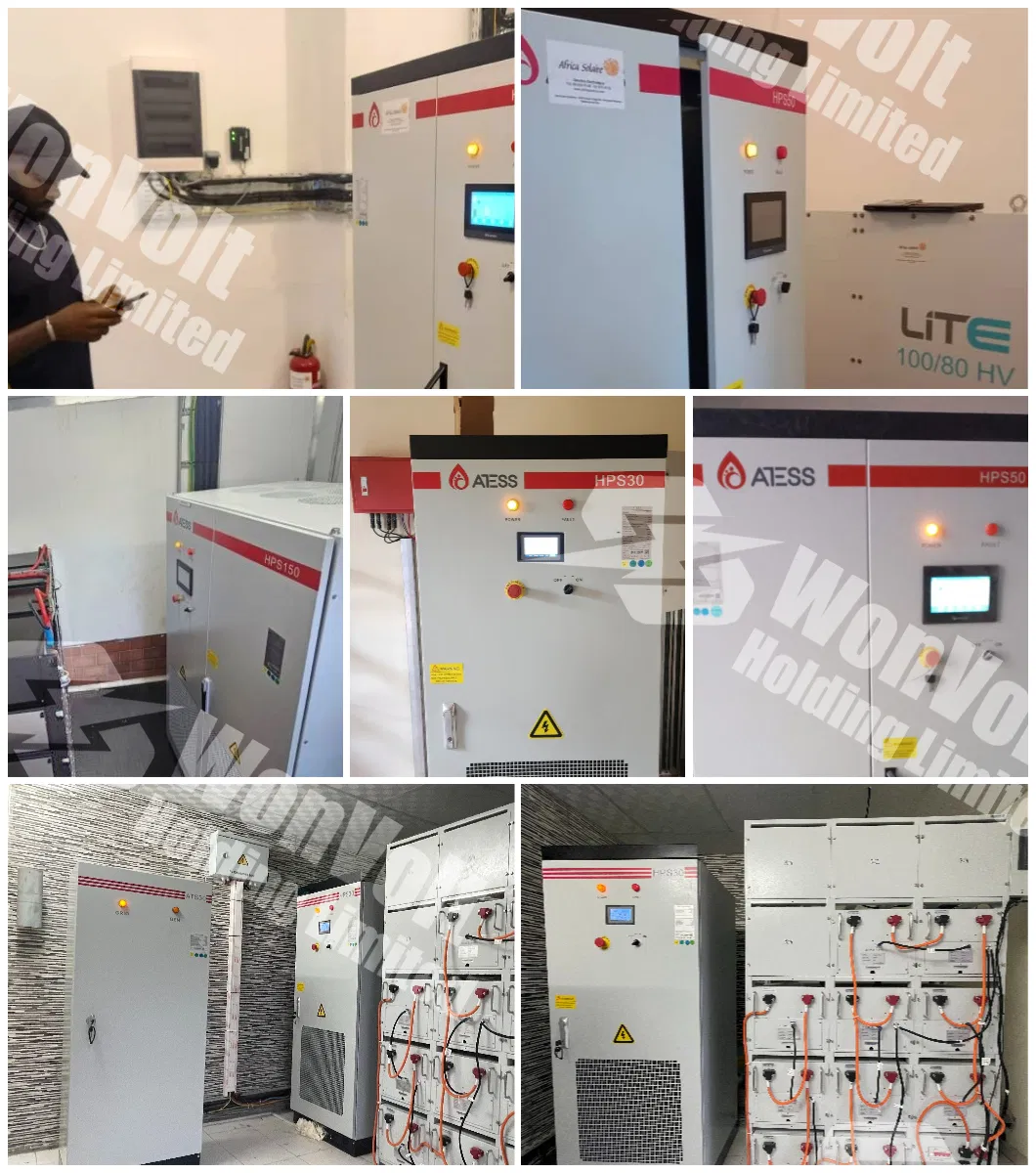

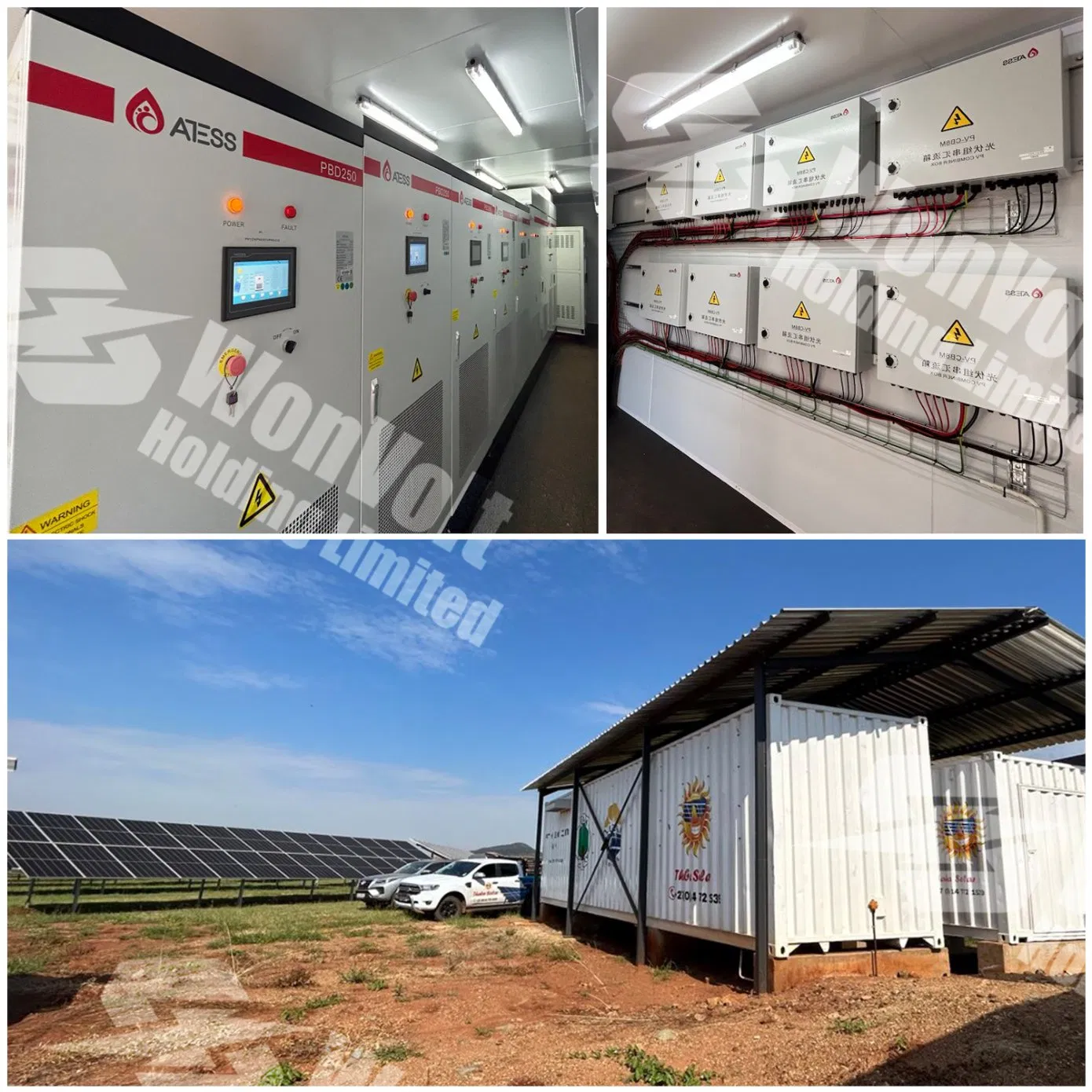

Reference Projects
Key Advantages
- Hybrid Configuration: Supports 250kw and 350kw inverters, with up to 8 units in parallel for large-scale 2mw to 3mw solar projects.
- High Voltage Compatibility: Max connect 15 pcs high voltage 51.2v lithium battery in each battery cluster.
- Efficient MPPT: Wide MPPT voltage range from 900VDC to 1500VDC for optimized energy harvest.
Frequently Asked Questions
What is the maximum power output for this system?
The standard single unit provides 350kW, and by connecting up to 8 units in parallel, the system can support projects up to 3MW.
In which applications can this PCS be used?
This system is ideal for large-scale applications including hotels, factories, hospitals, farms, and schools.
What certifications does the product hold?
The product is fully certified with SAA, CE, ROHS, ISO9001, and CCC, ensuring international quality and safety standards.
Can it work with both solar and grid power?
Yes, it is a bidirectional system that can draw power from both Solar Power and the Public Grid.
What is the MPPT voltage range?
The system features a wide MPPT voltage range of 900VDC to 1500VDC for maximum efficiency.
What are the dimensions and weight of the unit?
The unit measures 1400*1900*850mm and has a net weight of 1524kg, typically shipped in a secure wooden case.
