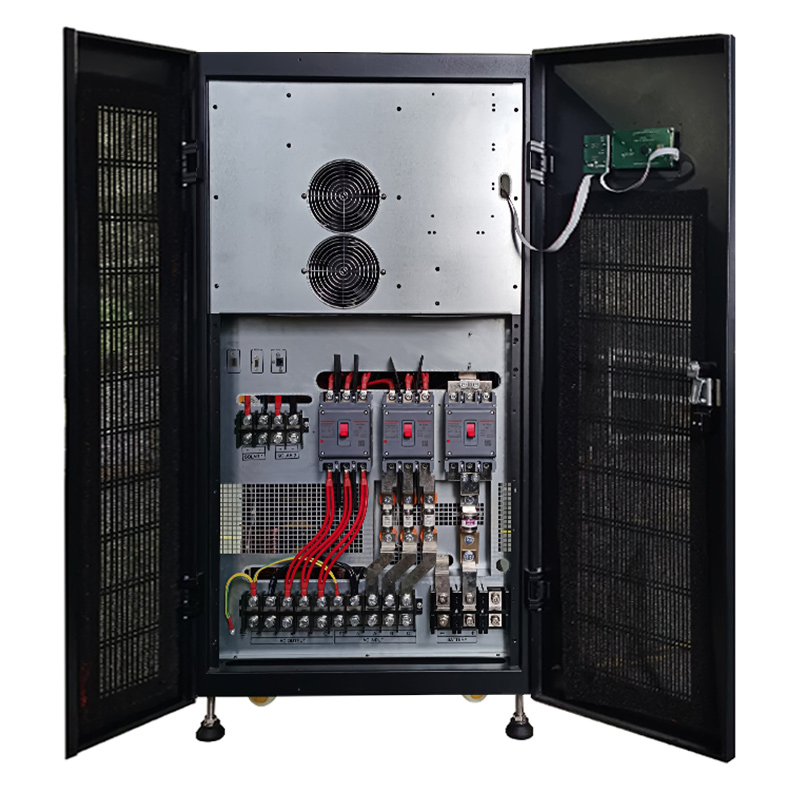

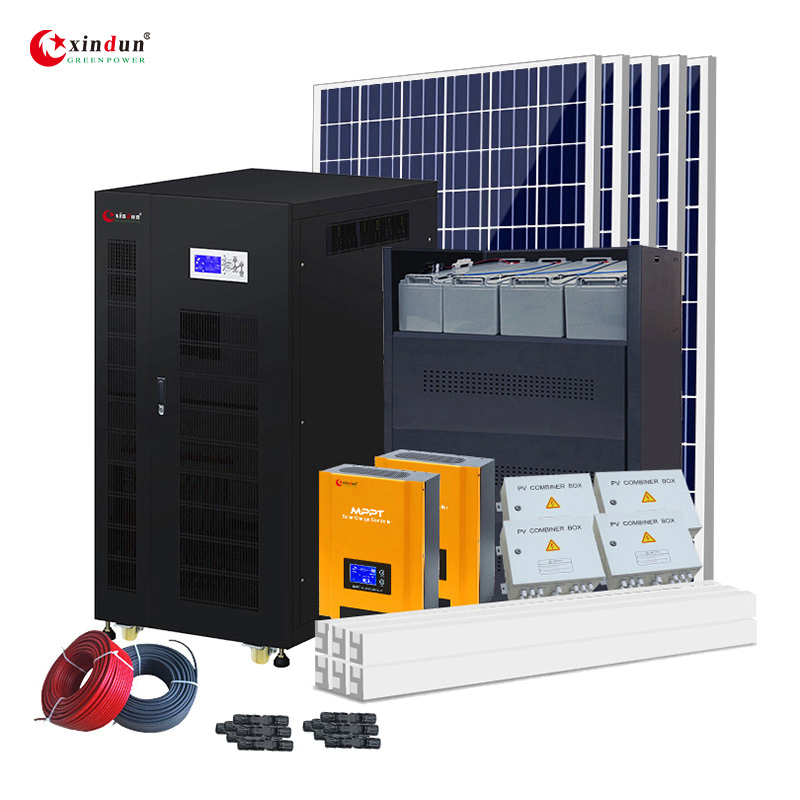

30kw 500 Kw off-Grid Hybrid Best Residential Wind and Solar Power Energy Storage Battery System

Customization: Available
Condition: New
Certification: ISO, CE

Product Description

📋 Basic Info. Overview
Model NO.
XD-SHDSX 100kw solar system
Rated Output Voltage
380V/400V
Solar Controller
384VDC 100A MPPT
DC Voltage
384VDC
Lead Acid Battery
96 PCS 12V200ah
Mounting Type
Ground, Roof, Carport
Output Frequency
50/60Hz
Load Power
100kw 100kVA
Daily Capacity
380160 Wh
Communication
RS485/APP(WiFi/GPRS)
Solar Panel Type
Polycrystalline Silicon
Display
LCD Display
🚀 Product Description

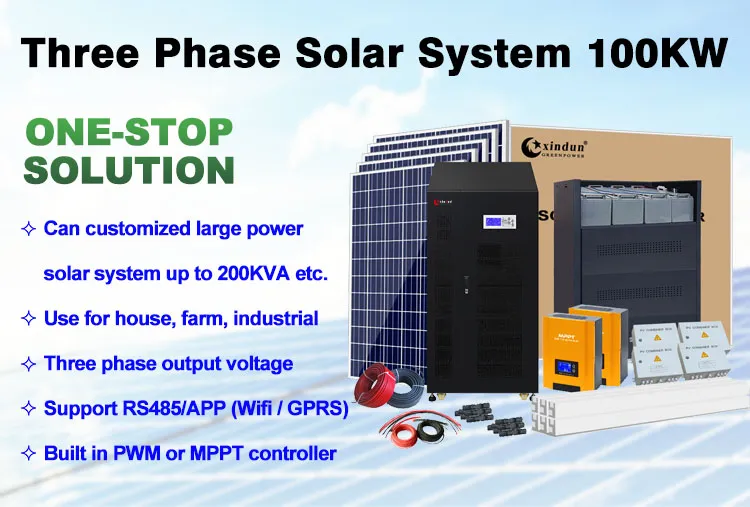

Solar System
Solar System Detail

Description of the 100KW three phase solar energy system:

The estimated sunshine hours are 6 hours, and the daily solar power generation capacity is 380160Wh. This 100KW 3 phase solar battery storage system is the most reliable choice for global customers.

The complete system includes: Solar panels, PV combiner, solar inverter, solar charge controller, batteries, brackets and associated cables.

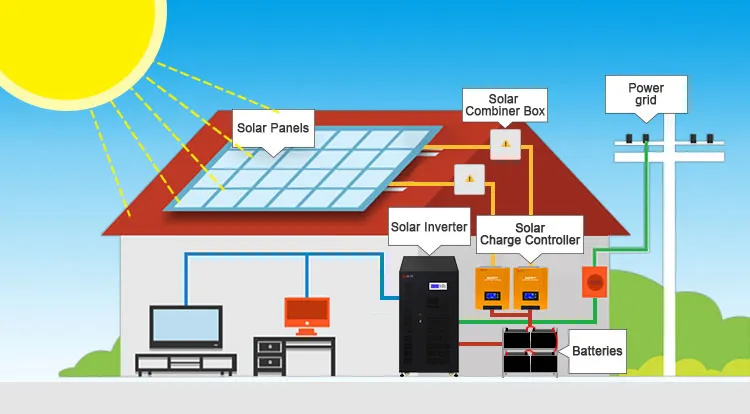

System Component

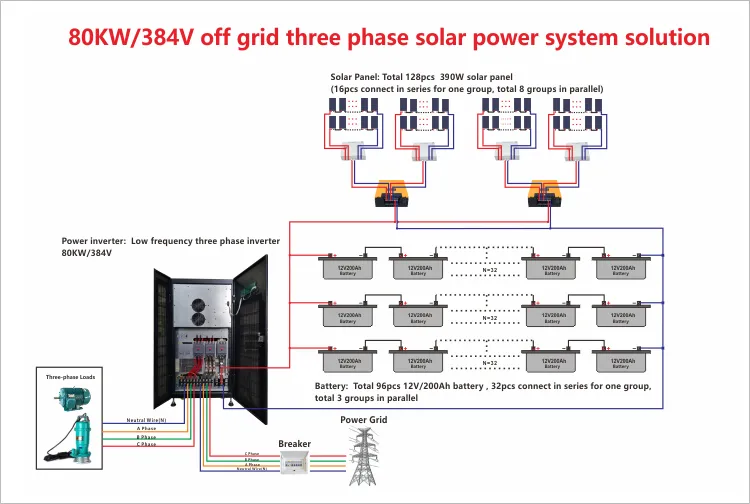

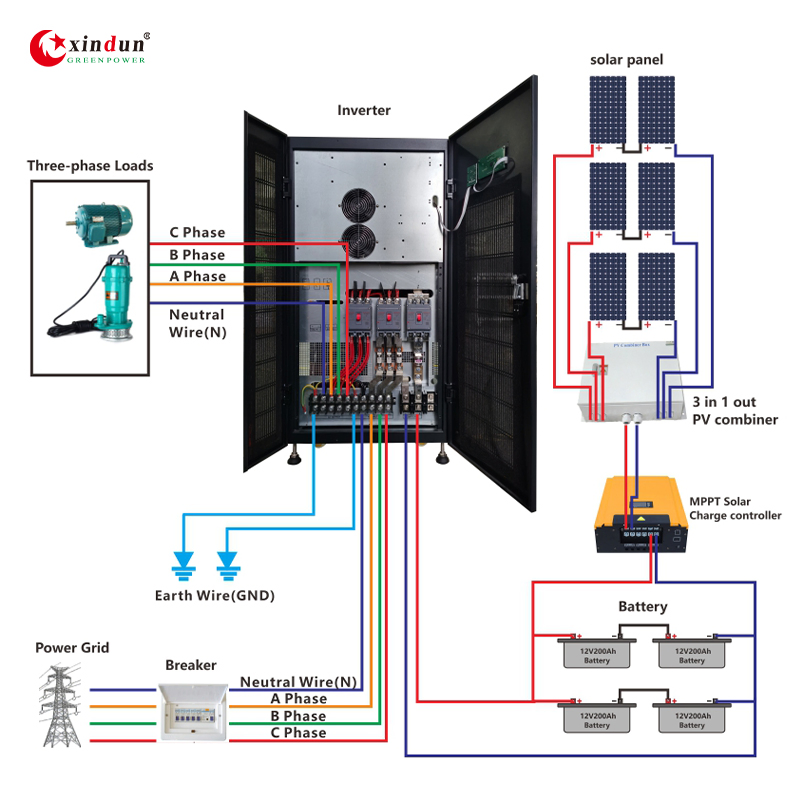

System Layout
📊 Technical Parameter

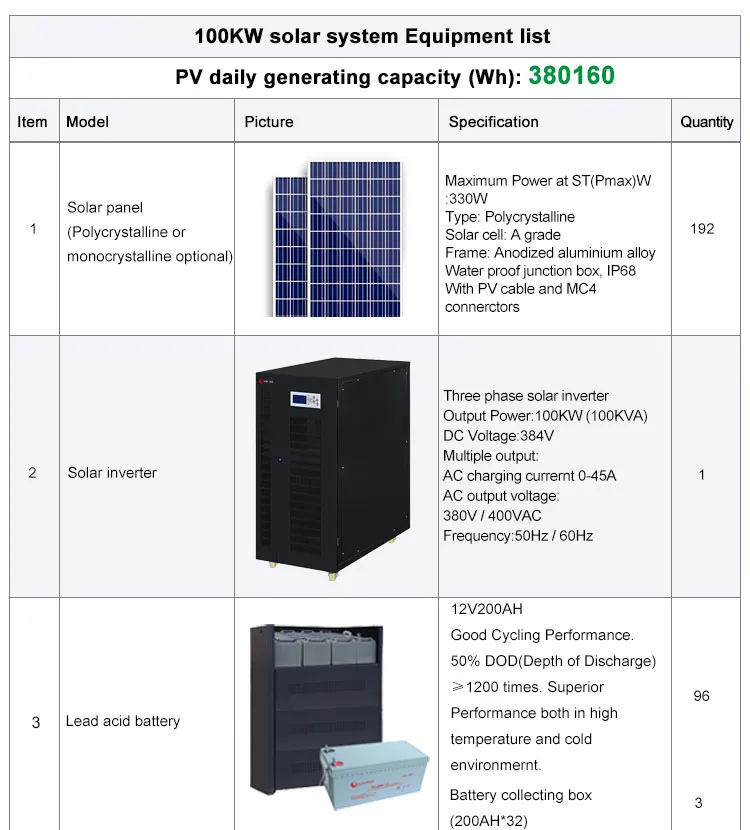

Technical Specs 1

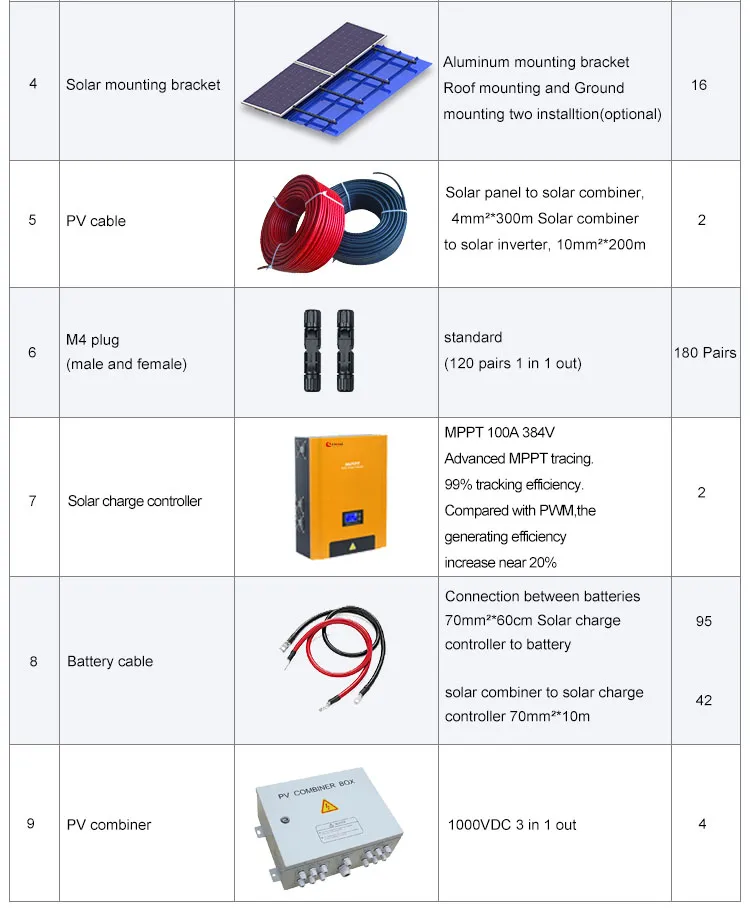

Technical Specs 2
💡 Application

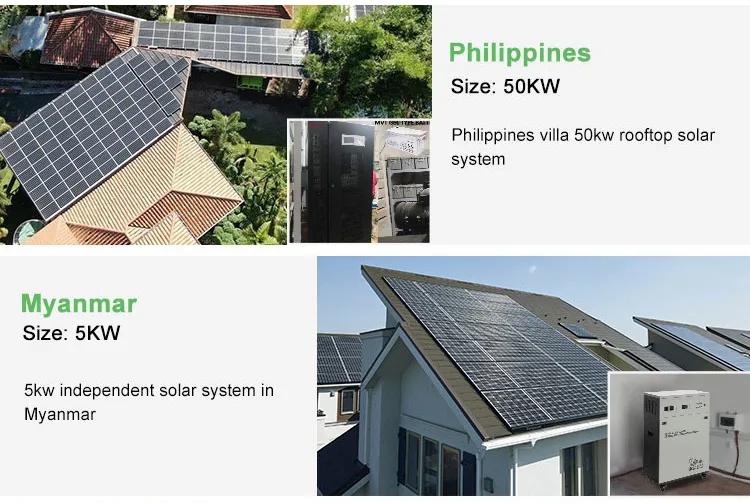

Application 1

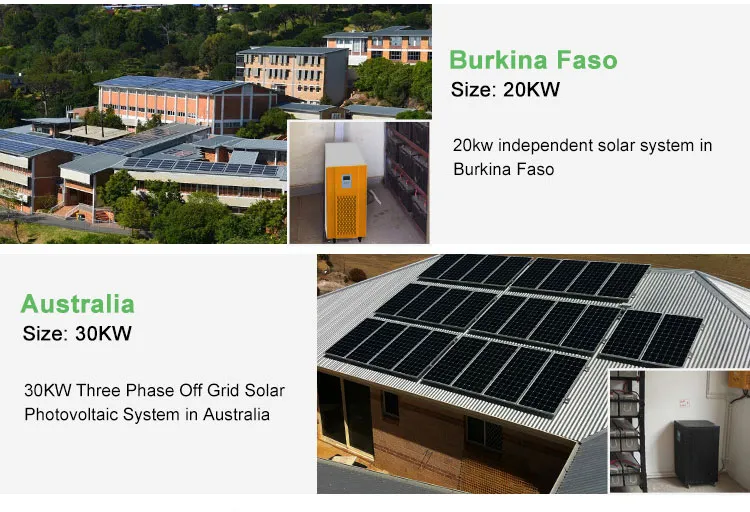

Application 2
📦 Packing & Delivery

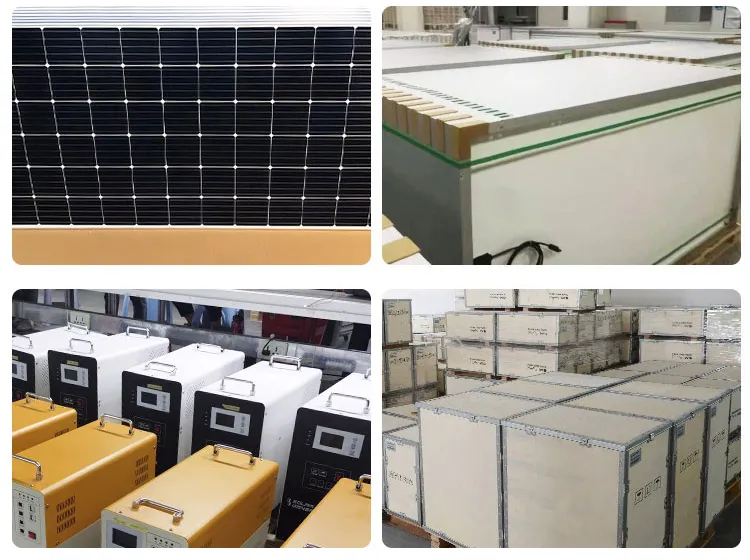

Packing

Shipping Information:

  • Fedex/ DHL/ TNT/ UPS for samples, door-to-door.
  • By air or by sea for batch goods, for CFL, Air port/ Port receiving.
  • Customers specifying freight forwarders or negotiable shipping methods.
  • Delivery time: 7 days for samples; 10 to 25 days for batch goods.
🏭 Workshop & Quality Control

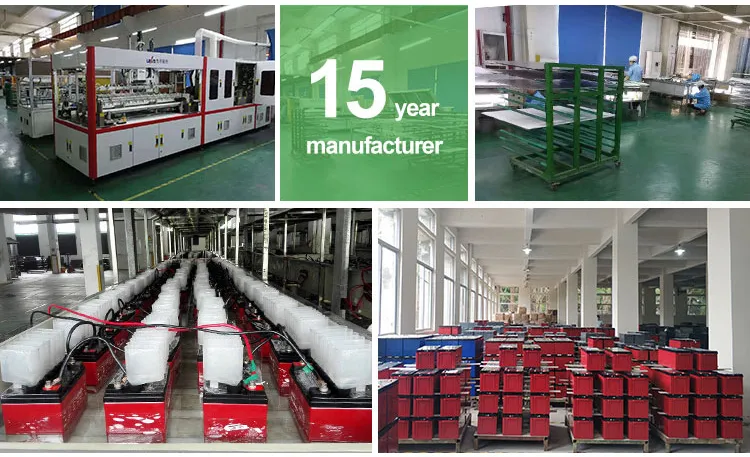

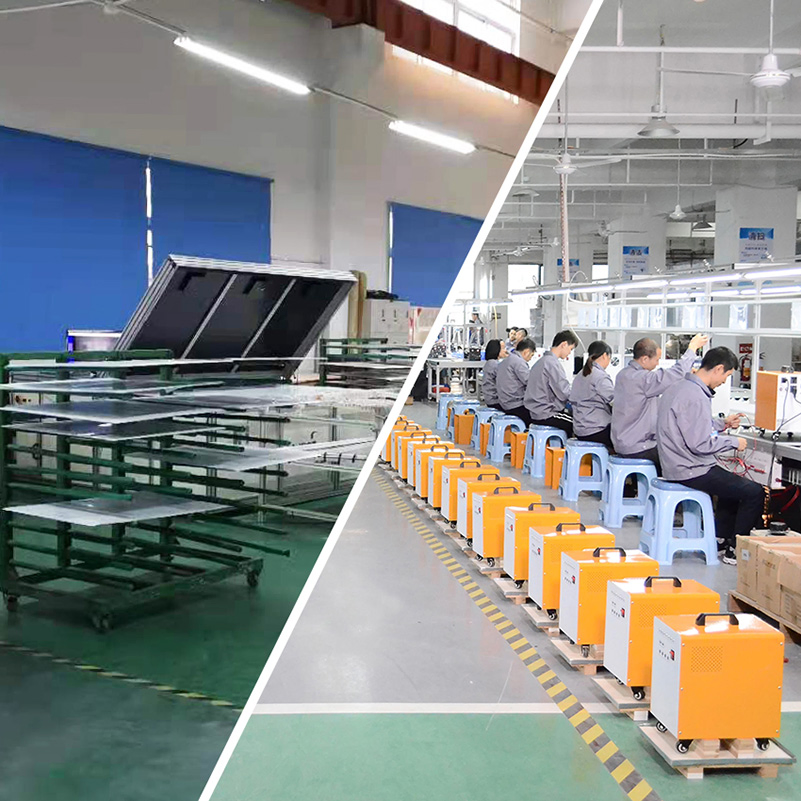

Workshop 1

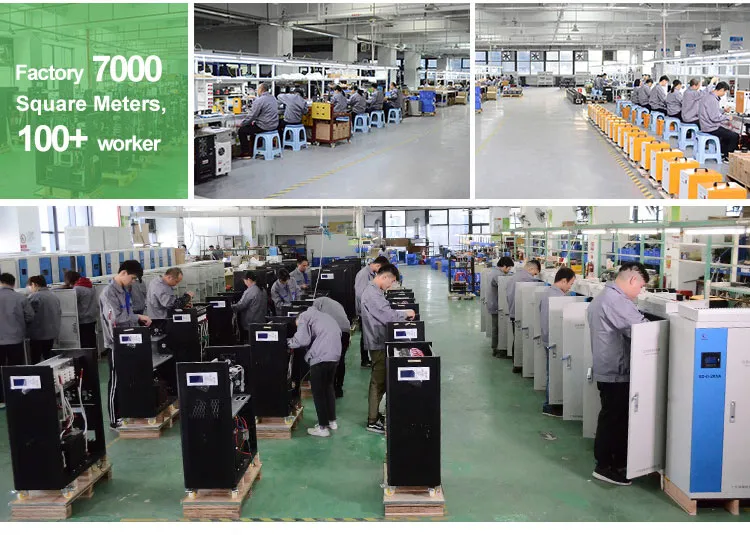

Workshop 2
Certification 1
Certification 2
❓ Frequently Asked Questions
What is the daily power generation of this 100kw solar system?
Under an estimated 6 hours of sunshine, the daily solar power generation capacity is approximately 380,160 Wh.
What components are included in the complete off-grid system?
The complete system includes high-efficiency solar panels, PV combiner box, solar inverter, MPPT solar charge controller, battery bank, mounting brackets, and all necessary cables.
Is the system compatible with remote monitoring?
Yes, the system supports communication via RS485 and can be monitored through a WiFi or GPRS APP.
What type of batteries are used in this setup?
This standard configuration uses 96 pieces of 12V 200Ah Lead Acid batteries, but other storage options can be customized.
Can this solar system support 3-phase industrial equipment?
Yes, this is a three-phase solar energy system with a rated output voltage of 380V/400V VAC, suitable for industrial and heavy residential loads.
What is the typical delivery time for batch orders?
Sample orders usually take about 7 days, while batch goods production and delivery range from 10 to 25 days.
