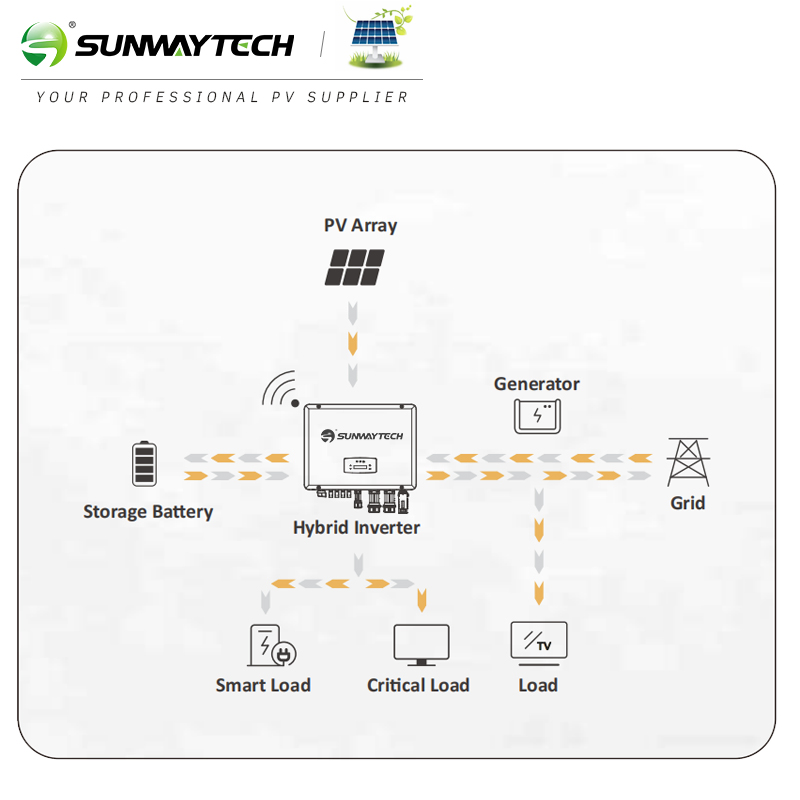

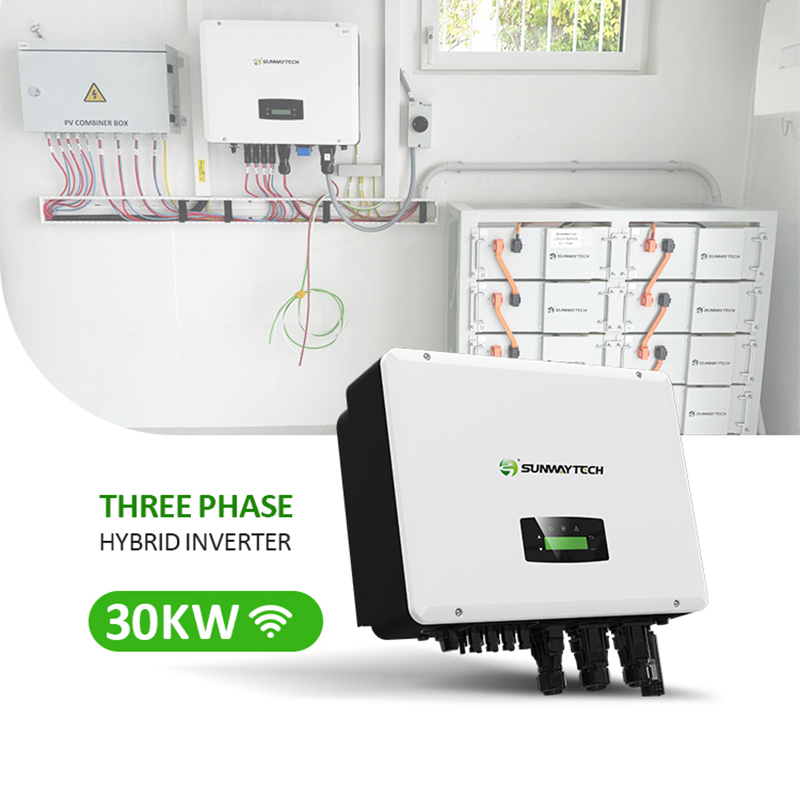

The three phase storage inverters are designed to increase energy independence for homeowners and commercial users. The power range is from 3.0kW to 30kW, compatible with high voltage (150-800V) batteries.

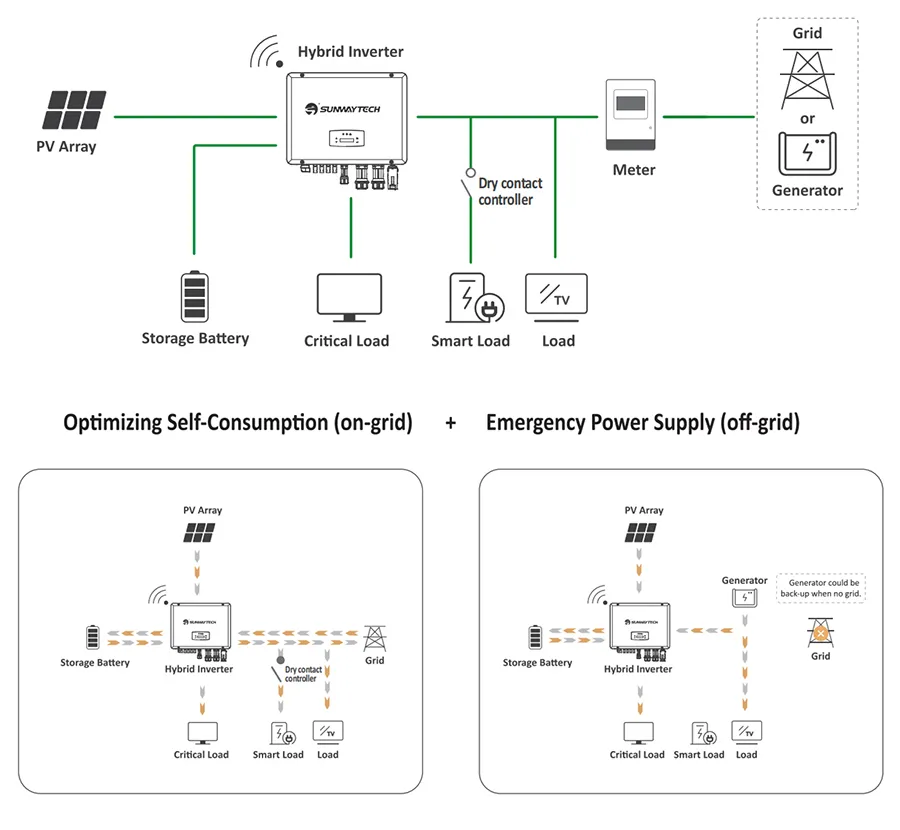

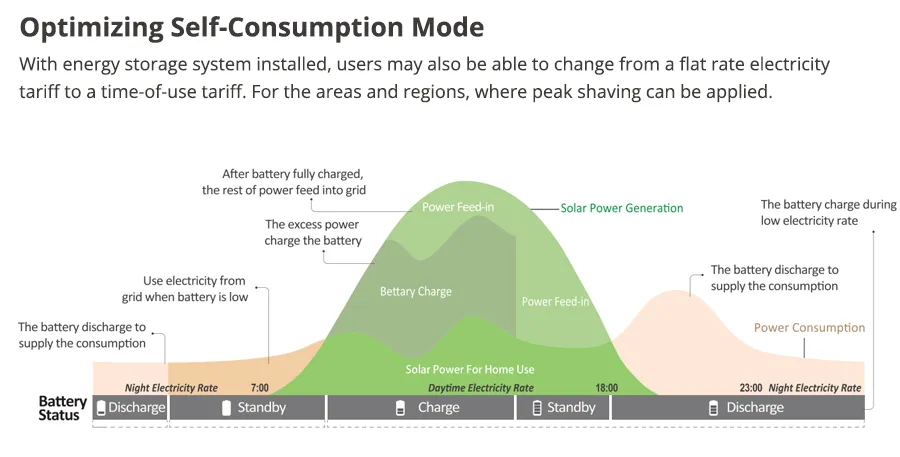

Energy management is based on time-of-use and demand charge rate structures, significantly reduce the amount of energy purchased from public grid.
Thanks for the UPS function (switch time < 10ms), that enables the crucial loads power on during outages. Additionally, under the backup operation mode, the inverter provides you up to 150% peak output overloading.
| Technical Data | SW12KHP3EU2 | SW15KHP3EU2 | SW20KHP3EU2 | SW25KHP3EU2 | SW30KHP3EU2 |
|---|---|---|---|---|---|
| PV Input | |||||
| Max. DC Input Power (kW) | 18 | 22.5 | 30 | 37.5 | 45 |
| Max. PV Voltage(V) | 1000 | ||||
| MPPT Voltage Range(V) | 150-850 | ||||
| Battery Port | |||||
| Battery Voltage Range(V) | 150-800 | ||||
| Max. Charge/Discharge(kW) | 12 | 15 | 20 | 25 | 30 |
| AC Grid & Load | |||||
| Nominal AC Output (kW) | 12 | 15 | 20 | 25 | 30 |
| Max. AC Output Current (A) | 21.5 | 27 | 32 | 40 | 48 |
| Switching Time (ms) | < 10 | ||||
