June Power June Power

250kw GPRS PCS - Remote Control for off-Site Ess

Customization: Available
After-sales Service: Full Guarantee
Warranty: 5 Years

Product Description

📦 Basic Info.
Nature of Source Flow
Active Inverter
Phase
Three
Output Power
350kw
Certification
SAA, CE, ROHS, ISO9001, CCC
Type
Bidirectional
Power Source
Solar Power, Public Grid
Circuit Topologies
Full-Bridge Type
Nature of Wave String
Sine Wave Inverter
Net Weight
1524kg
AC Voltage
360-440V
Frequency
50/60Hz
Application
Hotel/Factoy/Hospital/Farm/School
Specification
1400*1900*850mm(W*H*D)
🏢 Company Profile
⚡ Product Description

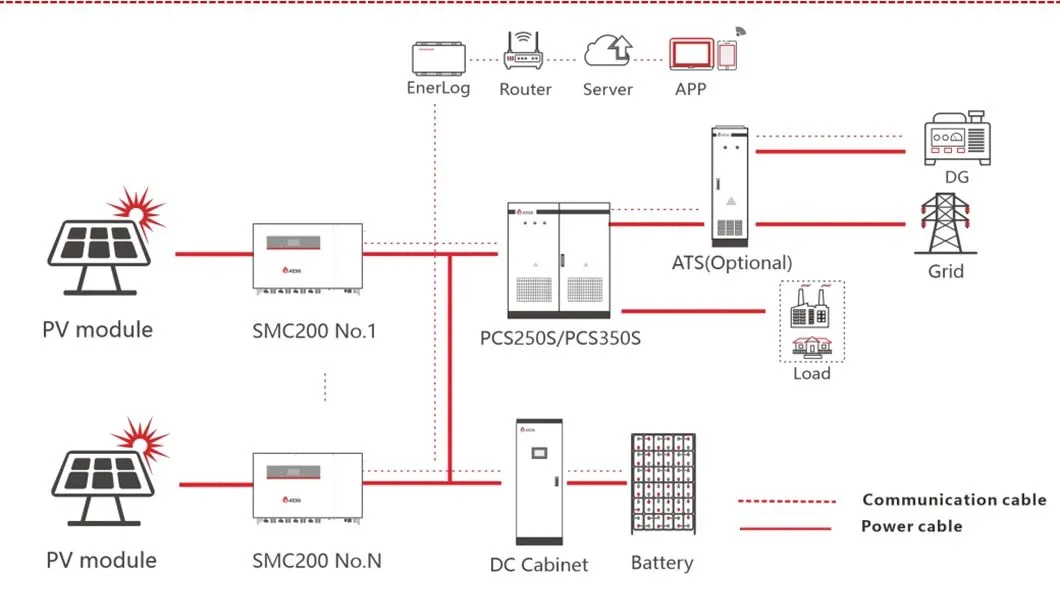

With SMC200 working together to get a larger size 350kW "single-HPS" System
🛠 Technical Support

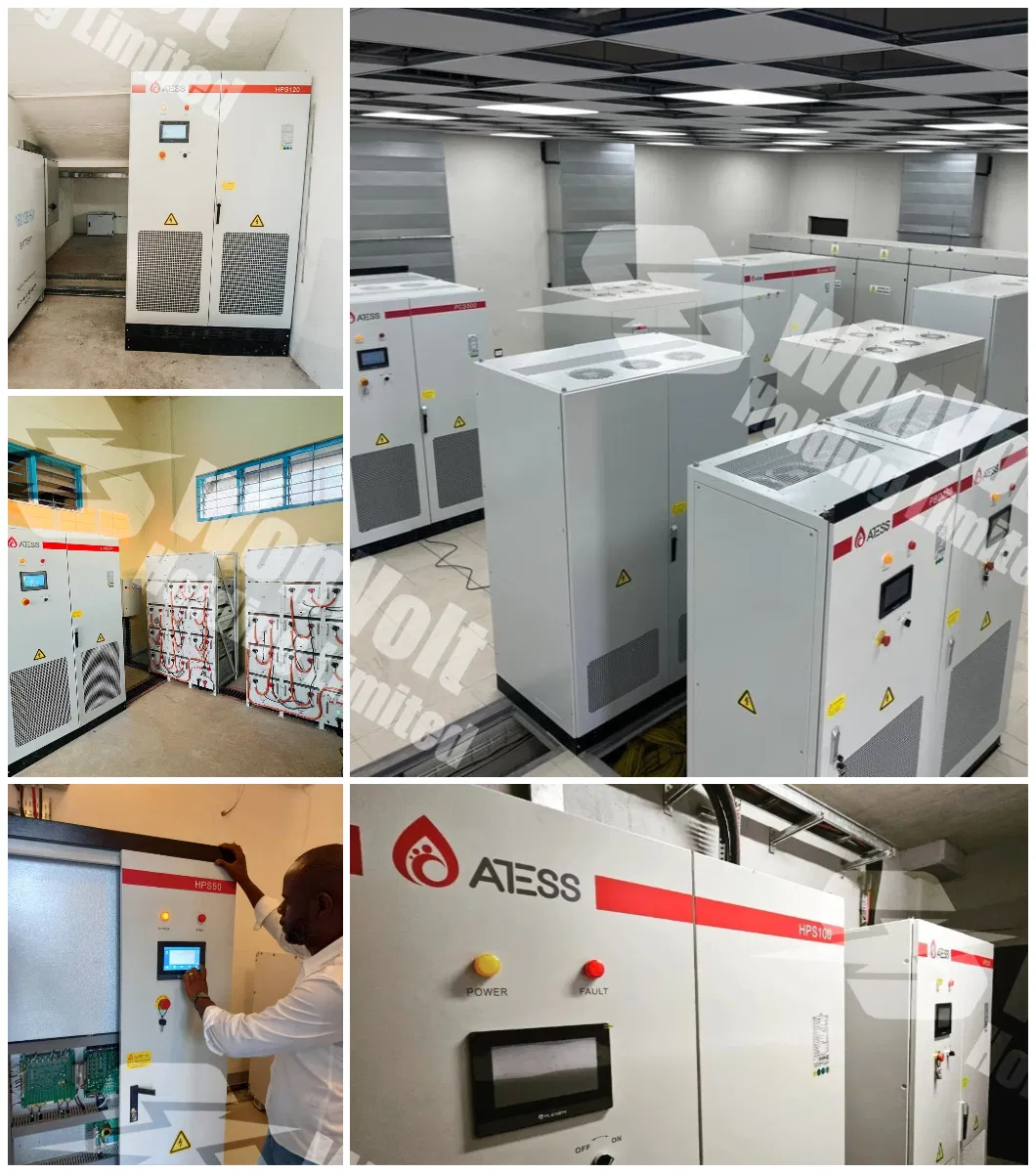

📊 Ref. Projects
🌟 Advantage
  • Hybrid inverter 250kw 350kw, Max 8 pcs connect in parallel for 2mw 3mw solar project
  • Max connect 15 pcs high voltage 51.2v lithium battery in each battery cluster
  • MPPT voltage range 900-1500VDC
❓ FAQ
Q1: What is the maximum output power of this inverter? A: The system provides a standard output power of 350kW, which can be expanded by connecting units in parallel.
Q2: Can this inverter be used for commercial applications? A: Yes, it is ideal for large-scale applications such as hotels, factories, hospitals, farms, and schools.
Q3: Does the system support parallel connection? A: Yes, it supports up to 8 units in parallel, allowing for solar projects up to 2MW or 3MW.
Q4: What are the compatible power sources? A: It is a bidirectional inverter compatible with both Solar Power and the Public Grid.
Q5: What certifications does the product have? A: The product is certified with SAA, CE, ROHS, ISO9001, and CCC.
Q6: What is the MPPT voltage range? A: The MPPT voltage range is specifically designed between 900VDC and 1500VDC.
