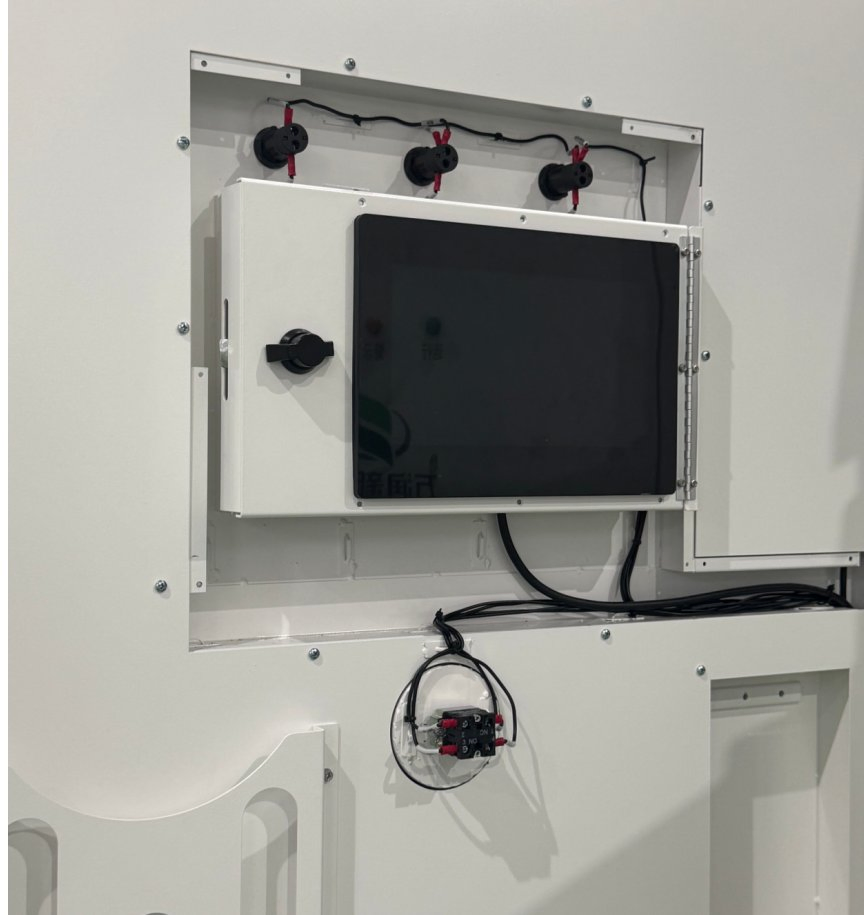

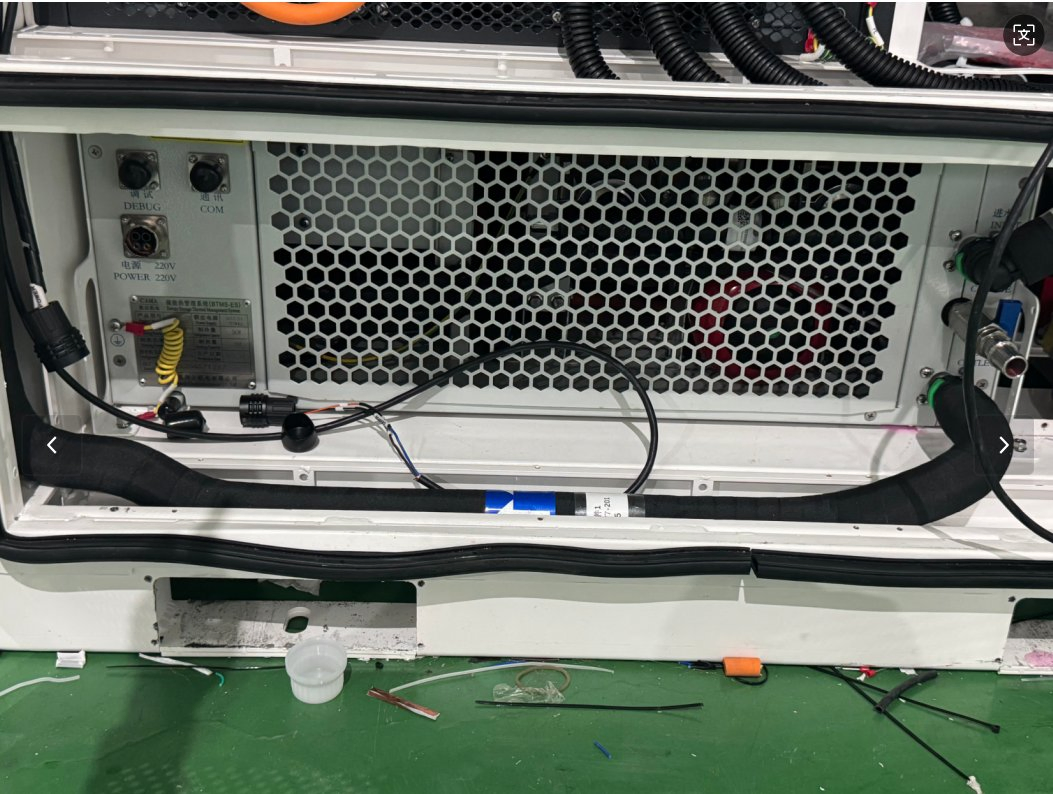

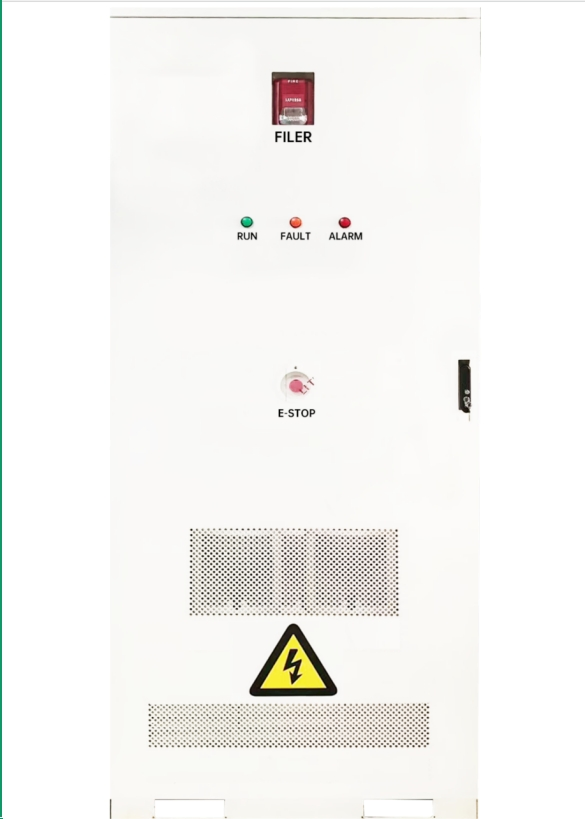

233kwh All-in-One Ess with PCS Integration Wres-Ci-25-233/125

Customization: Available
Application: Industrial Park Peak-Valley Arbitrage
Installation: Cabinet Floor-Mounted

Product Description

📦 Basic Information
Model
WRES-CI-25-233/125
Energy Capacity
100kWh-500kWh
Cycle Life
8000 Cycles (80%DOD)
Total Energy
233kWh
Nominal Voltage
832V
Max Efficiency
99%
Dimension
1055*2300*1300mm
Weight
3030Kg
📝 Product Description
Energy Storage System

COMMERCIAL & INDUSTRIAL ENERGY STORAGE CABINET

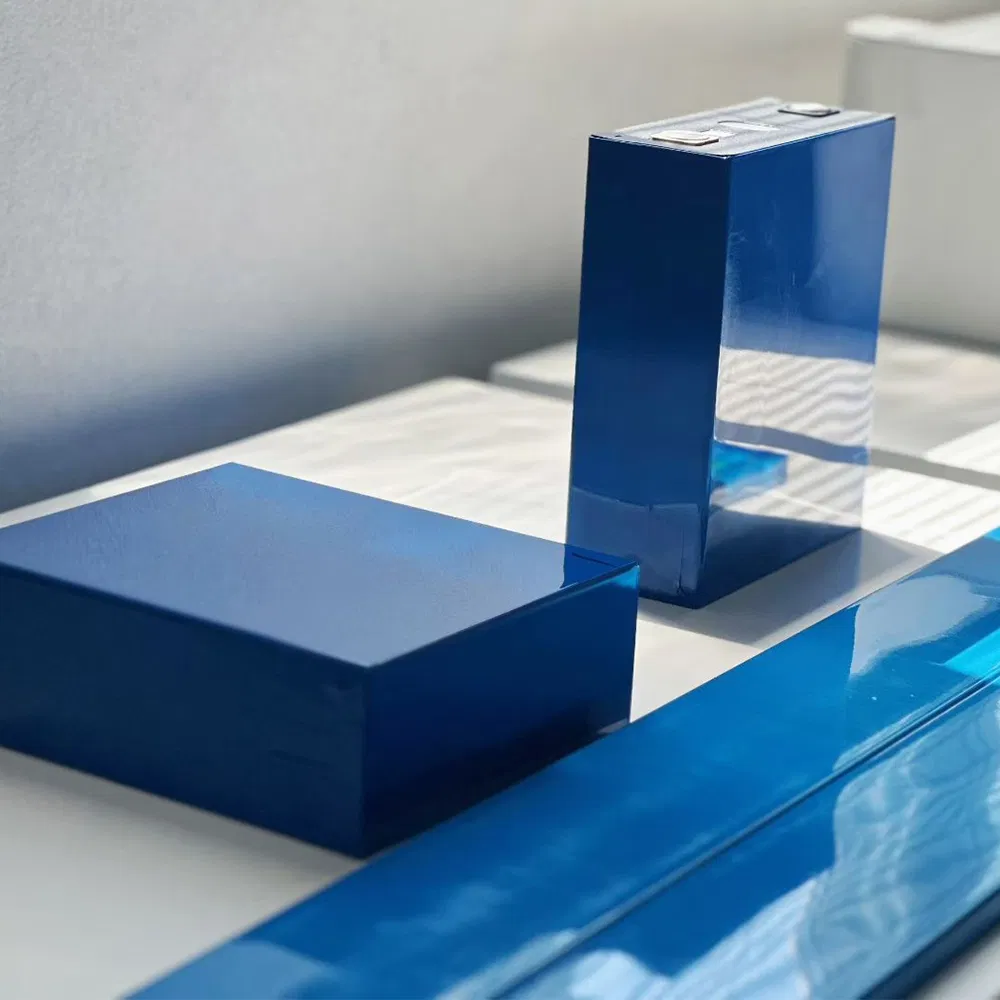

Our solutions adopt LFP (Lithium Iron Phosphate) batteries, ensuring high safety and reliability—critical for long-term industrial operations. The energy capacity ranges from 112.54 kWh to 241 kWh, with high usable energy ratios to meet diverse power demands.

Key Features:
  • Optimized for industrial grids (358.4V to 832V).
  • Integrated MPPT functionality (200~800V) for solar energy compatibility.
  • Peak-valley tariff arbitrage to reduce operational costs.
  • Reliable backup power for critical machinery and data centers.
📊 Specifications
Product NameWRES-CI-25-233/125
Total Energy (kWh)233
Usable Energy (kWh)218.98
Rated Capacity (Ah)280
Max. Output Current to Grid200A
Nominal Grid Voltage230/400V, 3L+N+PE
Corrosion ResistanceC4 Rating
Operating EnvironmentIndoor & Outdoor (10%~95% RH)
🚀 Functional Advantages

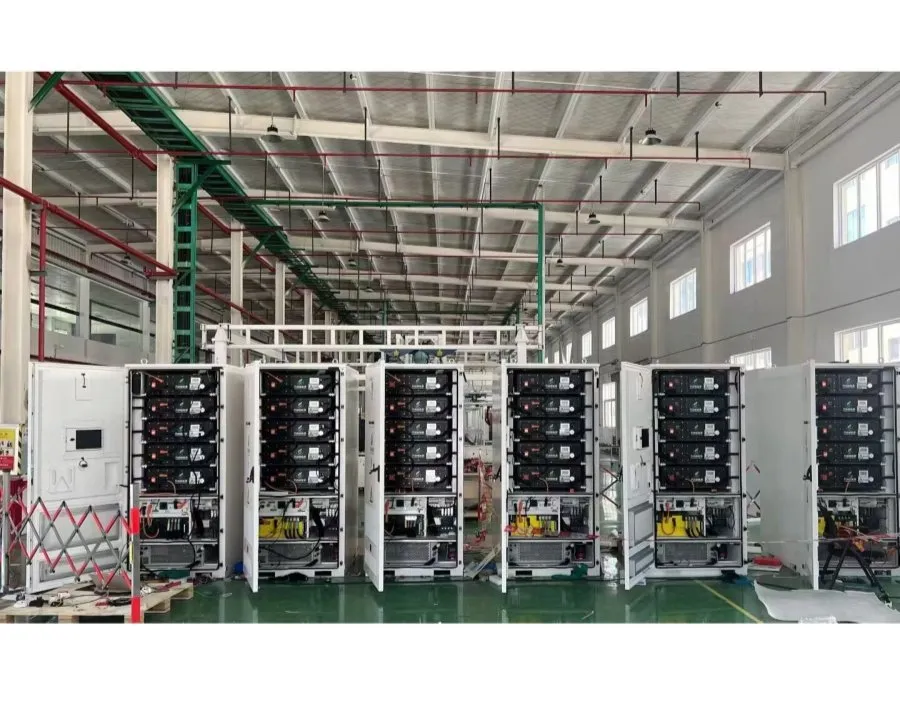

Economic Value: Tailored usable energy capacities allow businesses to store low-cost off-peak electricity and discharge during high-tariff hours, cutting long-term expenses.

Safety & Adaptability: Thermal stability of LFP cells ensures minimal risk. With wide DC voltage ranges, these systems seamlessly integrate with renewable sources like solar and wind.

🎯 Core Applications

💡 Peak-Valley Arbitrage: Essential for energy-intensive sectors like manufacturing and retail.

💡 Backup Power: Uninterrupted supply for production lines and refrigeration units.

💡 Renewable Consumption: Stores excess solar/wind energy to increase self-consumption.

💡 Grid Stability: Balances fluctuating electrical loads during machinery startup.

🚚 Transportation & Logistics

We provide secure transportation with Full-Process Tracking and Custom Protective Packaging. Reinforced wooden crates or steel frames are used for large C&I units to ensure safe delivery.

❓ Frequently Asked Questions
Are your batteries compatible with existing solar inverters?
Yes, our batteries offer high compatibility via RS485, CAN, or RS232 protocols, supporting major brands like SMA, Growatt, Solax, and Deye.
What is the expected lifespan of the batteries?
Lithium iron phosphate (LFP) batteries typically offer 6,000-8,000 charge cycles, which is equivalent to 10-15 years of daily use.
Do the battery systems include protective features?
Yes, all units include a comprehensive Battery Management System (BMS) with overcharge, over-discharge, short-circuit, and temperature protection.
How can I monitor the system performance?
We provide a cloud-based monitoring platform accessible via App and Web for real-time tracking of battery health and efficiency.
Does installation require professional expertise?
Yes, it is essential to hire certified professionals for installation to ensure safety and correct integration with your electrical grid.
Can the system be used in off-grid locations?
Absolutely. Our systems support grid-connected, off-grid, and hybrid configurations to suit remote villages or areas with unstable power.
