Working Principle of Off-Grid Solar Power Generation System
1
Photoelectric Conversion: Internal semiconductor materials absorb photon energy through the photovoltaic effect, converting solar energy directly into DC current.
2
Charging Regulation: The controller monitors voltage and current to adjust the charging sequence, preventing overcharging.
3
Energy Storage: Electrical energy is transformed into chemical energy within batteries for long-term storage and reused when sunlight is insufficient.
4
Inversion: An inverter converts DC power into standard AC power, regulating voltage and frequency for grid compatibility.
5
Load Power Supply: AC power is distributed to electrical loads, balancing supply according to real-time requirements.
Product Basic Information
Cycle Life:
5000-6000 pieces
Nominal Capacity:
10kw 20kwh

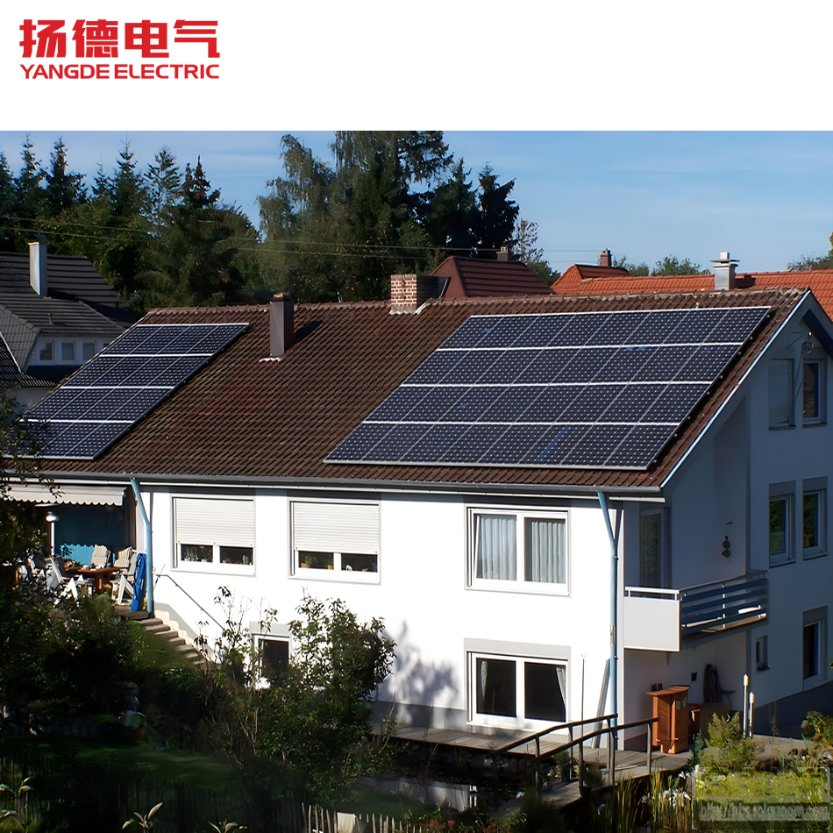

Application:
Home / Residential
Product Parameters
| Item |
5 kw |
10 kw |
15 kw |
| Half Cell Solar Panel | 8 pieces | 16 pieces | 24 pieces |

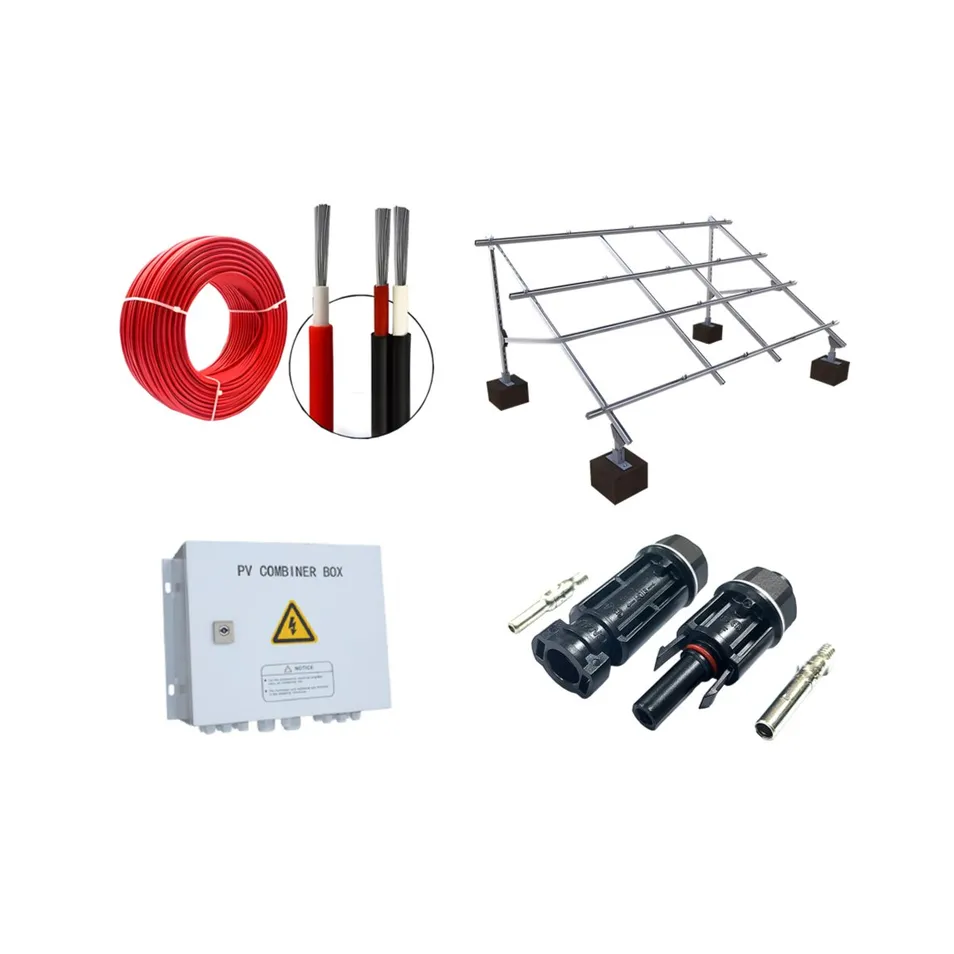

| PV Combiner Box | DC Breaker/Combiner/Short-Circuit/Lightning Protection |
| Hybrid Inverter | 5 kw | 10 kw | 15 kw |
| Solar Battery | Lithium Powerwall with BMS/GEL |
| Installation Kit | 1 set | 1 set | 1 set |
Technical Specifications

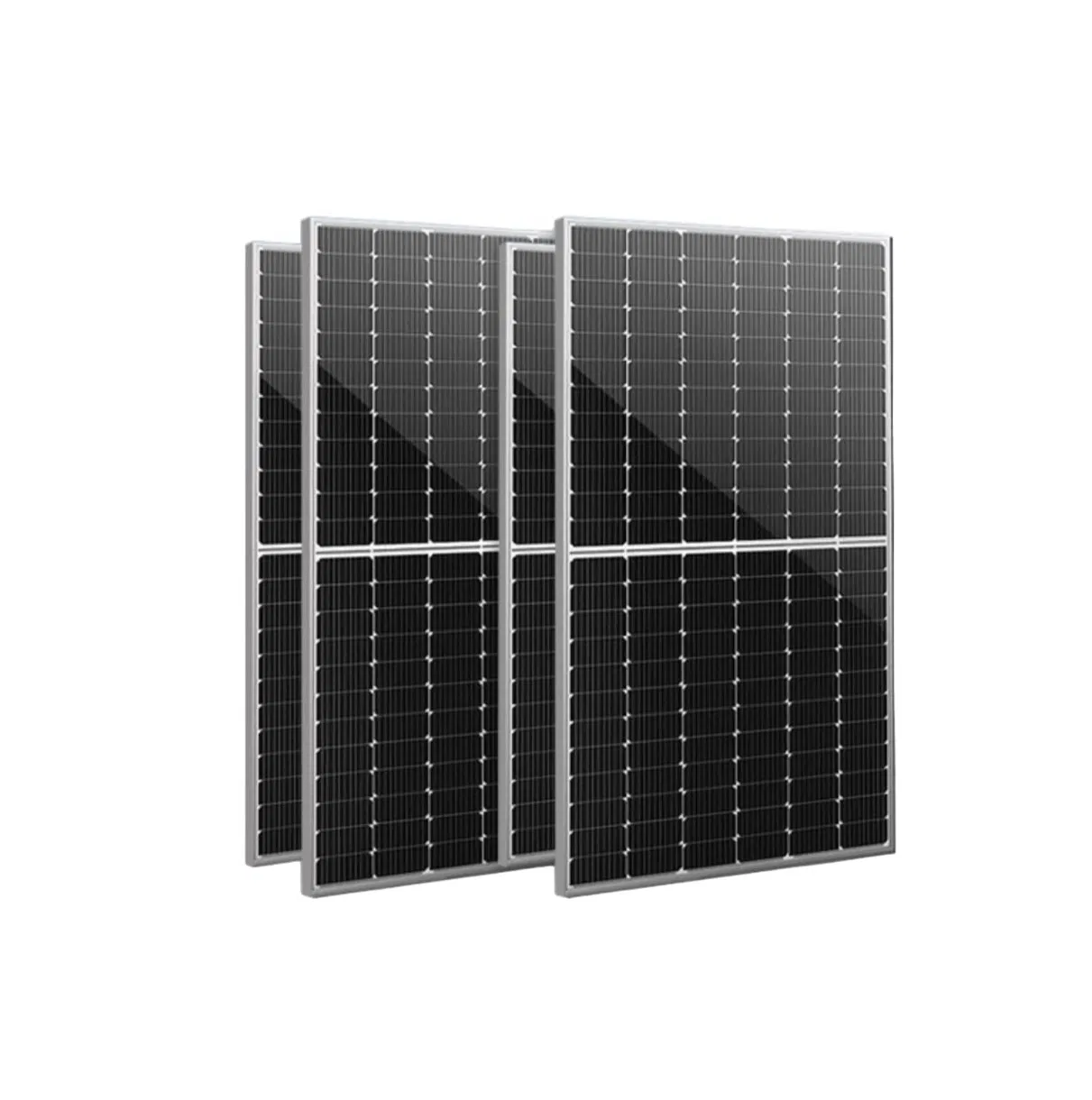

PV Module (Mono N-Type)
Dimensions: 2480*1130*30mm
Pmax: 625W
Vmpp: 41.4V
Voc: 48.6V

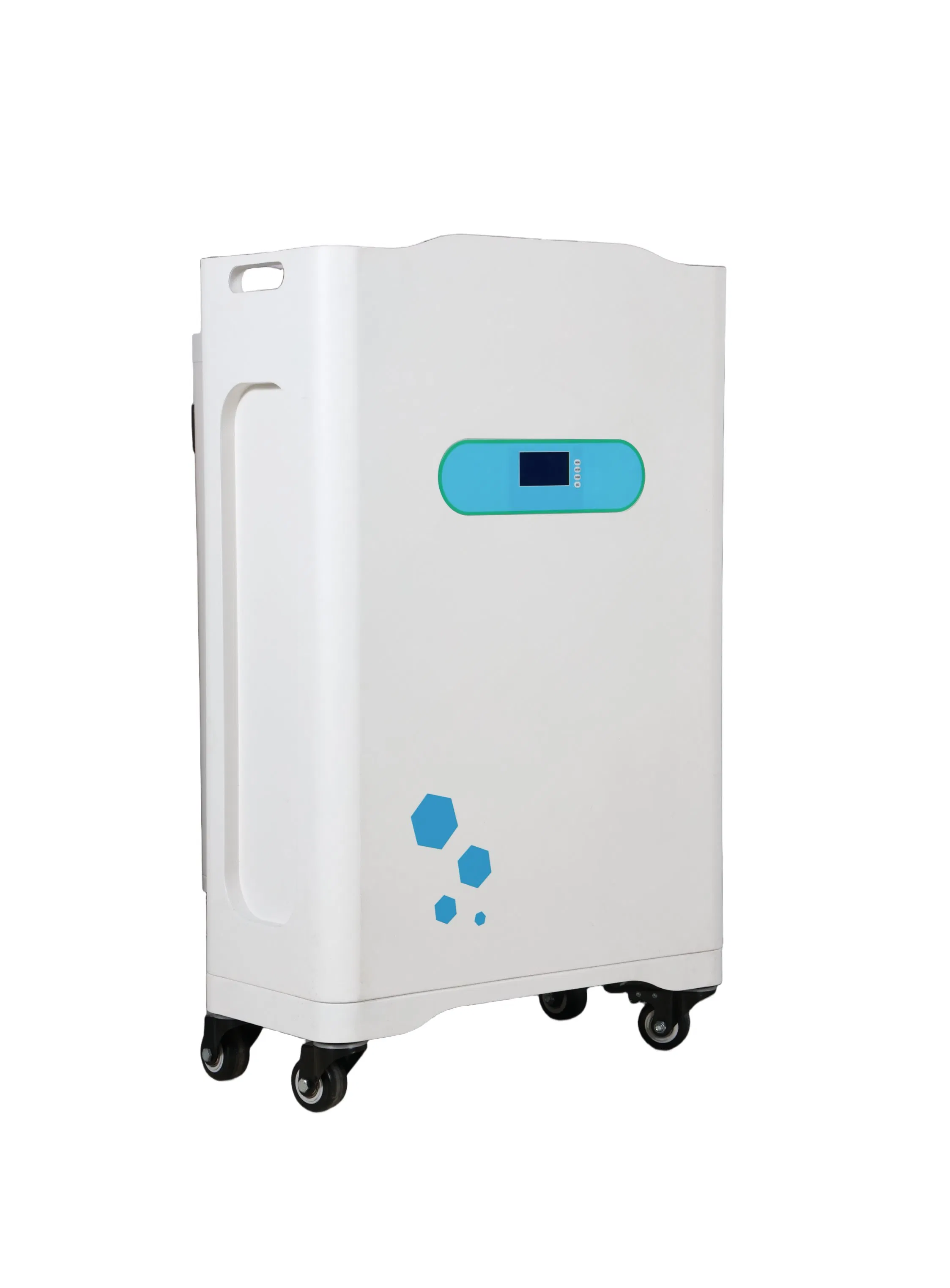

Lithium Battery (LFP)
Model: 48V200AH
Cycle Life: 6000
Design Life: >10 years
Protocols: CAN, RS485

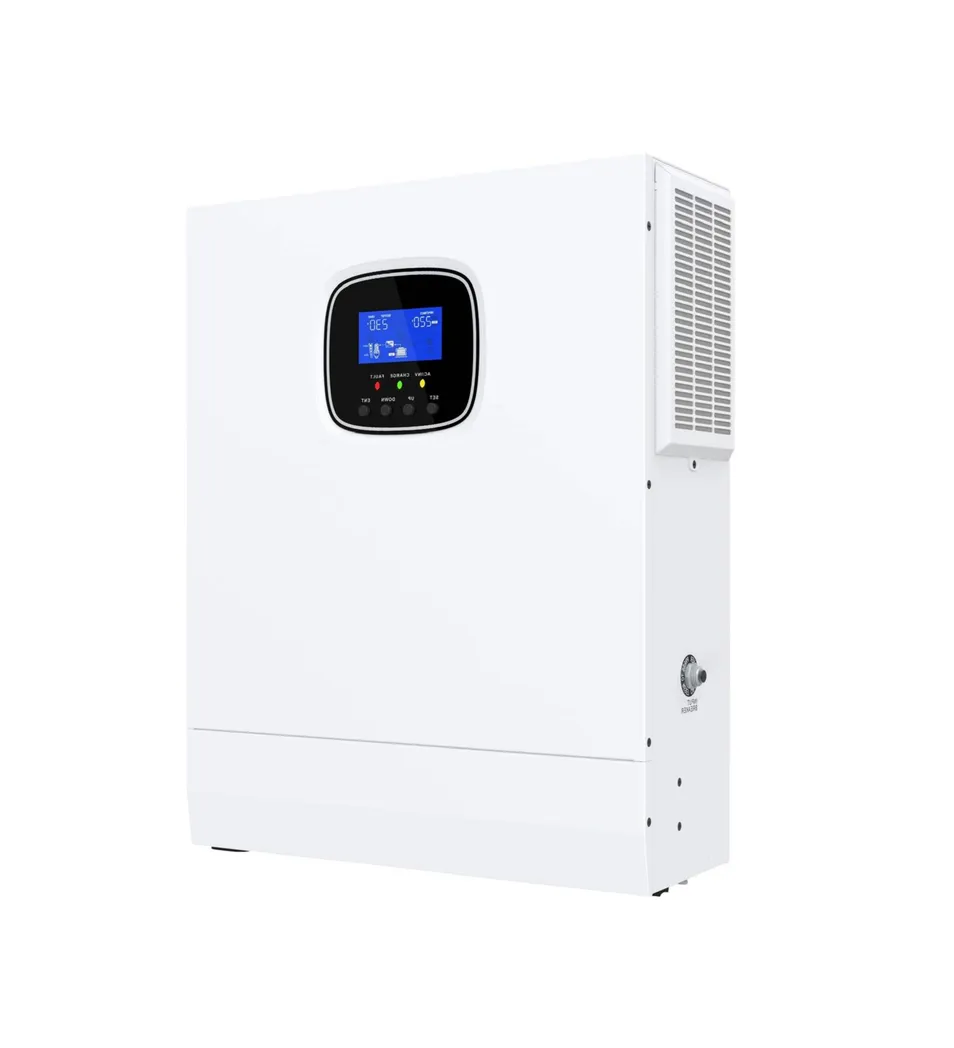

Hybrid Inverter
Model: SEI - 10K - SP
Efficiency: Parallel 1 to 6 units
Protection: IP65
Warranty: 5 Years

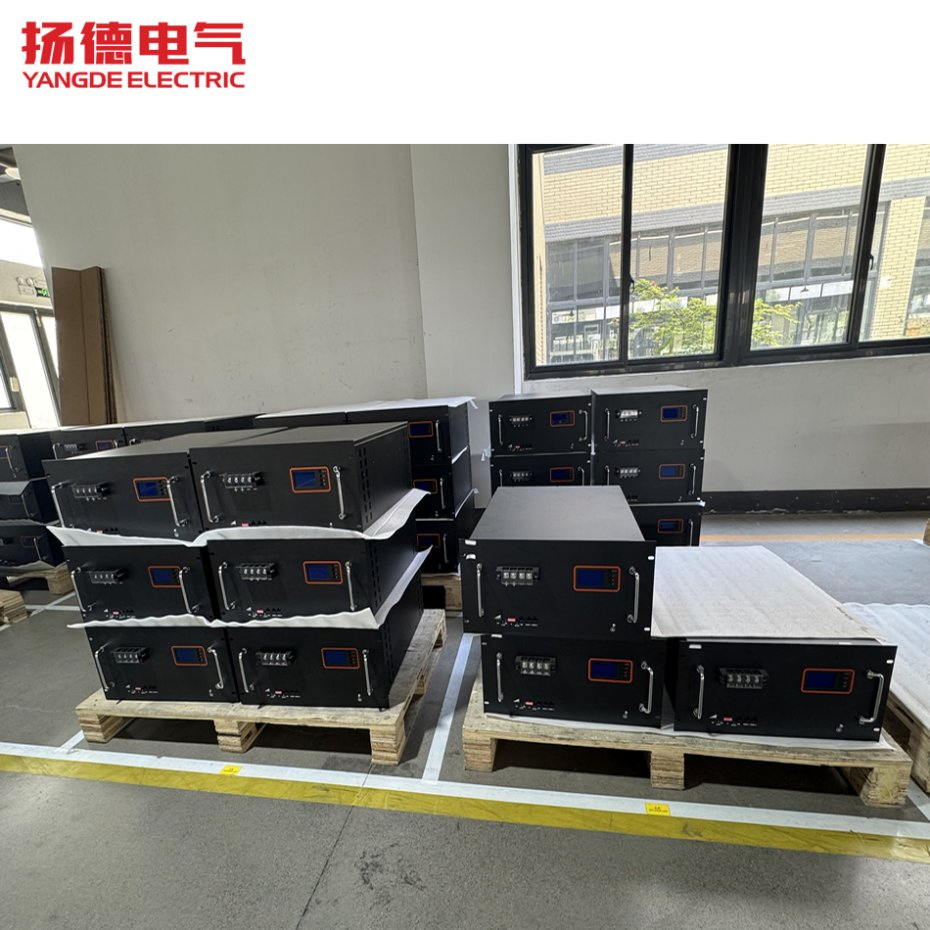

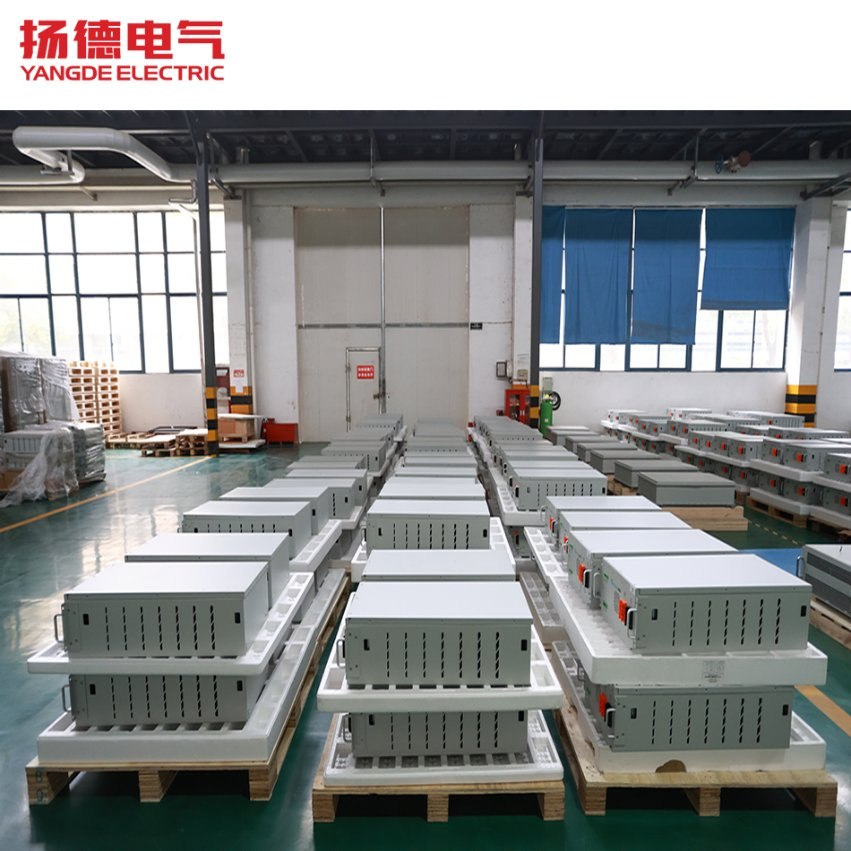

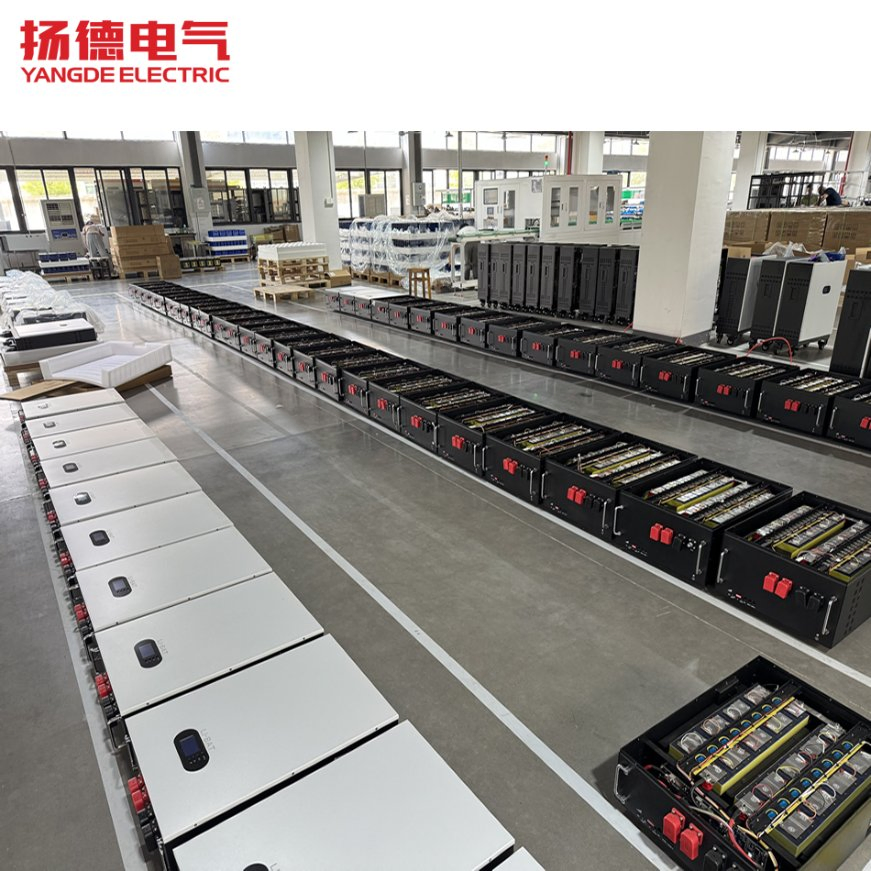

Production & Quality Control
Frequently Asked Questions (FAQ)
Q1: What is the lifespan of the Lithium Battery (LFP)?
A: Our Lithium batteries are designed for over 6000 cycles with a design life exceeding 10 years.
Q2: Can the hybrid inverter be used for grid-connected systems?
A: Yes, the hybrid storage inverter supports both On-Grid and Off-Grid modes for maximum flexibility.
Q3: What is the protection level for the 10KW inverter?
A: It features an IP65 protection rating, making it suitable for various environmental conditions.
Q4: How many solar panels are included in the 10KW system?
A: The standard 10KW configuration includes 16 pieces of high-efficiency Mono N-Type solar panels.
Q5: What safety certifications do the batteries have?
A: Our batteries are fully certified with CE, TüV, IEC62619, UN38.3, and ROHS standards.
Q6: What is the typical lead time for a standard order?
A: For 1-10 sets, the lead time is approximately 25 days. Larger quantities are subject to negotiation.
