Basic Information
Grid Connection
Hybrid Grid
Cooling Method
Intelligent Liquid Cooling
Dimensions
1560*1380*2385mm
ROI & Profit Model
Peak-Valley ArbitrageBuying low-cost electricity during off-peak hours and discharging during peak periods to reduce energy costs.
Load ManagementOptimizing demand to minimize short-term peak loads and lower demand charges.
Demand ResponseEarning economic incentives by supporting grid stability during power shortages.
Backup Power SupplyEnsuring operational continuity during outages for critical industrial loads.
Spot Market ServicesParticipating in frequency regulation and spot trading to boost profits.
Product Advantages
- Safe and Reliable: Emergency backup power ensures continuous operation.

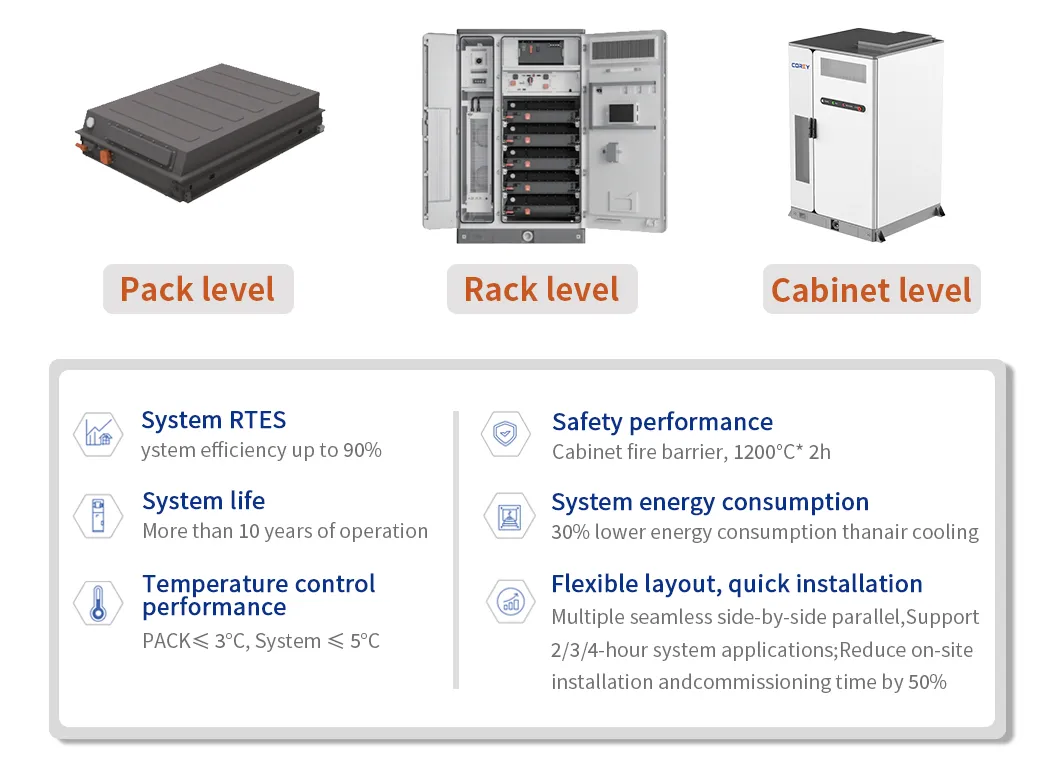

- Flexible Configuration: Modular design for easy expansion and customization.
- High Efficiency: Optimizes energy usage and significantly reduces operational costs.
- Intelligent O&M: Advanced monitoring promotes green energy consumption and lower maintenance.
- Grid-Friendly: Supports seamless grid-connected/off-grid switching.

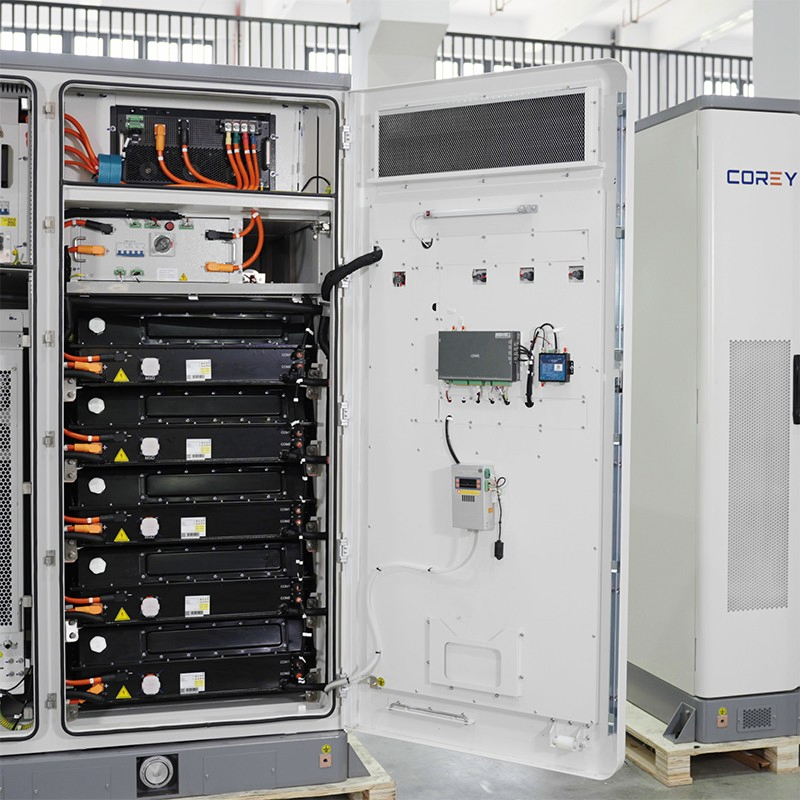

Technical Specifications
| Category |
Parameter |
Specification (COREY 233CE) |
| System | Battery Cell | LFP (LiFePO4) 3.2V 280Ah |
| System Capacity | 233kWh |
| Rated Power | 105kW |
| Fire Fighting | Aerosol + Water Fire Protection |
| AC Side | Rated Voltage | 230V/400V (±15%) |
| Maximum Current | 167A |
| Frequency | 50/60 Hz |
| Operation | Temperature | -20ºC to 50ºC (Discharge) |
| Altitude | 4000m |

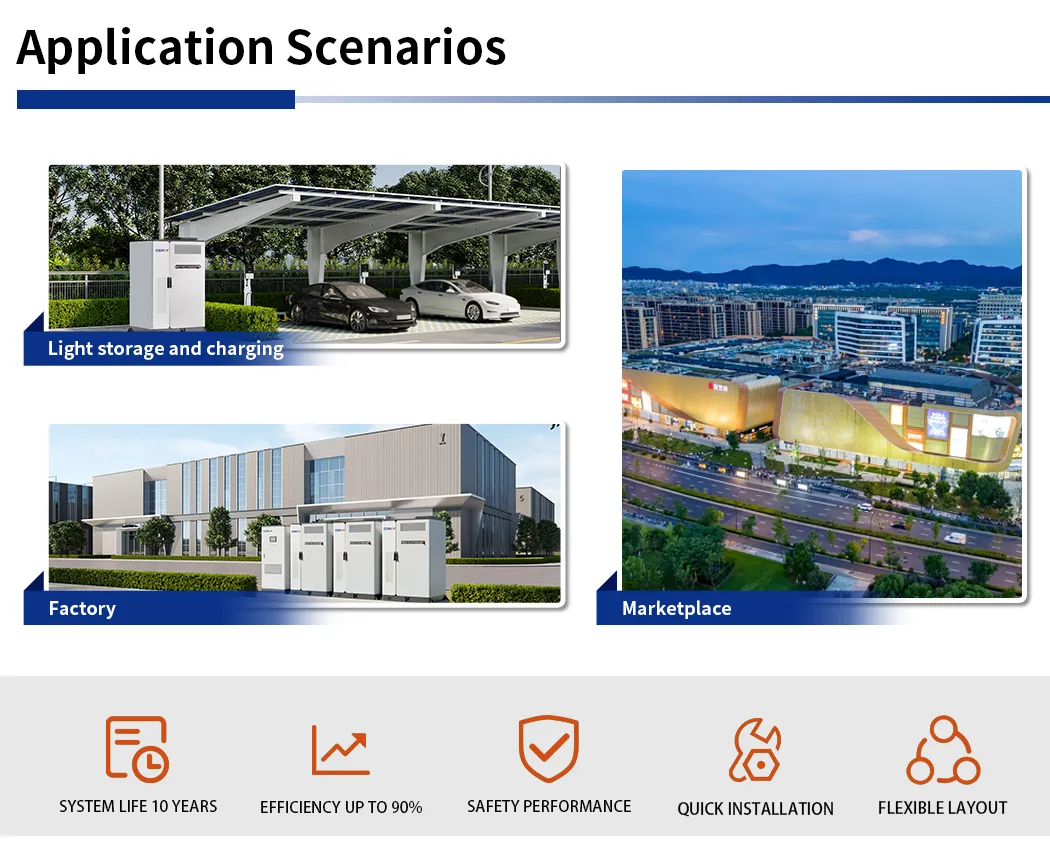

Application & Project Case
Ideal for commercial buildings, factory complexes, remote areas, and regions experiencing frequent power shortages.
About Our Solutions
Dedicated to providing one-stop green power station solutions, including Microgrid, Photovoltaic, and Energy Storage projects. We aim to promote clean energy transformation and help build zero-carbon power systems through stable, safe, and intelligent technology.
Frequently Asked Questions
Q1: What is the lifespan of the battery system?
The system features a cycle life of up to 9000 cycles using high-quality LiFePO4 cells.
Q2: How does the cooling system work?
It utilizes an intelligent liquid cooling system to maintain optimal temperature, ensuring efficiency and safety.
Q3: Is the system safe for industrial environments?
Yes, it is rated at IP54 and includes a multi-level fire protection system (Aerosol and Water-based).
Q4: Can this system be used off-grid?
Absolutely. It supports both on-grid and off-grid modes with an optional switching time of 20ms.
Q5: What certifications does the product hold?
The system complies with multiple international standards including EN 62619, UN38.3, and VDE 4105.
Q6: What is the warranty period?
We provide a standard 5-year warranty for the energy storage system.
