Composed of 5 battery clusters connected to a 500kW PCS via a DC combiner cabinet. The AC400V output is connected through an isolation transformer.
| Project Unit | Rated Voltage | Capacity | Energy | Group Approach |
|---|---|---|---|---|
| Battery Cell | 3.2V | 280Ah | 0.896kWh | / |

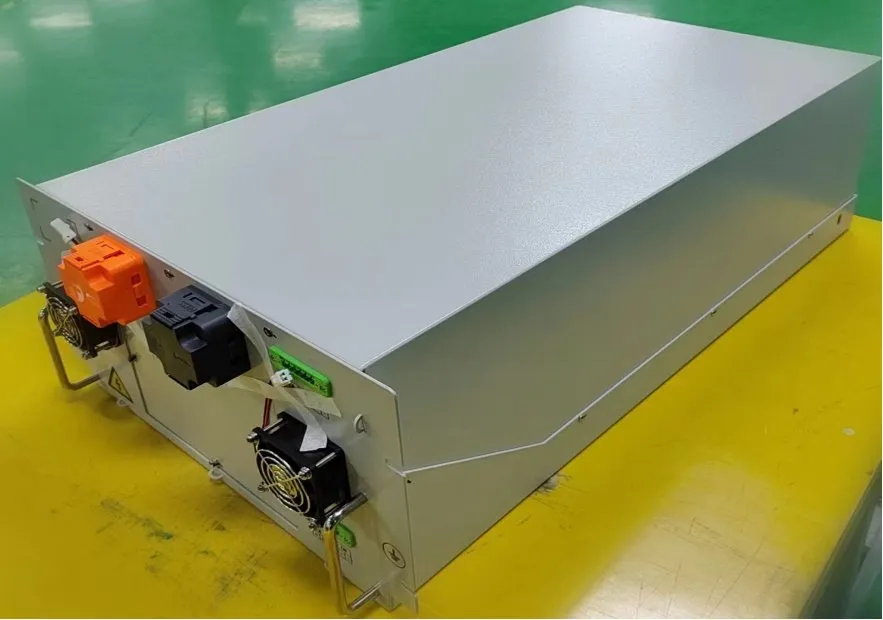

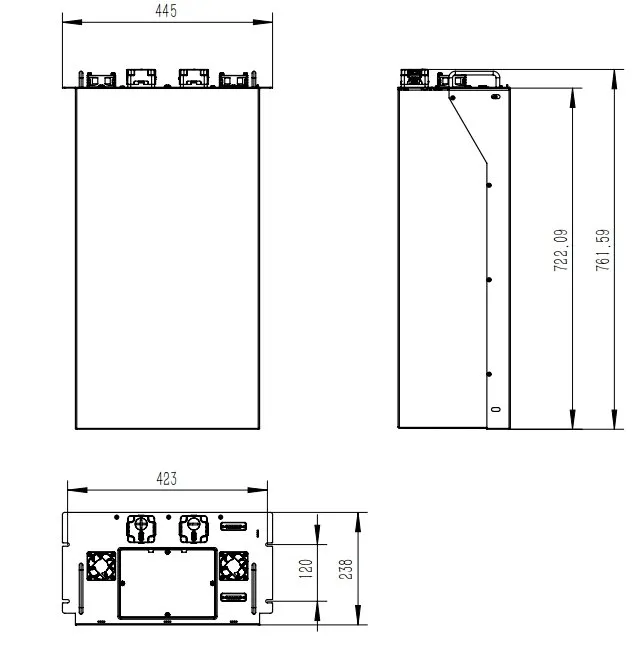

| Battery Box | 51.2V | 280Ah | 14.336kWh | 1P16S |
| Battery Clusters | 768V | 280Ah | 215.04kWh | 1P240S |
| BESS System | 768V | 5*280Ah | 1075.2kWh | 5*1P240S |
| No. | Project | Parameter | Remark |
|---|---|---|---|
| 1 | Nominal Voltage | 768V | - |
| 2 | Nominal Charge | 1075.2kWh | - |
| 5 | Max Charging Power | ~500kW | - |
| 10 | Thermal Management | Air-cooled | 30kW Power |
| 12 | System IP Rating | IP54 | Container |
Utilizes 280Ah Lithium Iron Phosphate (LFP) prismatic aluminum shell cells. These cells feature high energy density and high safety ratings.
Features a 500kW bidirectional converter with isolation transformer and STS quick transfer switch. Supports highly visualized operation status through an HMI touch screen.
Provider of intelligent power industry solutions, enabling utility and industrial operators to optimize system efficiency and sustainability.
The system offers a long service life ranging from 3,000 to 20,000 cycles depending on the specific chemistry (LFP/LTO) and operating conditions.
Yes, the equipment is designed for harsh environments with an operational temperature range of -40℃ to 70℃.
The system includes a 3-level BMS, fire detection, automatic Perfluorohexanone fire extinguishing systems, and an IP54-rated protective enclosure.
The system uses an industrial air-cooled thermal management system with approximately 30kW of cooling power to maintain optimal temperatures.
The BMS and PCS systems support industrial-standard communication including CAN, RS485, and Ethernet ports.
Yes, the energy storage bidirectional converter (PCS) supports both off-grid and grid-connected modes with fast transfer capabilities.
